Accessories and Parts for the Bosch Universal Plus Mixer and Attachments
Bosch Universal Plus |
"Classic" Bosch Universal |
Above: Bosch Universal Plus mixer (Parts are below on this page) |
"Classic" Bosch Universal mixer for parts for the model above . |
(For Bosch Compact-model mixer parts )
(For Bosch Styline Mixer parts )
(Very long page, please scroll down.)
To order parts:
Please click-through to individual item pages, using the "Click for product" links listed below.
Click link below to go to parts section for these Bosch Universal Plus Mixer attachments:
- Standard Bowl & Bowl Parts
- Stainless Bowl (ER2)
- Original Stainless Bowl (ER1)
- Stainless Steel Bowl Parts ("SB4")
- Miscellaneous Parts
- Food Processor Attachment Parts
- Large Slicer Shredder Attachment Parts
- Blender & Blender Parts
- High Speed Drive
- Food & Meat Grinder Attachment and Parts
- Food & Meat Grinder Stainless Sausage Stuffer Set
- Food & Meat Grinder Grater Attachment
- Food & Meat Grinder Pastry Press Attachment
- Food & Meat Grinder Pasta Attachment
- Food & Meat Grinder Berry Press Attachment and Parts
- Flaker Attachment Parts
Complete accessories:
If you want complete accessories for your Bosch Universal Plus mixer, they're available
Important:
Before ordering anything from this page, please be sure you're ordering for the model of mixer that you own. (Check photos at top of page.) Parts on this page are for the new Bosch Universal Plus mixer. (If you have the "Classic" model Bosch mixer, you need to go instead.) Parts for these two mixer lines look very similar, but many are not interchangeable.
Universal Plus Mixer Standard Bowl & Bowl Parts
Repl. Bowl for UPlus, w/Ring+Lid: Click for product.
This is the standard polypropylene bowl, with splash ring and lid and drive shaft. (In-bowl accessories are not included.) One of these bowls is included with every new Bosch Universal Plus mixer. It's listed here in case you want second bowl, or a replacement (because, for instance, someone put yours down on a hot stove burner.) Capacity is 6.5 quarts (approx. 15 lbs. of dough.) This spare/replacement bowl is sold without dough hook, whip drive or whisks, because those pieces from the Universal Plus mixer's standard plastic bowl fit onto this (identical) bowl.
- Bowl Cover for Universal/U-Plus: Click for product.
- Splash Ring for Universal Plus: Click for product
- Insert for Splash Ring for Universal Plus: Click for product.
- Bowl Spur Gear for Universal Plus: Click for product
- Bearing for Bowl for Universal Plus: Click for product.
- Bowl Shell for Universal Plus: Click for product.
- Bearing Brush for Bowl for U-Plus: Click for product.
Item #4 above doesn't look like a typical "brush," but that's what it's called.
Note that a Torx #15 screwdriver tip (not included, but available at most any hardware store) is required to install parts #2 and #4.
Universal Plus Mixer Stainless Bowl (ER2)
Stainless Bowl for Universal Plus: Click for product.
The Stainless Steel Bowl (MUZ6ER2) for the Bosch Universal Plus mixer has a polypropylene center drive shaft column, enabling the Universal's standard wire whisks and BreadMaster dough hook (as well as the new accessory cookie paddles) to be used in it. Capacity is 6.5 quarts (approx. 15 lbs. of dough.) This bowl is sold without dough hook whip drive or whisks, because those pieces from the Universal Plus mixer's standard plastic bowl fit onto this bowl. Fits on the Universal Plus mixer's low speed drive (the same place the standard plastic bowl mounts.) The drive shaft detaches in seconds from below for quick, easy cleanup.
Important note: If you have the older model Universal mixer, Model 6622 or 6610 or previous, do not order this bowl because it would not fit your older mixer.
Universal Plus Mixer Stainless Bowl Parts (ER2)
Column & Gasket for MUZ6ER2: Click for product.
Undercarriage for MUZ6ER2: Click for product.
Bearing for Bowl for MUZ6ER2: Click for product.
- Bowl Cover for Universal/U-Plus: Click for product.
- Splash Ring for Universal Plus: Click for product
- Insert for Splash Ring for Universal Plus: Click for product.
Universal Mixer Original Stainless Bowl (ER1)
ER1 bowl complete: Click for product.
This Original-Style Stainless Steel Bowl (model MUZ6ER1) uses a special dough hook that drives from the bottom of the bowl. This bowl comes with its own dough hook, which does an outstanding job of kneading. The bottom-drive design provides a little extra dough capacity because there is no center column as in the standard bowl. Capacity is 6 quarts (approx. 14 lbs. of dough). This stainless bowl also includes splash ring and center cover. The bowl fits on the Bosch Universal Mixer's low speed drive (the same place the standard plastic bowl mounts.) Whips, whisks and cookie paddles cannot be used with this bowl because it's built without the center drive column. The bottom drive shaft pops out of its socket with a smack from the palm of your hand, for easy cleaning. Putting a drop of vegetable oil on the O-rings after washing will make them last a long time.
Note: To use this bowl on the Universal Plus, you'll need to use some small rubber bumpers to prevent wobble ( .)
Universal Mixer Original Stainless Bowl Parts (ER1)

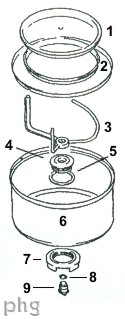

Above: ER1 bowl parts
Tip: The Drive Pin (item #9) can be removed from this bowl by simply pushing or tapping from inside the bowl. It should be removed and washed after each use. Allow it to dry and lubricate it with a drop or two of vegetable oil before reinstalling.
1. Bowl Cover for Universal/U-Plus: Click for product.
This cover fits recent-production bowls which have retaining pins on inside of the metal bowl-top. Bowl cover is no longer available for older model having retaining pins on the outside of the metal bowl-top.
2. Splash Ring for Universal: Click for product.
This splash ring fits recent-production bowls having retaining pins on inside of the metal bowl-top. Splash ring is no longer available for older model having retaining pins on the outside of the metal bowl-top.
3. Dough Hook for Original-Style Stainless Bowl: Click for product.
The complete bowl with hook can still be purchased here.
4. Bushing for Orig. Stainless Bowl: Click for product.
The bowl's drive pin (item #9 below) turns inside this bushing. After extended use the bushing can become worn and contribute to leakage. If you need to replace this bushing, Bosch recommends also replacing the upper gasket (item #5 below) and the lower gasket (item #8 below) at the same time. If you replace your bushing and if your old nut (item #7 below) is made of stainless steel, you will need to purchase item #7 (the nut) because your old stainless nut will not work with the current-production replacement bushing.
5. Upper Gasket (4) Orig. Stainless Bowl: Click for product.
This item is a pkg. of 4 of these gaskets. Reassemble tightly to prevent leakage. If you need to replace the bowl’s bushing (item #4 above) after years of use, replacement of this gasket is important even if the existing gasket doesn’t look bad, because hardening of the gasket over time will make leakage likely after reassembly.
6. Bowl shell: (Discontinued by Bosch)
7. Nut for Orig. Stainless Bowl: Click for product.
8. Lower Gask (3), Orig. Stainless Bowl: Click for product.
This item is a pkg. of 3 of these gaskets. If this gasket becomes excessively worn, the bowl will leak. Bosch recommends frequent replacement of this gasket, but keeping the gasket lubricated with a drop of vegetable oil will dramatically extend its life. Failure of this gasket is the most common cause of leakage for this bowl. However, wear to two other parts, the bowl’s Bushing (item #4 above) and the Upper Gasket (item #5 above) can also cause leakage, so those parts may also need to be replaced if your bowl leaks.
9. Drive Pin, Orig. Stainless Bowl: Click for product.
In almost all instances when this Drive Pin needs to be replaced due to wear, to prevent leakage items #4, #5 and #8 also must be replaced at the same time. (Also note the availability of the parts combo set listed just below.)
Parts combo set: Click for product.
The parts combo set includes items 4, 7 & 9 in image, plus upper and lower gaskets (one of each.)
Universal Mixer Stainless Steel Bowl Parts ("SB4")
The SB4 bowl with non-locking mount that fit the Bosch Universal and Bosch Classic mixers is discontinued. Some parts for the SB4 bowl are available below.
The Stainless Steel Bowl (MUZ6SB4) for the Bosch Universal Plus mixer has a polypropylene center drive shaft column, enabling the Universal's standard wire whisks and BreadMaster dough hook (as well as the accessory cookie paddles) to be used in it. Capacity is 5.5 quarts (approx. 12.5 lbs. of dough.) This bowl is sold without dough hook, whip drive or whisks, and those pieces from the Universal mixer's standard plastic bowl (new or older models) fit onto this bowl. This bowl fits on the Universal mixer's low speed drive (the same place the standard plastic bowl mounts.) The drive shaft detaches in seconds from below for quick, easy cleanup.
1. Drive Shaft Assembly for SB4 Bowl: (Discontinued by Bosch)
2. Center Column for SB4 Bowl: (Discontinued by Bosch)
3. Gasket for SB4 Bowl: Click for product.
4. Undercarriage for SB4 Bowl: (Discontinued by Bosch)
Universal Mixer Miscellaneous Parts
Dough Hook for Universal mixers: Click for product
This dough hook fits both the Bosch Universal Plus and Universal Classic mixers. We recommend hand washing to keep the finish nice.
Drive Shaft Assembly for Universal Plus: Click for product. (This complete shaft assembly is shipped fully assembled.)
- Metal Whip Drive for Universal/U-Plus: Click for product.
- Repl. Wire Whips, Pair (Univ./Concept): Click for product.
- Batter Whisks, Pair (Univ./Concept): Click for product.
Whips, Whisks & Whip Drive: Bosch recommends using the new Cookie Paddle accessory (directly below on this page) for mixing non-pourable batters. The Wire Whips and Batter Whisks are not warranted against breaking or bending because the Bosch motor is strong enough to easily bend them in heavier materials.
Cookie Paddles, pair: Click for product.
Cookie Paddles: Bosch recommends using the wire whips and batter whisks (which are shown above) for pourable batters. Heavier cookie batters can be mixed with your Universal dough hook, but now you have the ideal option: The cookie paddles for the Bosch Universal mixer, manufactured by the U.S. Bosch importer! These snap onto the metal whip drive piece—that's the oval-cone shaped part that fits down onto the top of the bowl's center shaft, which has two axle pins that point downward into the bowl. The cookie paddles are warranted against defect by the manufacturer for 1 year. This is a very useful accessory, highly recommended! (NOTE: If you have the newer "Universal Plus" model of mixer with the white colored whip drive, you will need to purchase the set of paddles that's packaged with a metal drive to use them on. You can see that package here.)
"Qty. 1" for this item means a pair of paddles, and does not include the metal drive they attach to.
Cake Paddles, Pair: Click for product.
These new cake paddles attach to the metal whip drive of the Bosch Universal Plus (or older style Bosch Classic) mixer, for use when making cake and quick bread batter as well as other pourable batters and frosting. They let you make better cake because they avoid incorporating too much air into the batter.
If your Bosch mixer has a metal whip drive, these cake paddles will snap right onto it. If you have an older mixer with a plastic whip drive, you will need to instead order the cake paddles together with a metal whip drive, directly below.
Cake Paddles with Metal Whip Drive: Click for product.
These are the same cake paddles as shown above, but with the metal whip drive included. If you have an older mixer with a plastic whip drive, you will need to order the cake paddles together with a metal whip drive.
Bowl Scraper for Universal Plus: Click for product.
This new L'Equip accessory automates bowl scraping by operating continuously while the mixer runs. It snaps easily over the top of the whip drive piece (it works with either the metal or the plastic whip drive.) It can be used in conjunction with the cookie paddles, the wire whips, or the batter whisks. One arm scrapes the bowl shaft, the other scrapes the bowl side. Comes with two sets of scraper blades. FDA compliant (food safe) & BPA free. The Bowl Scraper works with the newer Universal Plus mixer as well as the older Bosch "Classic" mixer from earlier years. Full one year warranty from L'Equip.
Blades for Bowl Scraper for Universal Plus: Click for product.
Replacement blades for Bosch mixer bowl scraper.
Dough Hook Extender for Bosch Universal: Click for product.
The new Dough Hook Extender accessory for the Bosch Universal mixer is placed under the dough hook and fits snugly against it. The extender sweeps the center column, allowing as little as one to two loaves of bread to be perfectly kneaded. It fits the Universal Plus and also fits older models of the Bosch Universal mixer.
Protective Cover for Universal Plus: Click for product.
This is the cap that covers the blender-mounting spot when no accessory is being used there. Without either an accessory or else this cover in place, a safety lockout switch prevents motor operation.
Rubber Foot for Universal Plus: Click for product.
This is the suction-cup foot for under the base of the Universal Plus mixer. Sold individually. Disassembly is not required to replace these: Just push up into place and give the foot a quarter-turn.
Rubber Bumper for U-Plus Rear: Click for product.
This is the rubber bumper-pad on the back side of the Universal Plus mixer. Sold individually. When you use accessories like the meat grinder, the motor base is turned on its back and these bumpers then serve as the machine's feet.
Knob for Universal Plus Mixer: Click for product.
This is the knob for the Universal Plus mixer, and it includes the spring that fits inside the knob. It does not include the electric switch inside the mixer.
Slicer Shredder Attachment
The TS5 Slicer Shredder has been discontinued by Bosch, but some parts are still available.
for parts for the TS5 Universal Slicer-Shredder attachment.Universal Mixer Food Processor Attachment Parts
Above: Parts for the Food Processor attachment for Bosch Universal mixer
Above: The Food Processor base with handle is not sold separately.
- Pusher for Bosch Food Proc. Attach: Click for product.
- Cover for Bosch Food Proc. Attach: Click for product.
- Blade for Bosch Food Proc. Attach: Click for product.
- Bowl for Bosch Food Proc. Attach: Click for product.
- Grating Disk for Bosch Food Proc: Click for product.
- Slicing Disk for Bosch Food Proc: Click for product.
- Reversible Grating Disk for Bosch Food Proc. Attach: Click for product.
- Disk Holder for Bosch FP Attach: Click for product.
- Univ. Blender/Proc. Drive Coupling: Click for product.
Note: Before ordering disks, be certain whether you have the "Food Processor" attachment or the "Slicer Shredder" attachment. The "Food Processor" has 5-cup capacity and mounts on the high-speed drive shaft of the Universal (the same place where the blender fits onto.) The "Slicer Shredder" has 12-cup capacity and mounts on the low-speed drive shaft of the Universal mixer (the same drive that the large dough-mixing bowl fits onto.) Disks shown here are for the "Food Processor" only.
Another distinguishing feature between the "Slicer Shredder" and the "Food Processor" is that the bottom-running blade shown above (item labeled "3") will NOT fit into the "Slicer Shredder" attachment.
If you need disks for the "Slicer Shredder" attachment,
Please exercise caution when handling these parts... the cutting edges are VERY sharp!
Notes about disks:
Item #5, the Grating Disk, is for fine shredding.
Item #6, the Slicing Disk, is reversible for thick and thin slicing.
Item #7, the Reversible Grating Disk, is reversible for medium and coarse shredding.
Large Slicer Shredder Attachment Parts
Plastic Parts Pack for LS1 Slicer Shredder: Click for product.
This replacement pack for the large slicer shredder attachment includes the drive pin cap, drive pin, blade support pads (6), blade driver, and drive couplings (long and short). This pack does not include the bowl inlet/cover. The bowl inlet/cover is available directly below. Part #332130.
Bowl Inlet/Cover for Large Bosch Slicer Shredder: Click for product.
This is a replacement cover for the large slicer shredder attachment. Part #332110.
Splash Ring for Large Bosch Slicer Shredder: Click for product.
This is a replacement splash ring for the large slicer shredder attachment. Part #332100.
Pusher for Large Bosch Slicer Shredder: Click for product.
This is a replacement pusher for the large slicer shredder attachment. Part #332120.
Universal Plus Mixer Blender & Blender Parts
Important notes about blender parts:
- The individual replacement parts below fit only the New Style blender for the Bosch Universal Plus mixer. (Click here to jump to page-top to identify your mixer model.)
- The Complete New Style blender pictured just below will fit any Bosch Universal mixer, regardless of mixer model or age. (This includes the Classic Universal and the Universal Plus.)
Blender Complete for U-Plus Mixer: Click for product.
Before getting into parts for the blender, here's the complete attachment. It comes with carafe, blade assembly, lid and funnel cap... the whole works... and this blender will fit onto any Bosch Universal mixer model, regardless of the age of the Universal. If part of your blender has failed due to sheer age and/or lots of use, you might be wise to replace the whole thing. Tip: The blender lid doubles as a handy "wrench" that makes removal and replacement of the blade assembly fast & easy, but remember that rather than unscrewing all the way, you just give it a quarter-turn, then it pulls straight out easily.
Note: If you’re replacing an older blender, please be sure to check the condition of the High Speed Drive (HSD) piece, which is attached to the top of your Universal mixer and drives the blender. In most cases, if your blender is due for replacement, then the HSD is also very worn and needs to be changed at the same time. Putting a new blender onto a worn-out HSD will result in rapid wear and failure of the drive coupling on a new blender, and Bosch doesn’t warrant the blender coupler against abuse of that nature. The High Speed Drive is a user-replaceable part, and it's available here; you can judge the condition of your HSD by comparing it to the photo on that page. The three teeth of the HSD need to come all the way up to the top of the HSD; if they’re rounded-off, it needs to be replaced.
Blender Blade Wrench: Click for product.
The Blender Blade Wrench helps you to easily remove the blade from your Bosch Universal Plus or Classic blender, L'Equip RPM blender, or Bosch Compact blender. It's not a necessity, but it increases the torque you can apply and it's great for those with joint pain.
1. Blender Funnel for MX3 Blender (Univ. Plus): Click for product.
2. Lid for Univ Plus Blender (no funnel): Click for product.
3. Carafe for Univ Plus Blender: Click for product.
4. Bldr Gaskets (Qty. 2) (Metal Univ/Conc/Comp): Click for product.
These gaskets fit Universal blenders having metal blade assembly hubs. The blade assembly hub is the cone-shaped part which the blades and blade shaft are mounted in. If your blender blade assembly hub is plastic instead, then see the gaskets listed immediately below.
5. Blndr Gaskets (Qty. 2) for Plastic-Base Univ: Click for product.
These gaskets fit Universal blenders having plastic blade assembly hubs. The blade assembly hub is the cone-shaped part which the blades and blade shaft are mounted in. (If your blender blade assembly hub is metal instead, then see the gaskets listed immediately above.) After installing new gasket on your blade assembly, to reinstall the blade assembly in the carafe, hold the blender carafe straight upright while looking downward through the carafe and inserting the blade assembly into the base of the carafe. This technique will help prevent the the blender from being knocked out of position during reinstallation.
6. Metal Blade Assy for Univ Blender (includes a gasket): Click for product.
7. Univ. Blender/Proc. Drive Coupling: Click for product.
Universal Mixer High Speed Drive
Univ. High Speed Drive: Click for product.
This is the piece that drives the blender. It's pictured both on and off the mixer. Your old one can be pulled off with a pliers, and the new one will press onto the shaft by hand. Be sure to align the flat parts of its socket with the flat parts of the shaft, and push hard so it goes on all the way.
If you need a new one of these, be sure to inspect your "Blender Coupler" (it's the item listed last in the list above, SKU WJ952)... because the most common cause of failure of the High Speed Drive is deterioration of the Blender Coupler. You'll ruin your new High Speed Drive if you put a blender on it that has a bad Blender Coupler, and Bosch doesn't warrant the HSD against abuse of that nature.
Universal Mixer Food & Meat Grinder Attachment and Parts
Complete Food & Meat Grinder: Click for product.
Before getting into attachments and parts for the Universal Food and Meat Grinder, here's the complete attachement. The Food and Meat Grinder attachment for the Bosch mixer grinds and minces meats, vegetables, virtually any food. It comes with a 4.5 mm disk for general use and many more sizes are available to achieve any desired consistency. A stomper is included to feed meat or other foods down the chute. The Universal mixer (not included) is turned onto its rear-mounted rubber feet, as shown, to operate the grinder. The Meat Grinder attachment also fits the Bosch Universal Classic Mixer.
Threaded Ring for Bosch Univ. Meat Grinder: (Discontinued by Bosch)
Universal Meat Grinder Filling Tray: Click for product.
Univ. Meat Grinder Pusher: Click for product.
Univ. Meat Grinder 5 Inch Leg: Click for product.
This support leg comes standard with the Universal Meat Grinder attachment. This leg works with the Bosch Universal Plus mixer. If you have an older style Bosch Universal mixer you'll need a shorter leg, which you can find here.
When you purchase the Meat Grinder attachment for the Bosch Universal mixer, a four-bladed knife is included. Additional blades are available in either four-blade or two-blade configuration. The two-bladed knife makes larger chunks than the four-bladed knife.
Universal Meat Grinder Four-Bladed Knife: Click for product.
Universal Meat Grinder Two-Bladed Knife: (Discontinued by Bosch.)
Univ. Meat Grinder Disks, 2mm-13mm: Click for products.
When you purchase the Meat Grinder attachment for the Bosch Universal mixer, it includes a 4.5 mm disk, a good size for making hamburger. (The millimeter size refers to the diameter of the holes in the disk.) The small 2 mm disk is for mincing. For large chunks, use the 8 or 13 mm disks. Available in 2mm, 3mm, 4.5mm, 6mm, 8mm and 13mm. Meat grinder disks are also referred to as meat grinder plates.
Universal Mixer Food & Meat Grinder Stainless Sausage Stuffer Set
Above: Univ. Meat Grinder Stainless Sausage Stuffer set
Univ. Meat Grinder Stainless Sausage Stuffer set: (Discontinued by Bosch.)
Three sizes of stainless steel sausage extruding tubes. These heavy duty stainless tubes are 5" long with 9/16", 7/8" and 1-1/4" tips. They fit onto the Meat Grinder attachment for the Bosch Universal Mixer, both sold separately.
Universal Mixer Food & Meat Grinder Grater Attachment
Univ. Meat Grinder Grating Attachment: (Discontinued by Bosch.)
This grater for nuts, hard cheeses and spices fits onto the Meat Grinder attachment for the Bosch Universal Mixer, both sold separately.
Universal Mixer Food & Meat Grinder Pastry Press Attachment
Above: Pastry Press attachment
Univ. Meat Grinder Pastry Press attachment: (Discontinued by Bosch)
The Pastry Press makes 4 different fancy shapes of shortbread cookies. Shapes included are: 22mm ridged ribbon, 15mm six-point star, 12mm six-point star, and 8mm round. It fits onto the Meat Grinder attachment for the Bosch Universal mixer, both sold separately.
Universal Mixer Food & Meat Grinder Pasta Attachment
Above: Univ. Meat Grinder Pasta attachment
Univ. Meat Grinder Pasta attachment: (Discontinued by Bosch)
These extrusion dies form eleven different shapes of pasta. This set fits onto the Meat Grinder attachment for the Bosch Universal Mixer, both sold separately. It consists of extrusion dies and an auxiliary nose piece and auger that screw onto the end of the grinder. Dies are included for wide noodles, rigatoni, spaghetti, pasta shell, small linguini, ribbon, macaroni, large linguini, spiral, rotini (twist), and lasagna. Bosch includes three recipes with the disk set, and we include two more to get you started.
Universal Mixer Food & Berry Press Attachment Parts
Univ. Meat Grinder Food & Berry Press attachment: (Discontinued by Bosch)
This cone style juicer is very effective for apples, pears, tomatoes, grapes, blackberries, raspberries and more. It strains skin, pulp and pits, separating the juice for wines, jellies or sauces. The juicer will separate apple juice, and also makes applesauce from cored & cooked apples. It fits onto the Meat Grinder attachment for the Bosch Universal Mixer. Meat Grinder sold separately.
- Cover for UFBP: (Discontinued by Bosch)
- Pressure Plate for UFBP: Click for product.
- Strainer for UFBP: (Discontinued by Bosch)
- Adjusting Screw for Bosch UFBP: (Discontinued by Bosch)
- Worm, Fruit Pulper for UFBP: (Discontinued by Bosch)
This cone style juicer is very effective for apples, pears, tomatoes, grapes, blackberries, raspberries and more. It strains skin, pulp and pits, separating the juice for wines, jellies or sauces. The juicer will separate apple juice, and also makes applesauce from cored & cooked apples. It fits onto the Meat Grinder attachment for the Bosch Universal Mixer. Meat Grinder sold separately.
Universal Mixer Flaker Attachment Parts
Family Grain Mill knurler roller for direct fit Bosch Universal flaker attachment. Made out of hardened surgical steel.
Complete accessories for your Bosch Universal Plus mixer can be found
Above: Bosch Universal Plus mixer (Parts are on this page)
Above: "Classic" Bosch Universal mixer. If you need parts for the mixer above, then this is the wrong page! (For parts for the mixer above,
)
