Hippo Hammer Mill No. L63 with Motor

SKU: EP257, Part Number: Hippo L63, Shop more Hippo items
Rating:
98%
Please email or call for lead time and pricing.
Please call to order.

View our business hours

Why Buy from PHG?

  • Quality, curated product selection
  • Prompt, personal customer service
  • 100% satisfaction guarantee
Accepted credit cards
Canadian orders by phone!Canadian orders by phone
  • High speed milling
  • Wide range of screen sizes
  • Cast iron wear sections
  • Bennox hammer tips
  • Precision manufactured
  • Proven design
  • Highly affordable

Description

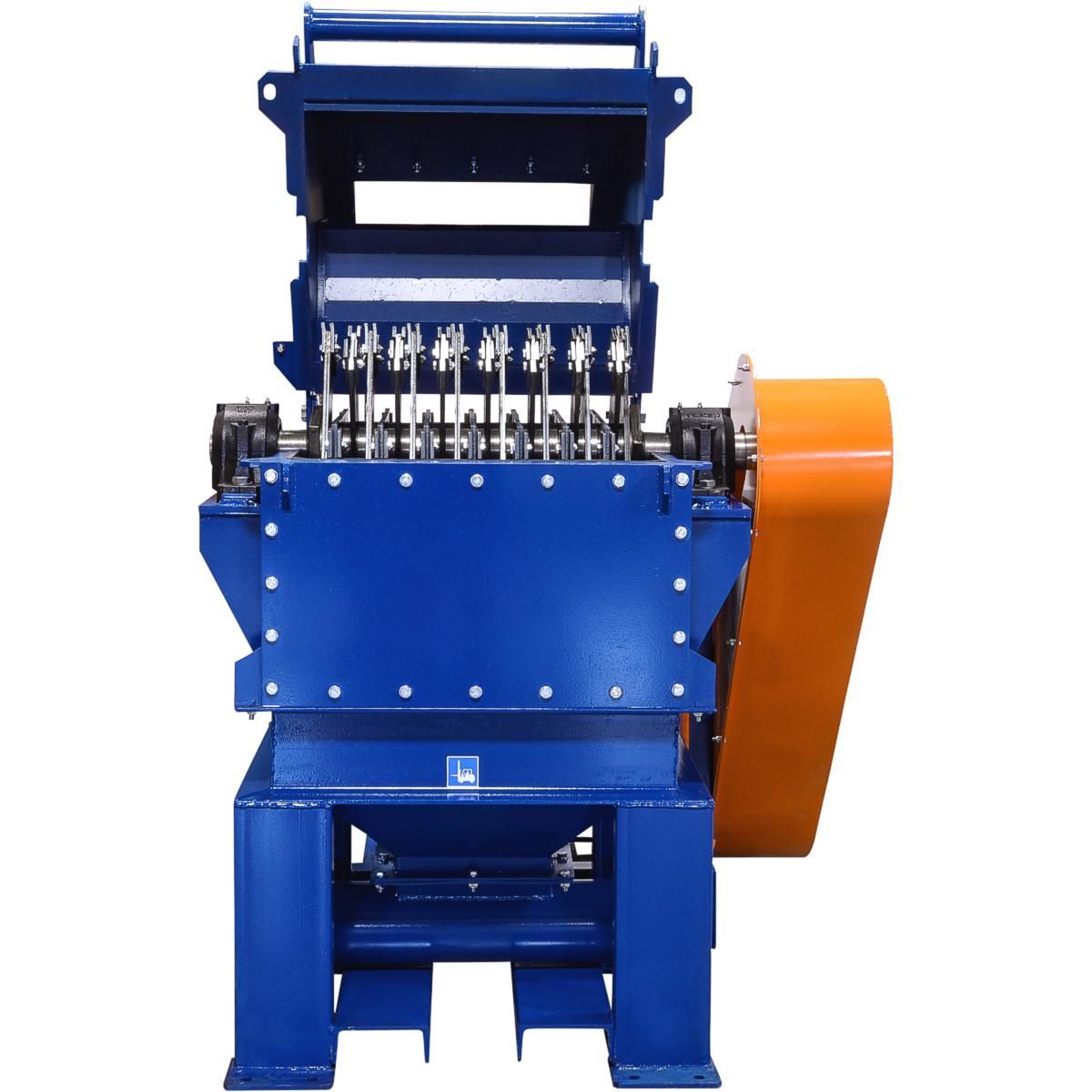

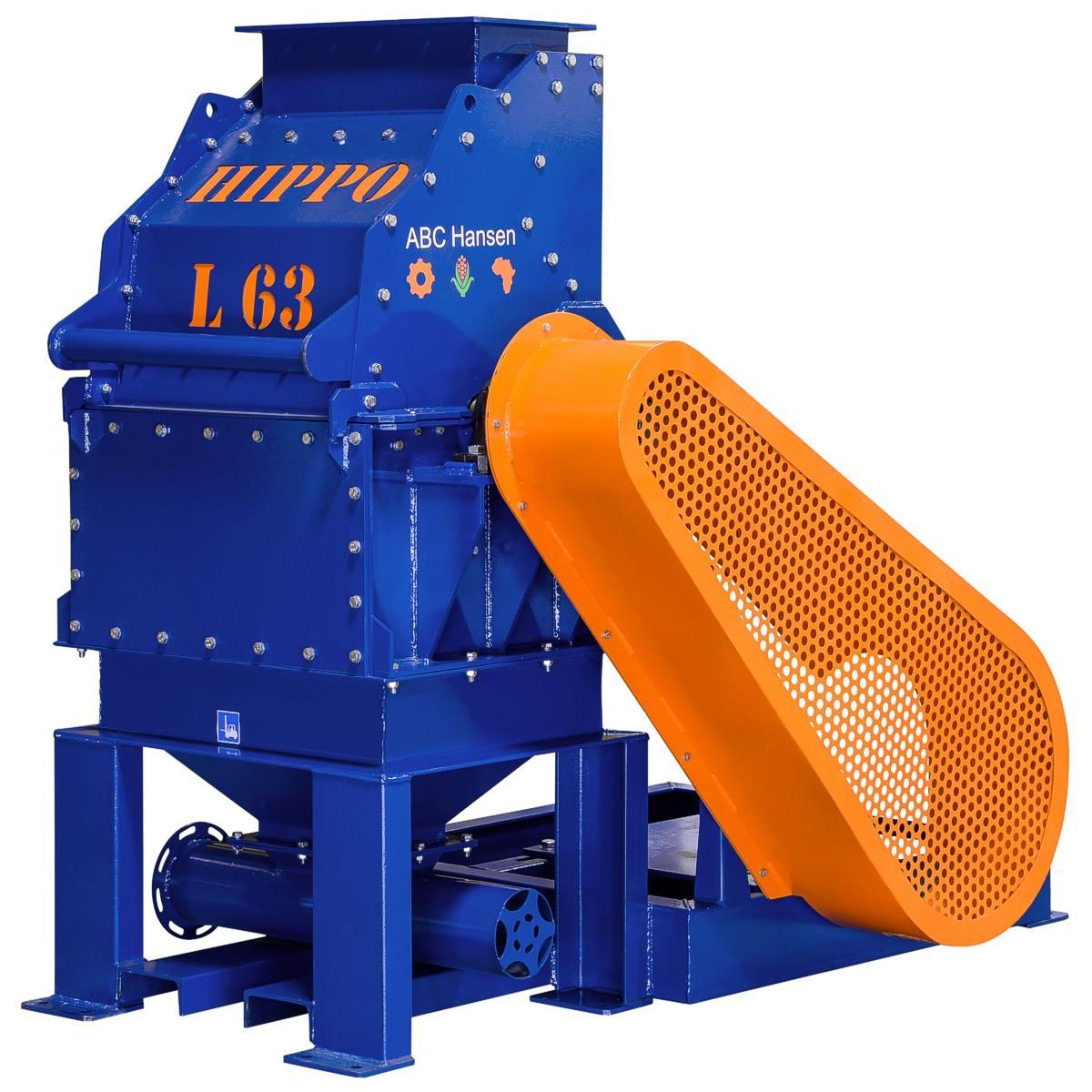

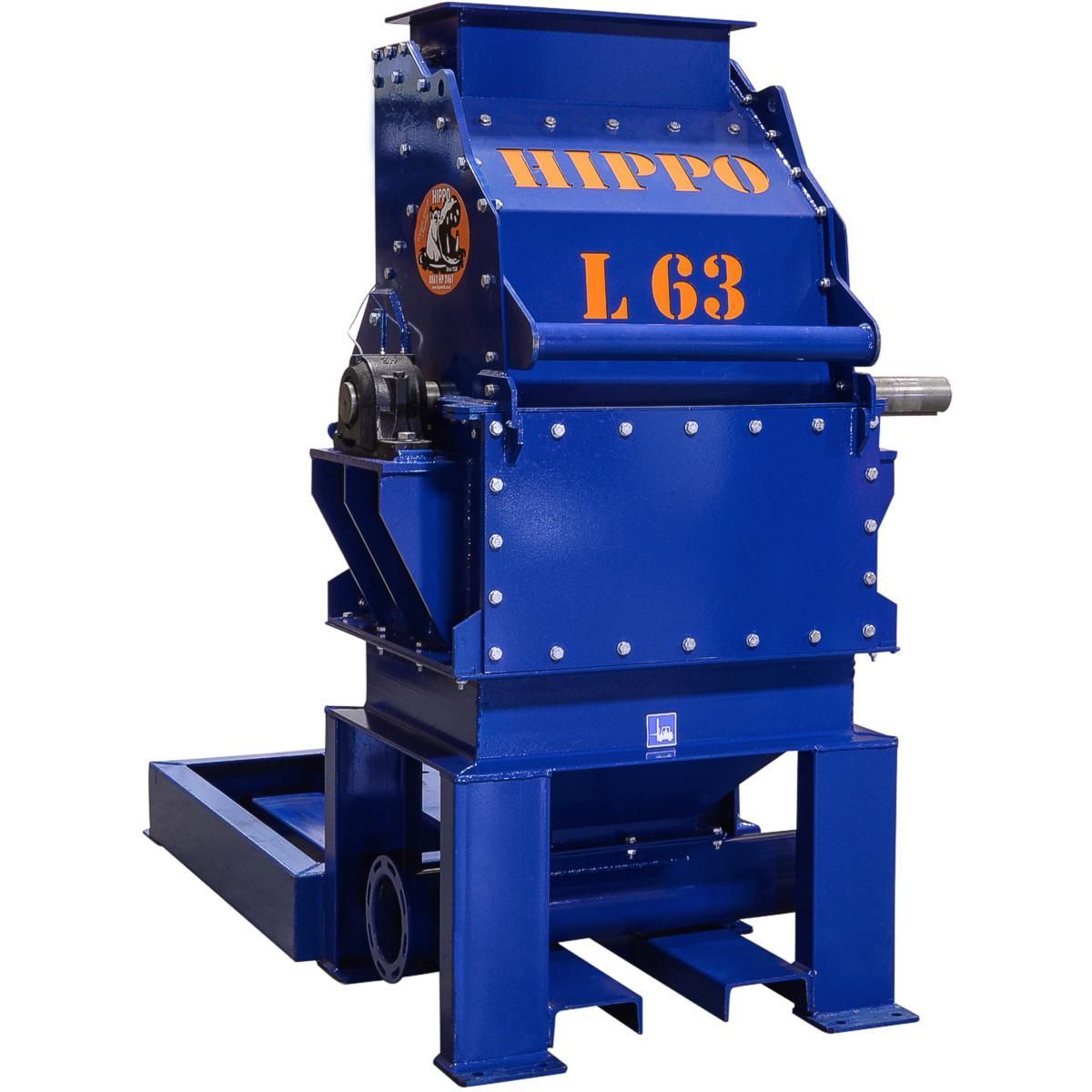

Hippo No. L63: Hammer Mill Grinder

Hippo hammer mills rapidly pulverize a wide range of materials from grain, beans, herbs and fibrous roots to minerals, plastics, glass, bone and recyclables. Materials enter the milling chamber and are impacted by hammers rotating at high speed. Size reduction occurs until particles can exit through the holes of a perforated screen covering the discharge. Interchangeable screens offer hole sizes ranging from 0.6mm to 25mm.

As a result of hammer milling, in addition to particle size reduction some materials (glass bottles and lobster shells, for example) experience a high degree of bulk reduction, creating storage and transport efficiencies.

Milling chambers are constructed of high strength cast iron plates with bolted construction that eliminates common stress points to prevent cracking. After extended use, this method of construction allows fast, easy, on-site replacement of worn parts. Built for the demands of commercial and industrial grinding, Hippo hammer mills are fast, efficient and durable, and their low cost won't break your material processing budget.

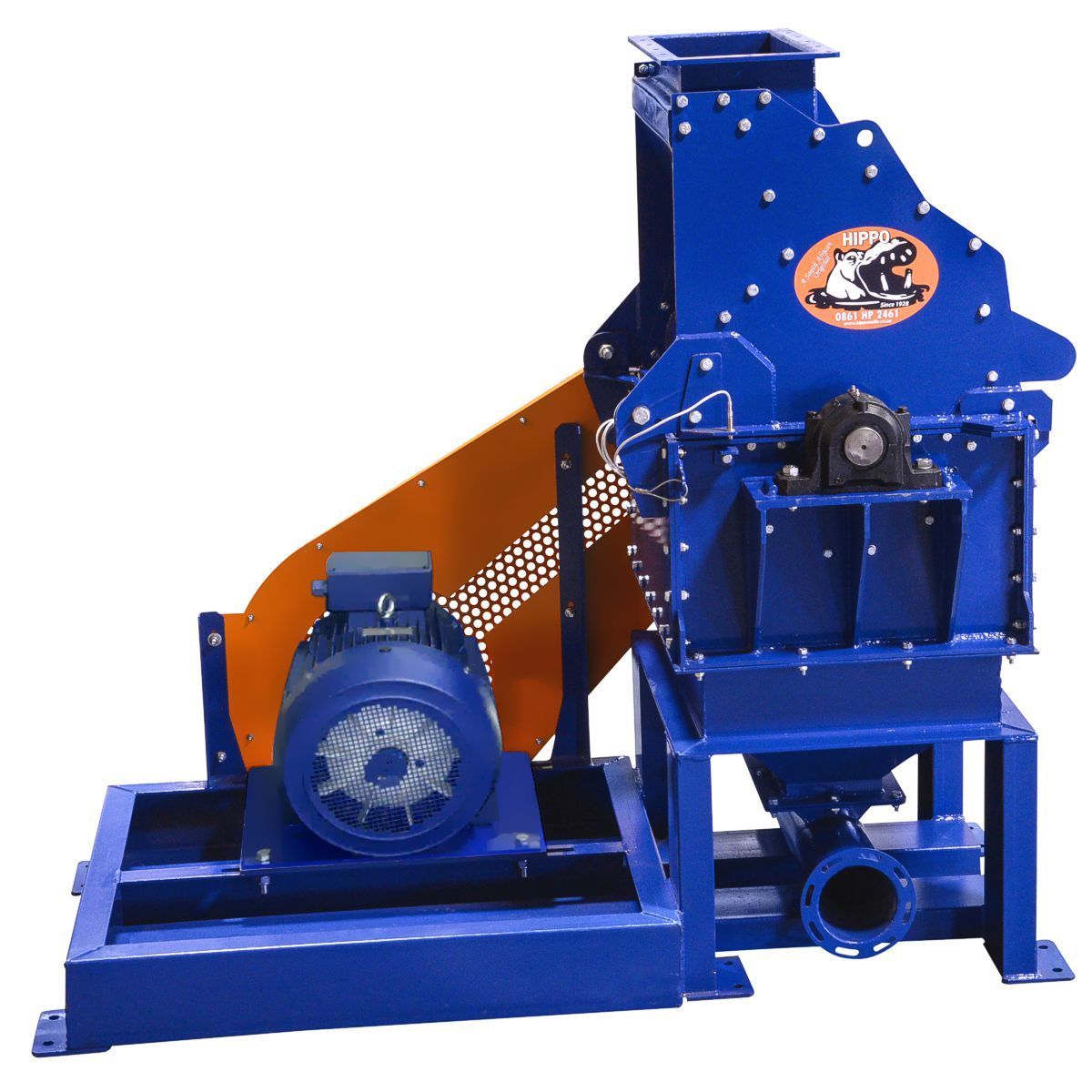

In use across the U.S. and around the world, South-African made Hippo mills are available with horsepower ratings of 5 to 150 hp. The Hippo #L63 hammer mill is equipped with a 75 hp, 3-phase electric motor.

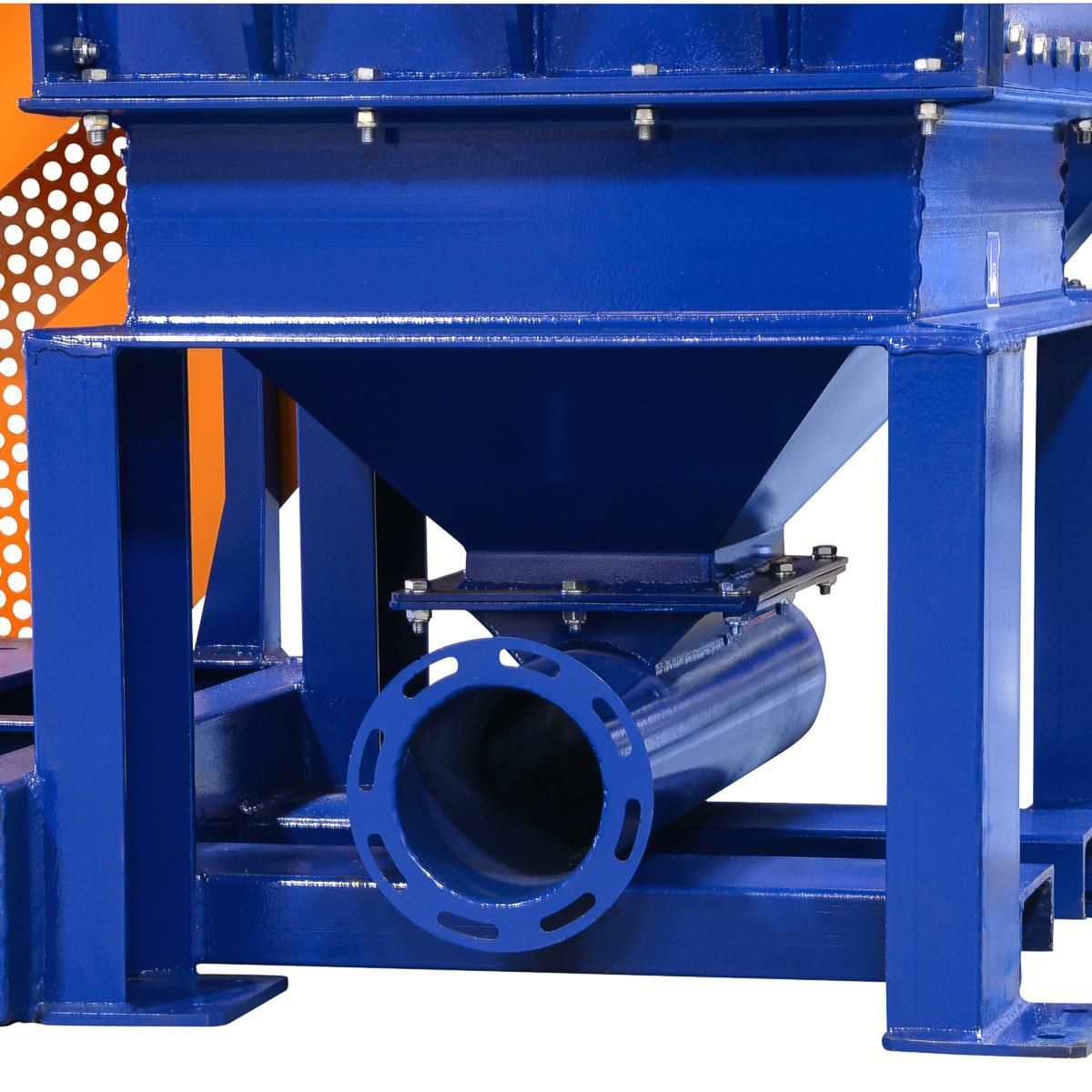

Hippo hammer mill grinders feature rigid hammers with replaceable tips of long wearing, impact and abrasion-resistant Bennox steel. The screen is located in the bottom half of the hammer mill chamber, covering an arc of about 180°. Milled material exits the mill below the screen. For finer particle grinding and to aid the movement of finer particles thru the mill screen and away from the mill, a separate air transport system can be configured from the discharge of the mill. This air transport system is available as a separate purchase option and consists of enclosed duct work, a material handling blower fan driven by a separate electric motor, a material collecting cyclone, a rotary valve driven by an electric motor on the collecting cyclone, and a dust bag separator.

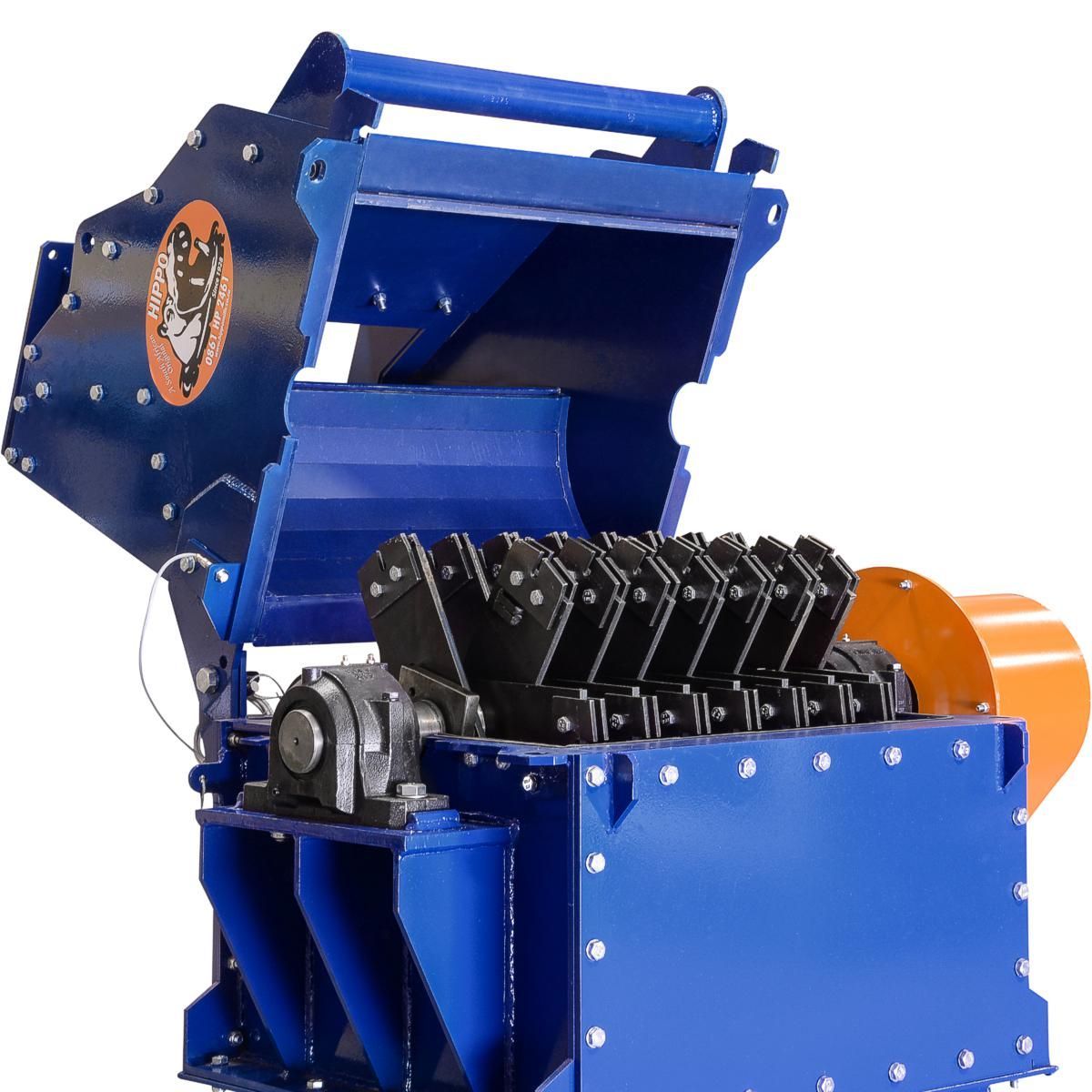

Stock interchangeable screens for the Hippo #L63 hammer mill grinders are available with hole sizes of 0.6, 0.8, 1.0, 1.2, 1.6, 2, 3, 5, 6, 10, 15, 20 and 25mm. The top half of the milling chamber swings open for full access to the hammers and screen, and screens can be changed out in just 30 seconds without tools.

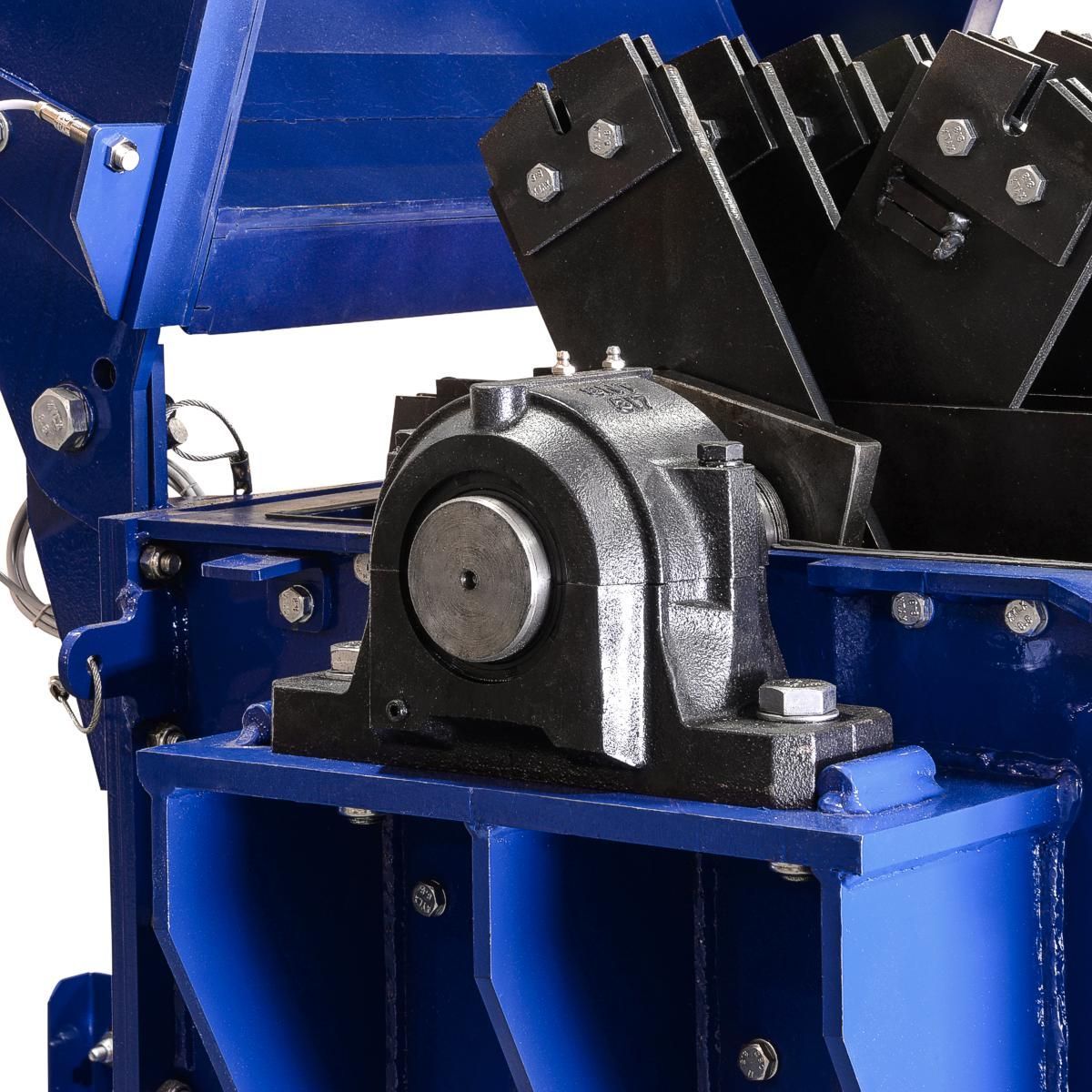

Hippo mills are manufactured to high precision standards, with non-cast components cut by laser or plasma for excellent fit. High quality bearings are used, and lubricated with quality synthetic lubricant.

All Hippo mills are tested before shipping and are covered by a 1 year warranty against defects in materials and workmanship.

Free test grinding: Pleasant Hill Grain has extensive milling experience and can make recommendations for a wide range of grinding needs. We can also test mill samples of your materials; please call us at (866) 467-6123 or email to make arrangements.

The price above is for the Hippo #L63 hammer mill, 460V/3PH 75HP motor and motor starter.

Because of the range of setup options available, orders for Hippo hammer mills are taken by phone. Please call for pricing on collecting cyclone and dust bag systems, screens, crate fee and shipping costs by truck or freight forwarder.

*Output rate is based on dry corn for reference, and will vary substantially for other materials based on factors including density and frangibility.
**Rotor RPM is infinitely variable with optional VFD (variable frequency drive) for fine-tuning of speed and particle size.
***Most product will exit even finer than the size of the holes in the screen.

Hippo Hammer Mill Specs

Hippo Hammer
Mill Model
HP Output Rate* thru
1/32" screen (lbs/hr)
Output Rate* thru
1/16" screen (lbs/hr)
Output Rate* thru
5/16" screen (lbs/hr)
Rotor RPM** Finest Screen***
Baby Hippo Mill 5 176 440 992 5280 30 mesh
Hippo #1 Mill 10 440 1100 2480 4400 30 mesh
Hippo #1.5 Mill 15 771 1653 4078 4385 30 mesh
Hippo #47 Mill 25 1146 1984 5291 4190 30 mesh
Hippo #57 Mill 40 1322 2645 6172 4230 30 mesh
Hippo #69 Mill 60 1984 3858 7716 4245 30 mesh
Hippo #L63 Mill 75       2400 30 mesh
Hippo Mammoth Mill 100       4000 30 mesh



Dimensions and weights are based on the mill with air conveyor and no motor.

Hippo Hammer Mill Dimensions

Hippo Hammer
Mill Model
Width
(inches)
Depth
(inches)
Height
(inches)
Net Wt.
(pounds)
Baby Hippo Mill 69 37 78 195
Hippo #1 Mill 94 49 86 407
Hippo #1.5 Mill 129 53 93 772
Hippo #47 Mill 129 53 93 827
Hippo #57 Mill 129 57 93 1,037
Hippo #69 Mill 160 65 93 1,235
Hippo #L63 Mill 87 60 72 1764
Hippo Mammoth Mill 91 68 84 2646



Hippo Hammer Mill Grinding Versatility

Free test grinding of your product is available.
  • Grain (wheat, corn/maize, more)
  • Herbs
  • Beans
  • Seed Pods
  • Eggshell
  • Peppers
  • Spices
  • Ginger Root
  • Dried Fruits
  • Coffee Beans
  • Coconut
  • Cranberry Pellets
  • Computer/Electronic Components
  • Tubers including Taro and Cassava
  • Products for Recycling
  • Fibrous Plant Materials
  • Tea Leaves
  • Mesquite Beans
  • Chick Peas/Garbanzo Beans
  • Bones
  • Glass/Bottles
  • Wood Chips/Bark
  • Plastics
  • Packaging Peanuts
  • Friable Minerals/Rock/Stone
  • Industrial Hemp
  • Cookies
  • Chips
  • Crickets/Insects
  • Salt
  • Crab, Clam, Oyster Shells
  • Clumped Dry Materials
  • Fish Meal
  • Brick
  • Gypsum
  • Rock Salt
  • Roots (pre-cubed)
  • Many more materials

Hippo hammer mills grind herbs, spices, tubers and roots including allspice, angelica, anise, aniseed myrtle, annatto, artemisia, barberry, basil, bay leaf, fenugreek, caper, caraway, cardamom, carom seeds, cassia, catnip, cattail root, cayenne pepper, celery leaf, celery seed, chervil, chicory, chili pepper, chives, cicely, cilantro, cinnamon, clove, coriander seed, cudweed, culantro, cumin, curry leaf, curry plant, dill, elderflower, epazote, fennel, fenugreek, fingerroot, industrial hemp, horseradish, hyssop, juniper berry, lime leaves, lavender, lemon balm, lemongrass, licorice, mace, marjoram, mint, mustard, nutmeg, oregano, paprika, parsley, pepper, peppermint, rosemary, safflower, saffron, sage, sassafras, savory, sorrel, spearmint, spikenard, star anise, sumac, szechuan pepper, tarragon, thyme, turmeric, vanilla, watercress, wintergreen, woodruff, wormwood, absinthe, yerba buena, yarrow, and more.

Additional millable materials include dry forms of: activated carbon and charcoal, almond hulls/shells, aluminum chloride, foil, ammonium nitrate and sulfate, asphalt, barium nitrate, barley malt and sprouts, beet pulp, borax, bran flakes, bread crumbs, brewer’s grain, grits and yeast, buttermilk, calcined diaspore, carbonate, calcium chloride and stearate, candy, caraway seed, carbon bricks, orange peel, straw, stover, cardboard, casein, caustic soda, cellulose acetate, cellulose sponge, chalk, cheese, cheese whey, chicken litter, chicle, cholene chloride, cigarette filters, clay, coal, coca cake, coffee bean hulls, cork, cottonseed meal, cracker meal, daisy puffs, diammonium phosphate, di-calcium phosphate, diatomaceous earth, dog food, flax seed, floor tile, gelatin capsules, glue, milk, graphite, grass seed screenings, gum arabic, hominy, horseradish, kalsomine, macaroni pasta noodles, malted milk balls, metamucil, milo, molding powder, mushrooms, navy beans, oat groats and hulls, sulphite, peanut shells and skins, peat moss, pecan shells, miscellaneous pellets, phonograph records, pills, pineapple pulp, plaster molds, plaster of paris, plastic foam, popcorn, potassium chloride, potassium sulfate, antler, horn, potatoes, psyllium seed, riboflavin, rice, rice crinkles, safflower seed meal, sal ammoniac, salt, shellac, shives, shrimp, soap chips, rubber, flakes and powder, sodium carbonate, sodium nitrate prills, sodium phosphate and sulfate, sorghum, spaghetti, starch, tablets, tankage, tapioca, terra cotta, tobacco stems, biomass feedstock, potting soil, mulch, tomato pomace and flakes, tripoly phosphate, vermiculite, wheat, wheat germ, wheat gluten, wood flour, yeast, and more.

Free test grinding: Pleasant Hill Grain has extensive milling experience and can make recommendations for a wide range of grinding needs. We can also test mill samples of your materials; please call us at (866) 467-6123 or email to make arrangements.

Did we forget something? If you need more information about this product, please tell us what else you'd like to know with a quick email or live chat!

Specs

Manufacturer Part NumberHippo L63
BrandHippo
Width87"
Depth60"
Height72"
Product Weight (lbs.)1764 lb.
ColorBlue
FinishPainted glossy
MaterialCast iron
Housing MaterialSteel
RPM2400
Horsepower75 HP
Volts AC460
Amps84.1 running / 150 amp breaker req'd to start
Hz60
Phase3
UPCDoes not apply
Commercial WarrantyYes
Warranty Length1 year
Freight ShippedYes

Shipping

We stock this product in our Nebraska warehouse. This item requires freight delivery and you should receive your order within 2-7 business days from ship-out. Click here for more information about freight delivery.
