Hippo Pygmy Mill

$2,999.00

Please call to order

View our business hours

Hippo Pygmy Mill

We have Hippo hammer mills IN STOCK and ready to ship within days!

VERSATILE SMALL HAMMER MILL

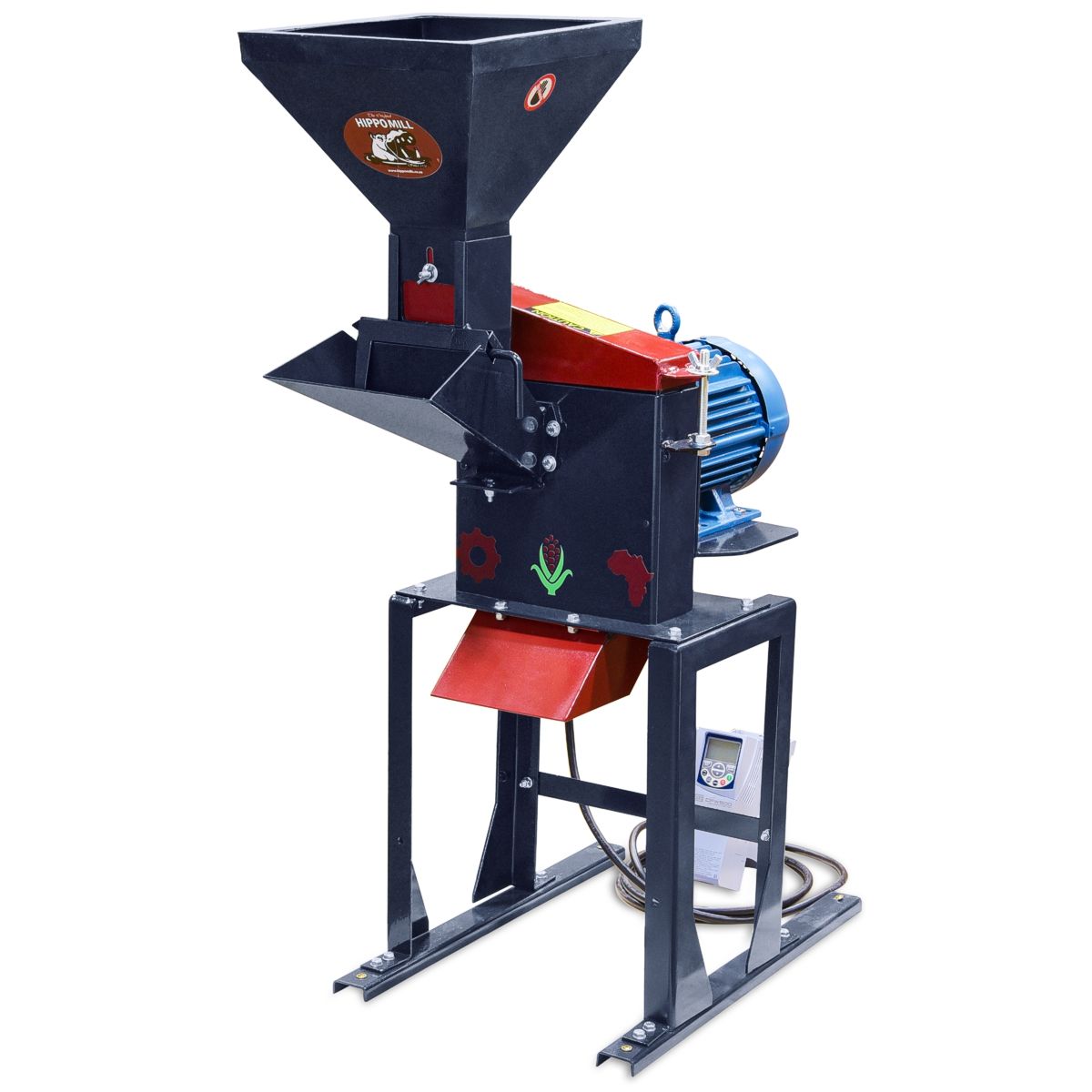

The Pygmy is the smallest hammer mill in the Hippo range and is popular for home industries. They’re often used to grind spices, herbs and grain. It's also excellent for shredding plastics and foam. The simple construction and operation and affordable price makes this the ideal mill for startup businesses and small farms. The Pygmy is not suitable for grinding glass or hardwood chips.

HAMMER MILL AND SILAGE/GARDEN REFUSE CHOPPER

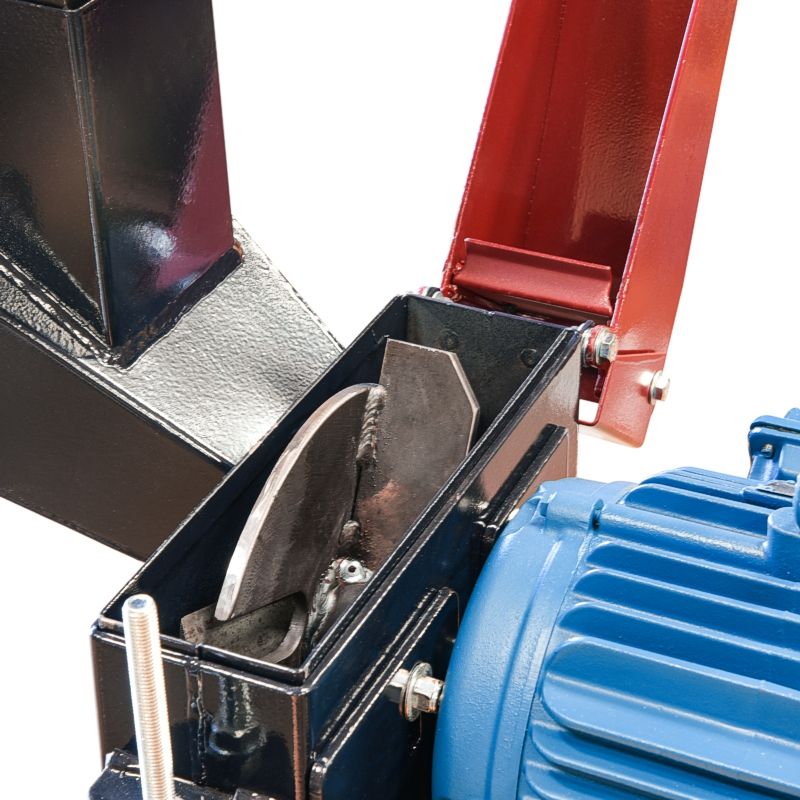

The mill can be set, to either run as a hammer mill, or as a silage chopper. Operated as a hammer miill, the infeed will be through the top-mounted hopper, with output particle size determined by the size of the holes in the interchangeable screens, and material exiting the bottom discharge. When operated as a silage/refuse chopper, material such as plant stalks or small woody stems (under 20mm diameter) is fed through the side inlet of the mill, where it is chopped by two blades mounted on the rotor. The blades and the round rotor plate are replaceable when they get worn.

OUTPUT CAPACITY

ELECTRICAL

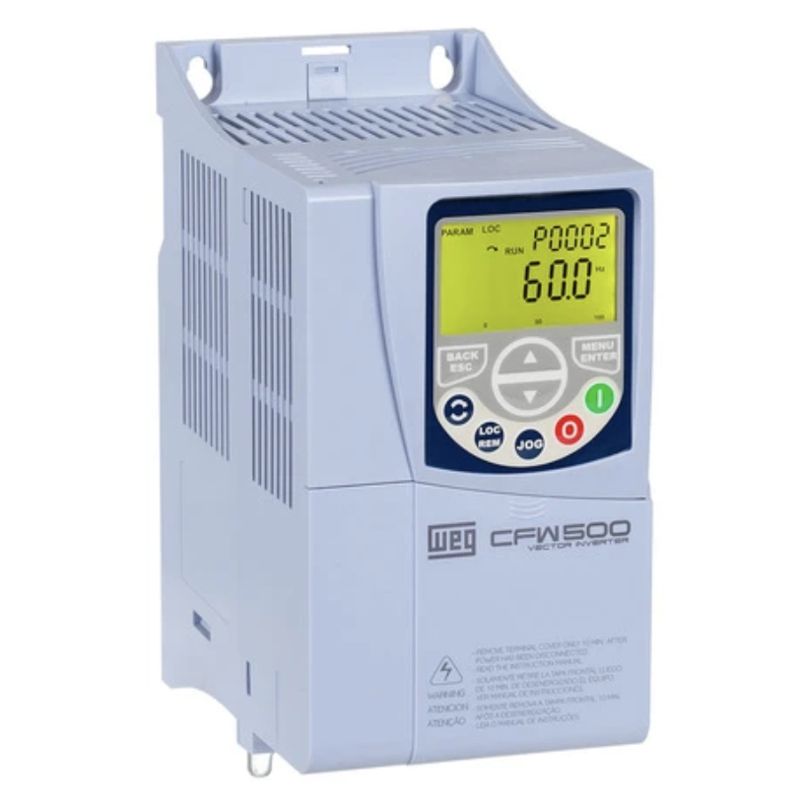

The Pygmy mill may be run on your choice of power supplies, either 220V/1Phase power OR 230V/3Phase power using a VFD. The VFD is wired to the motor, and buyer is responsible to have the VFD wired to your power source. The mill is equipped with a VFD (Variable Frequency Drive) that enables it to be operated anywhere within a wide range of speeds.

ORDERING

Free test grinding: Pleasant Hill Grain has extensive milling experience and can make recommendations for a wide range of grinding needs. We can also test mill samples of your materials; please call (866) 467-6123 or email to make arrangements.

Orders for the Hippo Pygmy mill are taken by phone. For a shipping quote, please call or e-mail with your city, state and zip code. Pricing is FOB. Crating fee is $135.

Please call to discuss the Hippo Pygmy hammer mill/silage grinder, or to order.

HIPPO HAMMER MILL SPECS

Hippo Hammer

Mill Model

HP

Output Rate* thru 1/32" screen (lbs/hr)

Output Rate* thru 1/16" screen (lbs/hr)

Output Rate* thru 5/16" screen (lbs/hr)

Rotor RPM**

Finest Screen***

Baby Hippo Mill

5

175

440

992

5280

30 mesh

Hippo #1 Mill

10

440

1100

2480

4400

30 mesh

Hippo #1.5 Mill

15

771

1653

4078

4385

30 mesh

Hippo #47 Mill

25

1146

1984

5291

4190

30 mesh

Hippo #57 Mill

40

1322

2645

6172

4230

30 mesh

Hippo #69 Mill

60

1984

3858

7716

4245

30 mesh

Hippo #L63 Mill

75

2750

5550

11000

2400

30 mesh

Hippo Mammoth Mill

100

5292

11000

22000

4000

30 mesh

*Output rate is based on dry corn for reference, and will vary substantially for other materials based on factors including density and frangibility.

**Rotor RPM is infinitely variable with optional VFD (variable frequency drive) for fine-tuning of speed and particle size.

***Most product will exit even finer than the size of the holes in the screen.


HIPPO HAMMER MILL DIMENSIONS

Hippo Hammer Mill Model

Width (inches)

Depth (inches)

Height (inches)

Net Wt. (pounds)

Baby Hippo Mill

69

37

78

195

Hippo #1 Mill

94

49

86

407

Hippo #1.5 Mill

129

53

93

772

Hippo #47 Mill

129

53

93

827

Hippo #57 Mill

129

57

93

1037

Hippo #69 Mill

160

65

93

1235

Hippo #L63 Mill

87

60

72

1764

Hippo Mammoth Mill

91

68

84

2646

Dimensions and weights are based on the mill with air conveyor and no motor.

BUY NOW, PAY LATER WITH PAYPAL

null

Payment plans of 12 to 24 months, with full details available in checkout.

THIS PRODUCT IS MADE IN INDIA!

null

Did we forget something?
If you need more information about this product, please tell us what else you'd like to know with a quick email or live chat.

Specs

Width
17"
Depth
34"
Height
48.5"
Weight (lbs.)
152
Finish
Painted
Housing Material
Steel
Duty Cycle
100%
Power Source
Electric (AC)
RPM
2800
Volts AC
220
Hertz
60
Wheels
No
Origin
Imported
Warranty Length
1 year
Commercial Warranty
Yes
Country of Manufacture
South Africa

Shipping

We stock this product in our Nebraska warehouse. This item requires freight delivery and you should receive your order within 2-7 business days from ship-out. Click here for more information about freight delivery.

Accessories for this product:

Pygmy Hammer Mill Screens

Hammer mill screens for the Hippo Pygmy hammer mill. Available in sizes from 1mm to 8mm, and a blank-out screen. The screens are made of mild steel.

(More info) See product

$45.99
