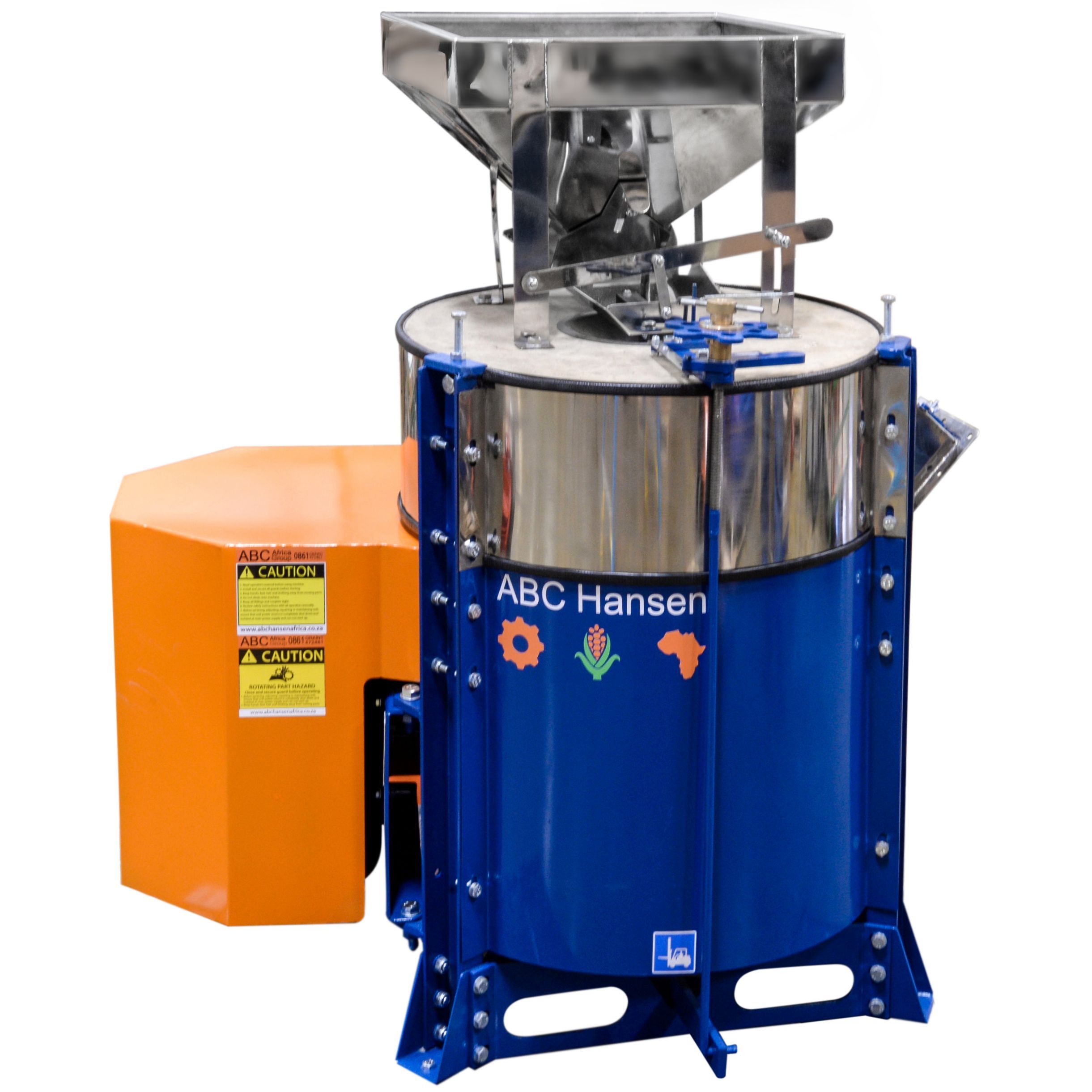

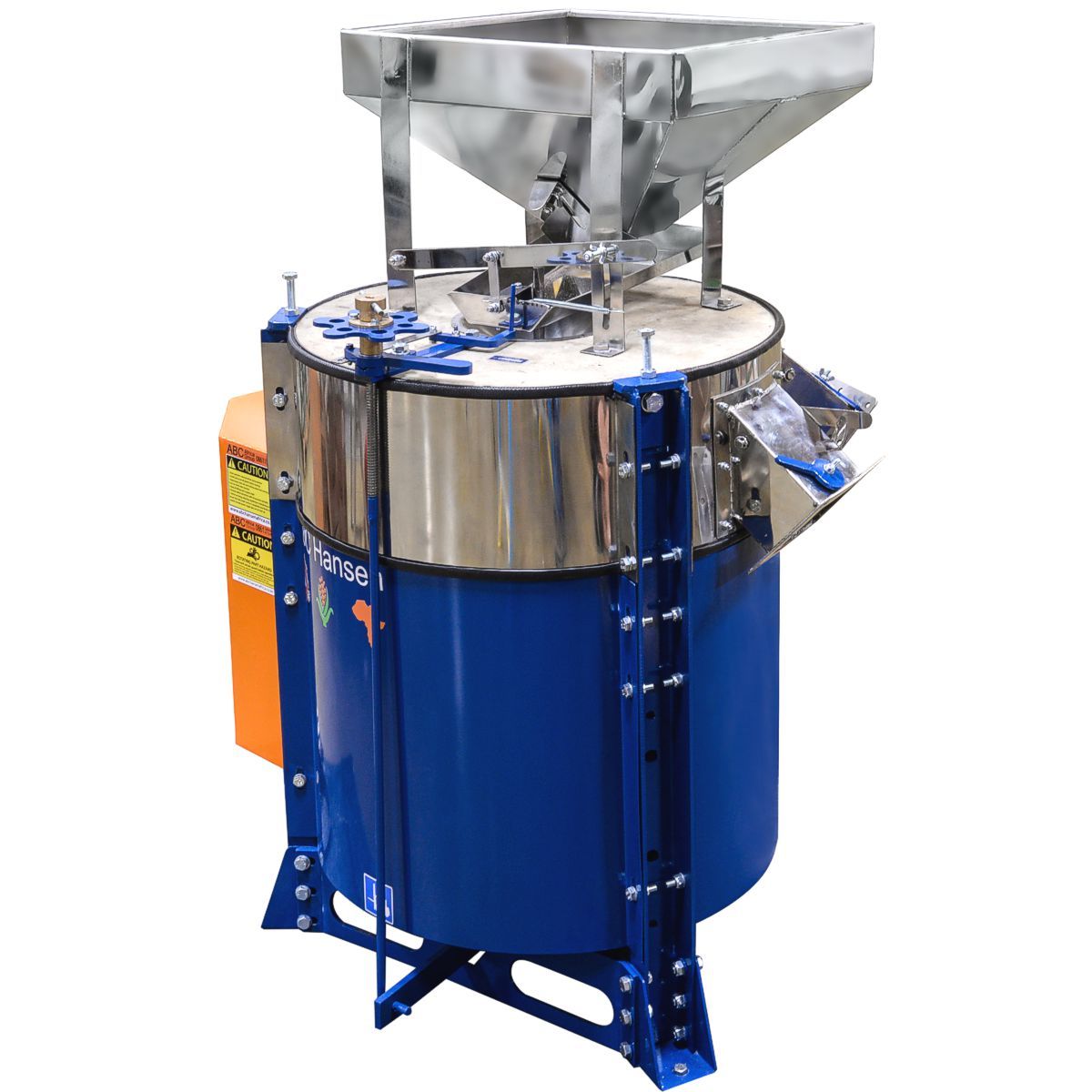

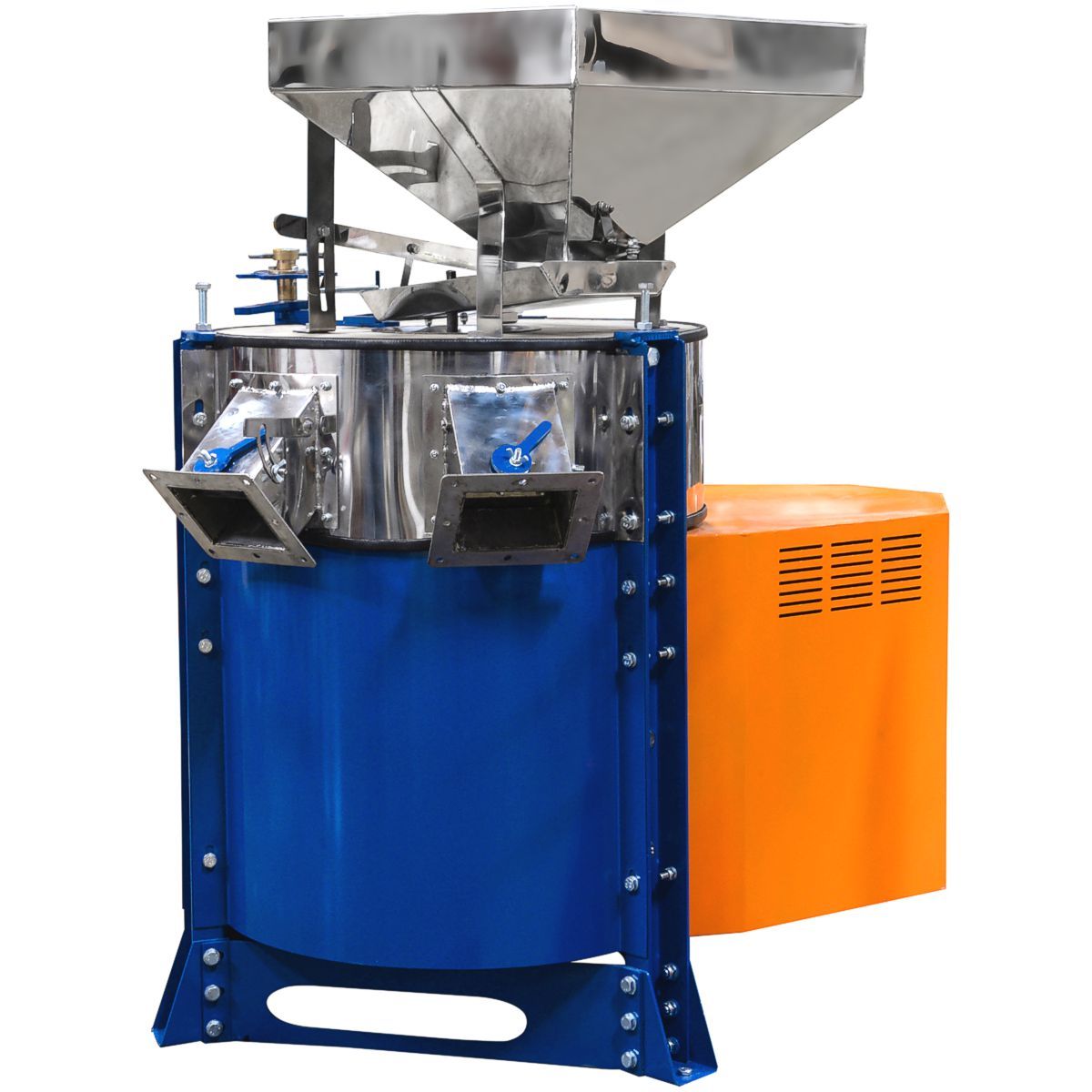

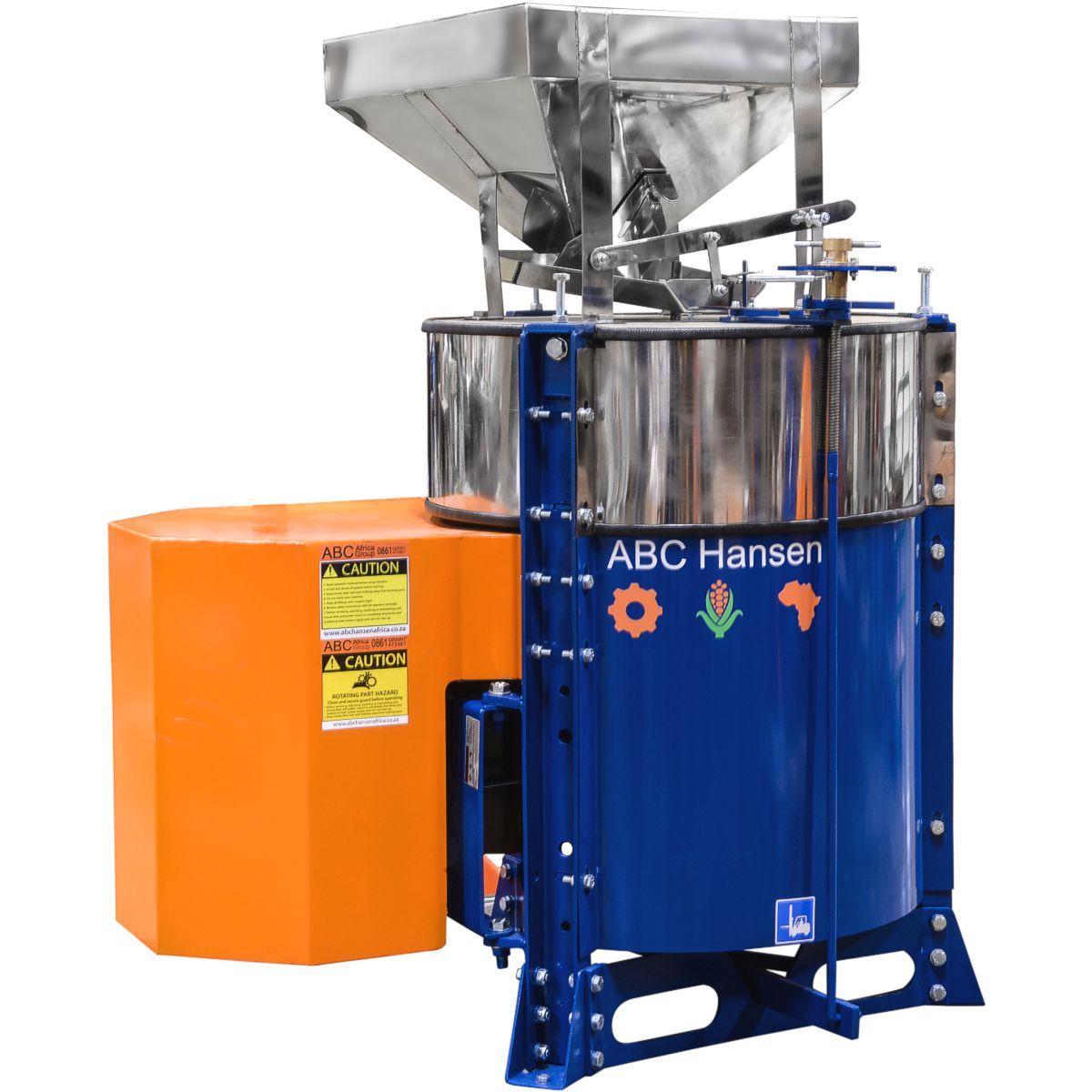

ABC Hansen Stone Burr Grain Mill, 37"

SKU: KZ297, Part Number: MSH950R, Shop more ABC Hansen items
$17,345.00 - $17,590.00
In Stock Vendor shipped by freight, usually ships in 1-2 weeks.
click for
details
This item ships free! Your order could ship free!

Why Buy from PHG?

  • Quality, curated product selection
  • Prompt, personal customer service
  • 100% satisfaction guarantee
Accepted credit cards
Canadian orders by phone!Canadian orders by phone
  • Danish emery-flint stone burrs
  • Grinds 660-1300 lbs of grain per hour
  • Grinds from fine flour to coarse meal
  • Cool grind for nutrition retention
  • Stainless steel food contact parts
  • Available air conveyor & sifter options

Description

ABC Hansen Stone Burr Grain Mill, 37"

ABC Hansen horizontal stone burr grain mills produce the finest quality flour. Stone maker Engsko, of Denmark, has been producing mill stones since 1925. A composite of emery and flint, the stones have inherently sharp surfaces for highly efficient grinding.

Stone milling is especially suited to dry products with low oil content that have to be milled very finely. In the case of grain, a pass through a 160 micron screen can be as high as 95%. Stone mills offer low investment in equipment for fine grinding with low heat transfer to your product, and operational costs are low. Well suited for all grains and spices and can be applied to numerous other products. Product is normally discharged by means of air which increases capacity and retains a low milling temperature.

ABC Hansen produce super fine whole grain flour from wheat, rye, spelt, kamut, corn and many other whole grains. They’re also ideal for grinding spices, as the low temperature prevents discoloration and loss of flavor. Many varied applications are possible for grinding low moisture, low oil products from macadamia nut shells to starch.

Mills are available with 37” and 24” stone diameters. The table below shows approximate output rates under normal grinding conditions with dry grains such as wheat or corn.

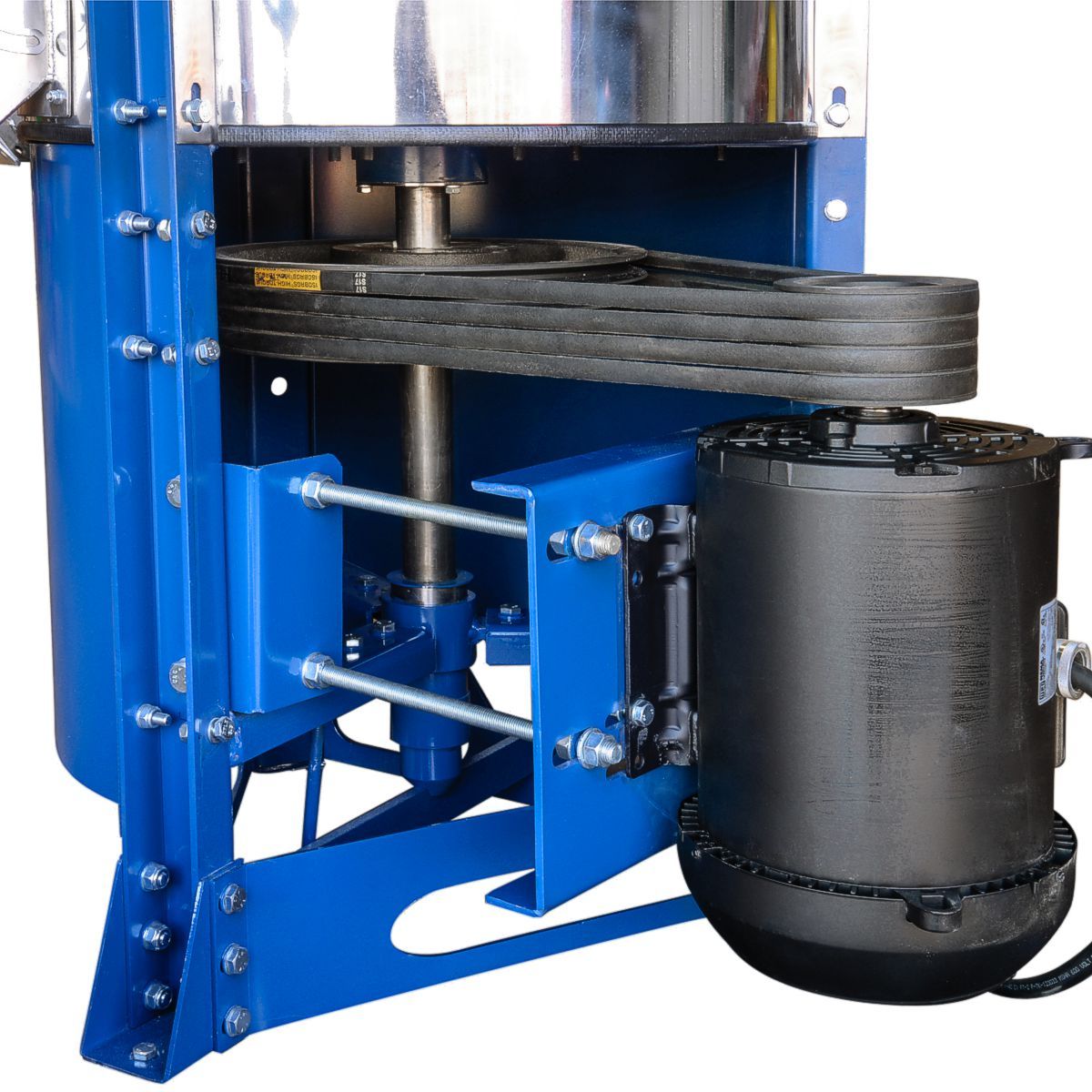

Pricing for the 37" stone burr mill includes the mill, motor, magnetic starter, and belt drive configuration. An additional $150 crate fee applies. Mills picked up on-site are not subject to the crating fee if a crate is not required.

Mills arrive ready to wire into electric service and put to use. The motor is not pre-wired to the starter and an AC cord and plug are not included. A qualified electrician will be needed to install and supply the electrical wiring of the motor, starter, and AC cord and plug to the service outlet.

Mill operation is very simple, and maintenance requirements are minimal. The composite emery/flint stones are extremely hard for superior abrasive qualities and extremely long life. Most users get lifetime service from the original stones.

An accessory sifter is available, to sift and separate flour if desired.

Please call with any questions about ABC Hansen stone burr mills, or for a shipping quote. Due to the range of electric power options and other setup options, orders for ABC Hansen mills are taken by phone.

Made in South Africa, ABC Hansen stone burr grain mills are economical to purchase and operate, easy to use, and their durability will provide reliable service for many years.

*Output rate is based on wheat for reference, and will vary substantially for other materials based on factors including density and frangibility.

ABC Hansen Stone Burr Mill Specs

ABC Hansen Stone Burr
Mill Model
Air
Conveyor
Output Rate* thru
90 mesh screen (lbs/hr)
Output Rate* thru
19 mesh screen (lbs/hr)
RPM
Yes 330 1210 600
No 300 1100 600
Yes 660 2420 600
No 605 2200 600

ABC Hansen Stone Burr Mill Dimensions & Weights

ABC Hansen Stone Burr
Mill Model
Width
(inches)
Depth
(inches)
Height
(inches)
Net Wt.
(pounds)
53 39 53 1,430
72 54 61 2,244

Did we forget something? If you need more information about this product, please tell us what else you'd like to know with a quick email or live chat!

Specs

Select product option(s) from the drop-down menu at top of page to see item-specific specifications here.

Manufacturer Part NumberMSH950R
BrandABC Hansen
Length52.8"
Depth72.4"
Height60.6"
Product Weight (lbs.)2244 lb.
Housing MaterialSteel
Burr MaterialEmery-flint composite
RPM600
Horsepower25 HP
Volts AC230
Hz60
Phase3
UPCDoes not apply
OriginImported
Commercial WarrantyYes
Warranty Length1 year
