Clearance: Famag IM-10S Mixer, Galaxy
Flat Rate Shipping Note
Ground shipping is $10 per order, flat-rate, except where noted differently on product pages.
Why Buy from PHG?
- Quality, curated product selection
- Prompt, personal customer service
- 100% satisfaction guarantee
- Spiral mixing action
- Gentle, low-oxidation kneading
- Doesn't heat dough
- Integrated dough breaker bar
- Power rotating bowl
- 14 qt. capacity
- Wide 1.5 to 22 lb. batch range
- High lift drive head, lift assist
- High torque industrial motor
- Stainless food-contact parts
- Infinite variable speed
- Durable powder coat finishes
- Quiet operation
- Made in Italy

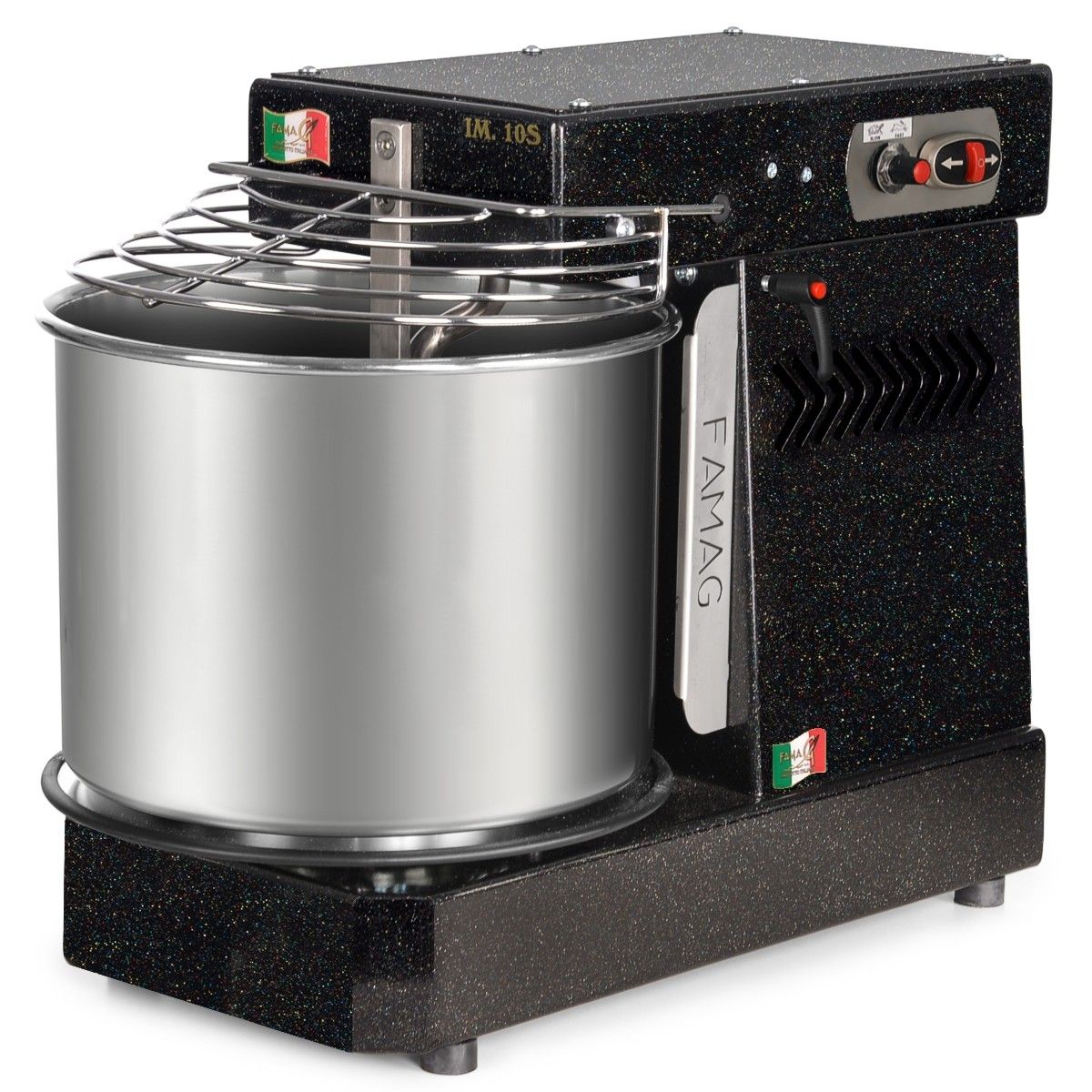

Clearance: Famag IM-10S Mixer, Galaxy
This is an R2 clearance item. Please check the table below to see how we rate our clearance items.
Note: The product images on this page are of a new item, with the exception of any images marked “Clearance item”.
Italian-made Famag spiral dough mixers are world renowned for strength, quality, and outstanding baking results. Now they’re available in the U.S. for the first time, with industrial-duty motors designed specifically for U.S. voltage. As Famag's exclusive importer, Pleasant Hill Grain is proud to offer these high performance bread mixers!

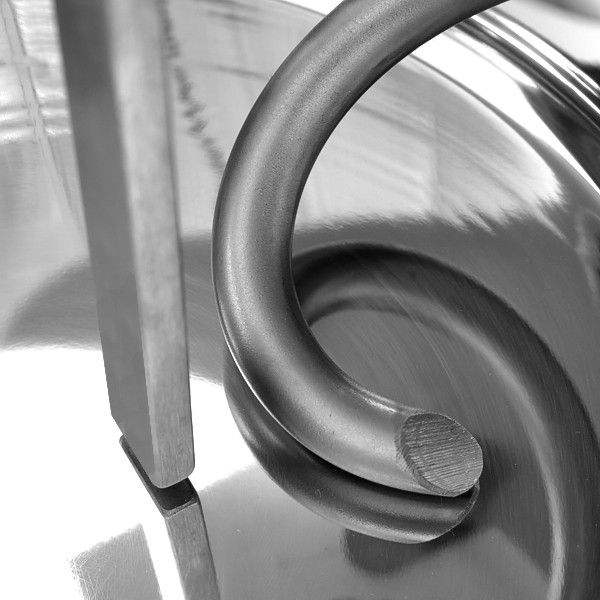

Engineered expressly for ideal dough-mixing and kneading results, Famag spiral mixers feature a spiral agitator that remains stationary while the bowl rotates, bringing the dough to the stainless steel dough hook with each revolution. An integrated offset breaker bar ensures ideal metering of the dough into the spiral hook. This action is exceptionally thorough and uniform, while avoiding both overworking and overheating of the dough. The spiral dough hook on the IM-10 operates at 80-240 RPM. Clickfor the approximate RPM at each speed.
Famag IM-10 Model Comparison
|Model||Tilting Head||Removable Bowl||Spiral Hook Speed Range||Ratio of Bowl to Dough Hook RPM||How to order|
|80-240 RPM||1:10||Above on this page.|
|80-240 RPM||1:10||Above on this page.|
|80-300 RPM||1:12-13||Call or email to place special order.|
|80-300 RPM||1:12-13||Online here.|
Tilting or Fixed Head
The Famag IM-10 mixer is available with either a tilting head that features a high lift drive and lift assist, or with a fixed head. The model with the fixed head is the IM-10, and the model with the tilting head and removeable bowl is the IM-10S. The bowl is removable on the mixer with a tilting head, and is not removable on the mixer with a fixed head.
If you're mixing high hydration doughs we recommend you purchase the tilting head/removable bowl mixer so it's easier to remove the dough from the bowl, and to clean the bowl. It's easy to remove low hydration dough from the fixed head mixer than it is to remove high hdyration dough, and cleaning the bowl after mixing low hydration dough is easily done with the bowl attached to the mixer.
The tilting head mixer is available in all the color options. The fixed head mixer is currently available in Arctic White, Ruby, and Dark Silver (we may add more colors in the future).
HIGH HYDRATION OR HEAVY DOUGH
Thanks to the spiral hook’s action, mixtures that overtax other designs—such as pizza or bagel dough—are handled easily, quickly and efficiently in the Famag spiral dough mixer. Doughs of all kinds, from heavy to high-hydration artisan doughs, come out smooth, silky and perfectly developed. We now offer the new HH (high hydration) IM-10S mixer with a special sprocket that allows the mixer to run up to 300 RPM; this version is designed specifically for mixing dough that's above 75% hydration.
“You've been very courteous and helpful in every situation... such excellence in customer service deserves to be rewarded!”– Dan M., AR
Famag dough mixers feature heavy duty chain overhead drive, with a high torque dual-belt final drive. FAG sealed industrial ball bearings are used for exceptionally long life. Construction is robust throughout, as attested to by the mixer’s substantial 81.5 lb. weight. Epoxy powder coating over a steel cabinet protects the handsome appearance of your Famag bread mixer.
SUPER CAPACITY RANGE
Famag's IM-10 mixes and kneads up to 22 lbs. (10 kg) of dough at 60% hydration (or more at a higher hydration), but also handles batches as small as 3.3 lbs. (1.5 kg) equally as well. In terms of flour capacity, this is 13.8 lbs. (6.3 kg) down to 2.2 lbs (1 kg). Capacity of the stainless steel bowl is 14 quarts. Unlike inferior designs, the kneading arm of the Famag lifts high for bowl access and removal, and provides lift-assist.
Famag Mixer Capacities at 60% Hydration
|IM-5||6.8 lbs. / 3.1 kg||2 Q / 1.9 L||11 lbs. / 5 kg|
|IM-8||11 lbs. / 5 kg||3.2 Q / 3 L||17.6 lbs. / 8 kg|
|IM-10||13.8 lbs. / 6.3 kg||4 Q / 3.8 L||22 lbs. / 10 kg|
|IM-15||20.7 lbs. / 9.4 kg||5.9 Q / 5.6 L||33 lbs. / 15 kg|
|IM-20||27.3 lbs. / 12.4 kg||7.8 Q / 7.4 L||44 lbs. / 20 kg|
|IM-30||41.9 lbs. / 19 kg||12 Q / 11.4 L||66.1 lbs. / 30 kg|
|IM-40||55.1 lbs. / 25 kg||15.8 Q / 15 L||88.2 lbs. / 40 kg|
|IM-50||69.4 lbs. / 31.5 kg||20 Q / 18.9 L||110.2 lbs. / 50 kg|
Speed Based on Hydration
Variable speed mixers have a speed dial marked from 1-10. For dough with a hydration of 65% or higher, the mixer can be operated at any speed (1-10). For dough with a lower hydration, Famag recommends not exceeding speed 5.
FAMAG = UNPARALLELED VALUE
Whether you’re a commercial user in a bakery or a dedicated home enthusiast who appreciates the worth of old-world quality, Famag offers exceptional value as well as performance. While being competitively priced, Famag dough mixers are built by a company committed to higher standards—a commitment backed by a three year warranty covering both home and commercial use.
As a gourmet chef at home, or at work, the Famag spiral dough mixer will quickly take its place as your trusted culinary partner. Order yours today and see just how much you’ve been missing!
Famag spiral dough mixers are available in a wide selection of colors. Dark Silver and Marina are pearl finishes that have a subtle pearlescent luster. Sparkle Silver has a brilliant sparkle to it that catches light more than the pearlescent colors will. Arctic White, Maraschino, and Ruby have a glossy finish. Galaxy sparkles in gold, red, blue, and green over a black background. Because of the unique characteristics of the Galaxy color, 3” x 6” Galaxy color sample cards are available by U.S. mail at a cost of $7 (which includes shipping). This cost is refundable as a credit toward the purchase of any color or model of Famag mixer purchased within 30 days (and you can keep the card).
Famag IM-10 Spiral Mixer Colors
|Arctic White||Dark Silver||Galaxy|
“Best dough mixer I ever bought. Yes it's not cheap, but so worth the price... quality couldn't be better. The results of my pizza dough are beyond what I expected. It makes a world of difference in the end result taste. So happy I chose to go with the Famag.”– Miles V., CA
|1. Dimensions are measured from facing the control panel.|
|For more details see the specs tab, above.|
Famag IM-10 Variable Speed Mixer
|Bowl Capacity||14 Q (13.2 L)|
|Bowl Dimensions (Inside dia. x H)||11" x 8.6"|
|Bowl Weight||5 lbs.|
|Dough Capacity||3.3 to 22 lbs. (1.5 to 10 kg)|
|Flour Capacity||2.2 to 13.8 lbs. (1 to 6.3 kg)|
|Water Capacity||0.5 to 4Q (0.5 to 3.8L)|
|Industrial Motor||110V, 400W, 1PH|
|Dimensions: Head Down (W x D x H)1||21" x 11.75" x 17"|
|Dimensions: Head Up (W x D x H)1||23" x 11.75" x 28.5"|
|Base Dimensions (W x D)1||18.75" x 9.5"|
|Lowest Speed||Hook 80 RPM, Bowl 8 RPM|
|Highest Speed||Hook 240 RPM, Bowl 24 RPM|
|Speed Control||Infinitely variable|
|Kneading Arm Lifts Up||Optional|
|Warranty||3 year home, 1 year commercial|
Compare Spiral Dough Mixers
Click to see our.
This product is made in Italy!
Descriptions of Ratings for Clearance Store Items
(Expanded descriptions in next table)
|Minimum Discount||Mechanically Perfect||Standard Return Policy||Full
|R1||Returned. Non-working surfaces have new or nearly new appearance. Working surfaces may have slight wear marks. Very close scrutiny is required to tell that the item isn’t brand new. Packaging may not be perfect.||10%||Yes||Yes||Yes|
|R2||Returned, nearly-new appearance. Slight to moderate flaws on non-working surfaces, such as a mixer cabinet or lid.||Varies by item||Yes||Yes||Yes|
|FR||Mostly returned items which have been brought fully up to new-equipment performance specs at the factory.||Varies by item||Yes||Yes||No|
|D||Demonstration items have been operated briefly at Pleasant Hill Grain.||Varies by item||Yes||Yes||Yes|
|DIS||Discontinued. We no longer sell them at full price because they were discontinued by us or the manufacturer. These items have never been used.||Varies by item||Yes||Yes||Varies by item|
|SDB||Scratched, dented, and/or blemished. Has moderate damage on a non-working surface, such as a scratch, dent, or blemish on the housing.||Varies by item||Yes||Yes||Yes|
|NOS||New old stock. A brand new item that isn't the newest model.||Varies by item.||Yes||Yes||Yes|
Bottom Line: If you’re a highly detail-oriented person, we recommend sticking to “R1.” But after a week’s use, the only real difference between one of these items and a brand new one will be the money you saved.
Did we forget something? If you need more information about this product, please tell us what else you'd like to know with a quick email or live chat!
|Manufacturer Part Number||IM-10S|
|Width||Facing control panel, arm down: 21" / arm up: 25"|
|Depth||Facing control panel, w/bowl: 11.75"|
|Height||Arm down: 17" / Arm up: 28.5"|
|Product Weight (lbs.)||82 lb.|
|Capacity (volume)||14 qt., 13.2L|
|RPM||Slowest: Hook 80, Bowl 8 / Top speed: Hook 240, Bowl 24|
|Cord-End Plug||Std. 120V|
|Warranty Length||3 year home, 1 year commercial|
See product description below.
