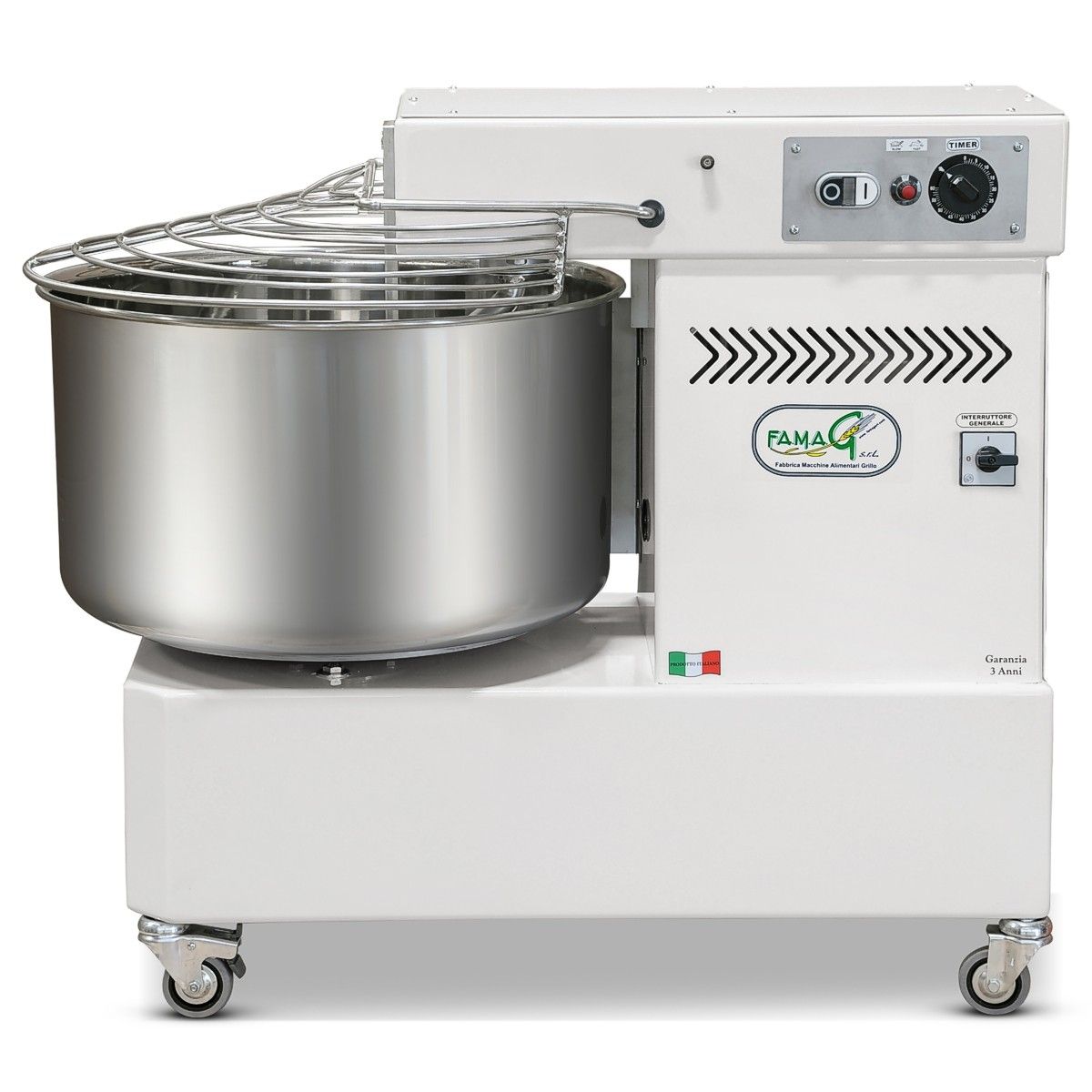

Famag IM-50 Spiral Dough Mixer

+
Famag IM-50 spiral mixer for 110 lbs. / 50 kg. dough
Choosing a drop-down option makes more images available.
click for
details
This item ships free! Your order could ship free!

Why Buy from PHG?

  • Quality, curated product selection
  • Prompt, personal customer service
  • 100% satisfaction guarantee
Accepted credit cards
Canadian orders by phone! Canadian orders by phone
SKU: JW877, Part Number: IM-50, Shop more Famag items
  • $3,699.00
  • In Stock Ships by freight in 1-2 business days.

Features

  • Spiral mixing action
  • Gentle, low-oxidation kneading
  • Doesn't heat dough

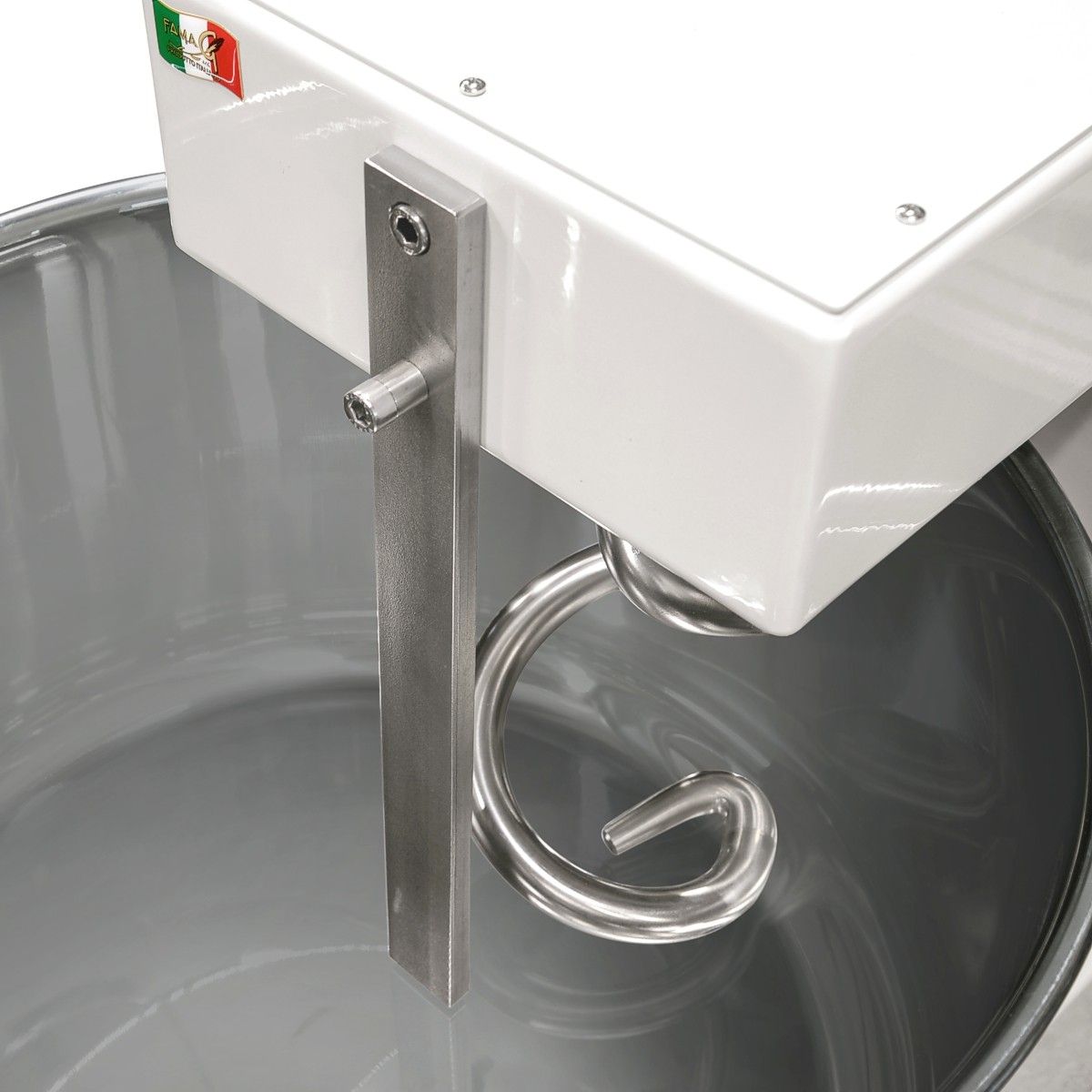

  • Integrated dough breaker bar
  • Power rotating bowl
  • 56 qt. capacity
  • Wide 11 to 110.2 lb. batch range
  • High torque industrial motor
  • Stainless food-contact parts
  • Infinite variable speed
  • Durable powder coat finishes
  • Quiet operation
  • Made in Italy

Description

Famag IM-50 Spiral Dough Mixer

Italian-made Famag spiral mixers are world renowned for strength, quality, and outstanding baking results. Now they’re available in the U.S. for the first time, with industrial-duty motors designed specifically for U.S. voltage. As Famag's exclusive importer, Pleasant Hill Grain is proud to offer these high performance mixers!

Engineered expressly for ideal dough-mixing and kneading results, Famag spiral mixers feature a spiral agitator that remains stationary while the bowl rotates, bringing the dough to the stainless steel dough hook with each revolution. This action is exceptionally thorough and uniform, while avoiding both overworking and overheating of the dough.

Thanks to the spiral hook’s action, mixtures that overtax other designs—such as pizza or bagel dough—are handled easily, quickly and efficiently in the Famag spiral dough mixer. Doughs of all kinds, from heavy to high-hydration artisan doughs, come out smooth, silky and perfectly developed.

  • “Thanks for the fast shipping. Everything arrived packaged very well. Product quality is great and we'll be continued customers.”

    – Timothy Whirley, MD

Famag mixers feature heavy duty chain overhead drive, with a high torque dual-belt final drive. FAG sealed industrial ball bearings are used for exceptionally long life. Construction is robust throughout, as attested to by the mixer’s substantial 308 lb. weight. Epoxy powder coating over a steel cabinet protects the handsome appearance of your Famag mixer.

Famag's IM-50 mixes and kneads up to 110.2 lbs. (50 kg) of dough at 60% hydration (or more at a higher hydration), but also handles batches as small as 11 lbs. (5 kg) equally as well. In terms of flour capacity, this is 69.4 lbs. down to 7.7 lbs. (31.5 kg down to 3.5 kg). Capacity of the stainless steel bowl is 56 quarts.

Notes
  1. Heavier doughs can be mixed when the hydration level is higher than the 60% hydration formulas listed above.
  2. The flour used for these capacity tests was 00 durum wheat flour.

Famag Mixer Capacities at 60% Hydration

  Flour Water Total Weight
IM-5  6.8 lbs. / 3.1 kg 2 Q / 1.9 L 11 lbs. / 5 kg
IM-8 11 lbs. / 5 kg 3.2 Q / 3 L 17.6 lbs. / 8 kg
IM-10  13.8 lbs. / 6.3 kg 4 Q / 3.8 L 22 lbs. / 10 kg
IM-15 20.7 lbs. / 9.4 kg 5.9 Q / 5.6 L 33 lbs. / 15 kg
IM-20  27.3 lbs. / 12.4 kg 7.8 Q / 7.4 L 44 lbs. / 20 kg
IM-30  41.9 lbs. / 19 kg 12 Q / 11.4 L 66.1 lbs. / 30 kg
IM-40  55.1 lbs. / 25 kg 15.8 Q / 15 L 88.2 lbs. / 40 kg
IM-50  69.4 lbs. / 31.5 kg 20 Q / 18.9 L 110.2 lbs. / 50 kg

Whether you’re a commercial user or a dedicated home enthusiast who appreciates the worth of old-world quality, Famag offers exceptional value as well as performance. While being competitively priced, Famag mixers are built by a company committed to higher standards—a commitment backed by a three year warranty covering both home and commercial use.

As a gourmet chef at home, or at work, the Famag spiral dough mixer will quickly take its place as your trusted culinary partner. Order yours today and see just how much you’ve been missing!

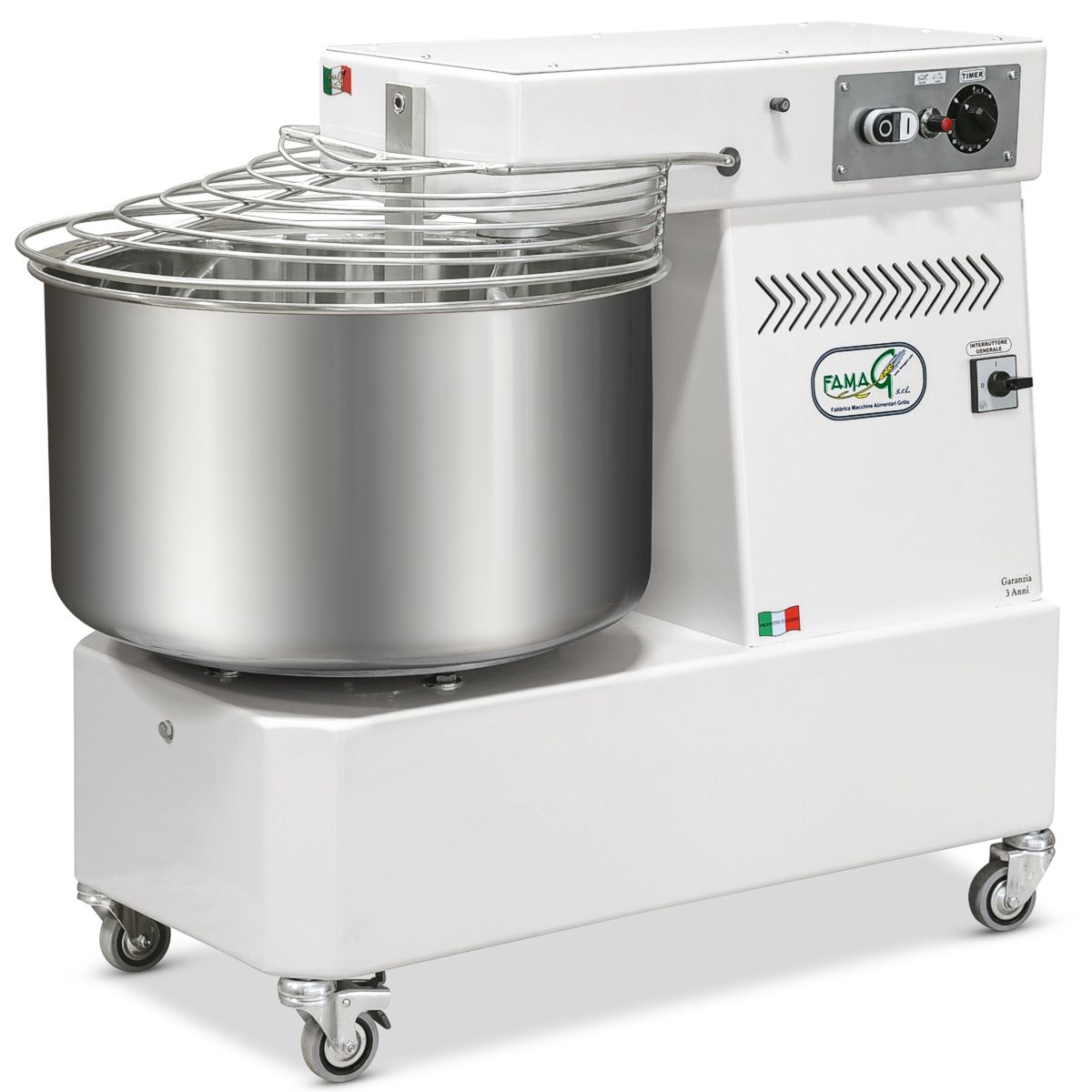

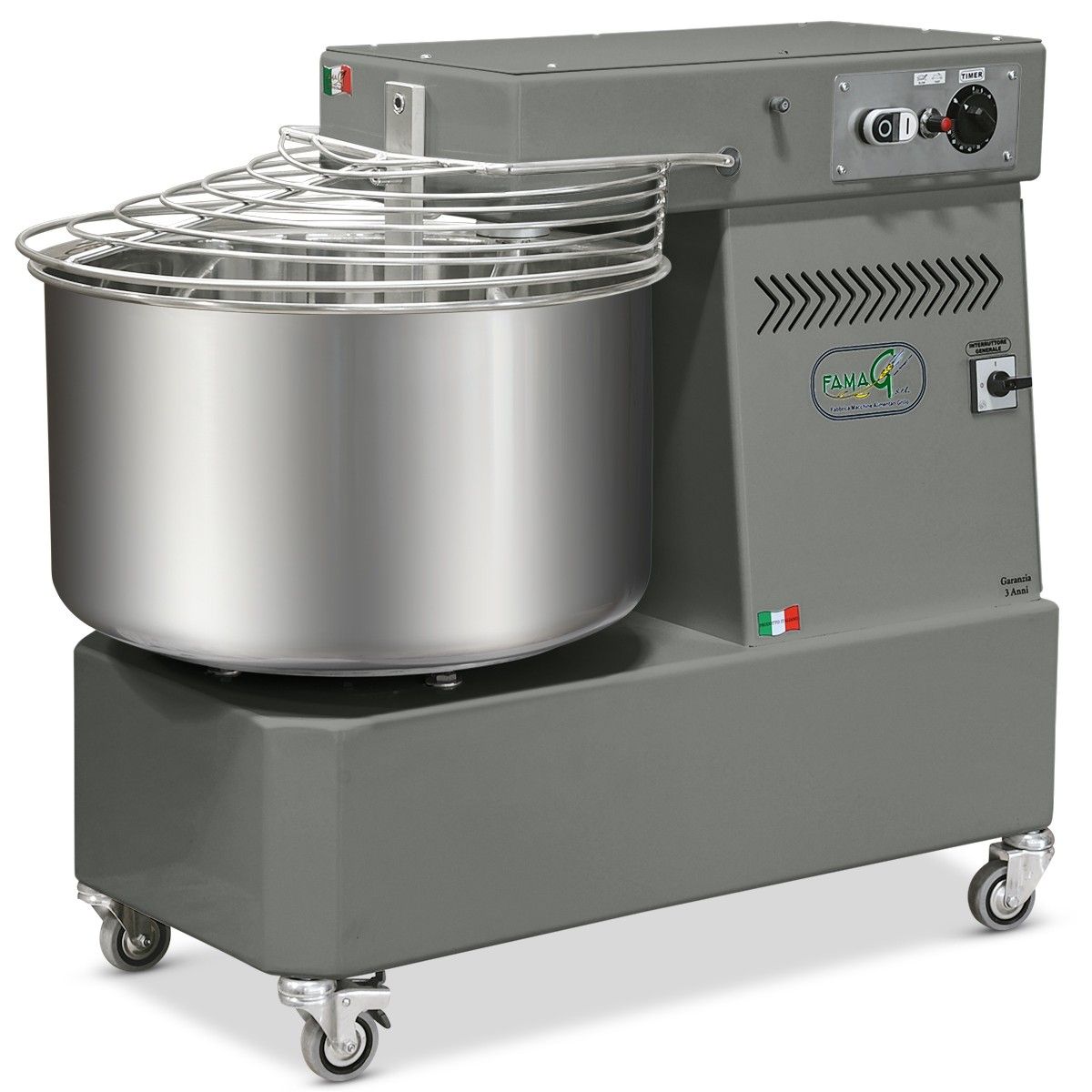

The Famag IM-50 is available in Arctic White or Dark Silver colors. Dark Silver has a pearl finish that has a subtle pearlescent luster.

Click here to see a comparison table of spiral dough mixers.

For more details see the specs tab, above.

Famag IM-50 Spiral Mixer

Bowl Capacity 56 Q (123 L)
Bowl Dimensions (Inside dia. x H) 19.6" x 11.8"
Dough Capacity 11 to 110.2 lbs. (5 to 50 kg)
Flour Capacity 7.7 to 69.4 lbs. (3.5 to 31.5 kg)
Water Capacity 1.84 to 20Q (1.75 to 18.9L)
Industrial Motor 230V, 2200W, 1PH
Dimensions: (W x D x H) 35.8" x 21.3" x 31.5"
Weight 308 lbs.
Lowest Speed Hook 110 RPM, Bowl 12.2 RPM
Highest Speed Hook 270 RPM, Bowl 30 RPM

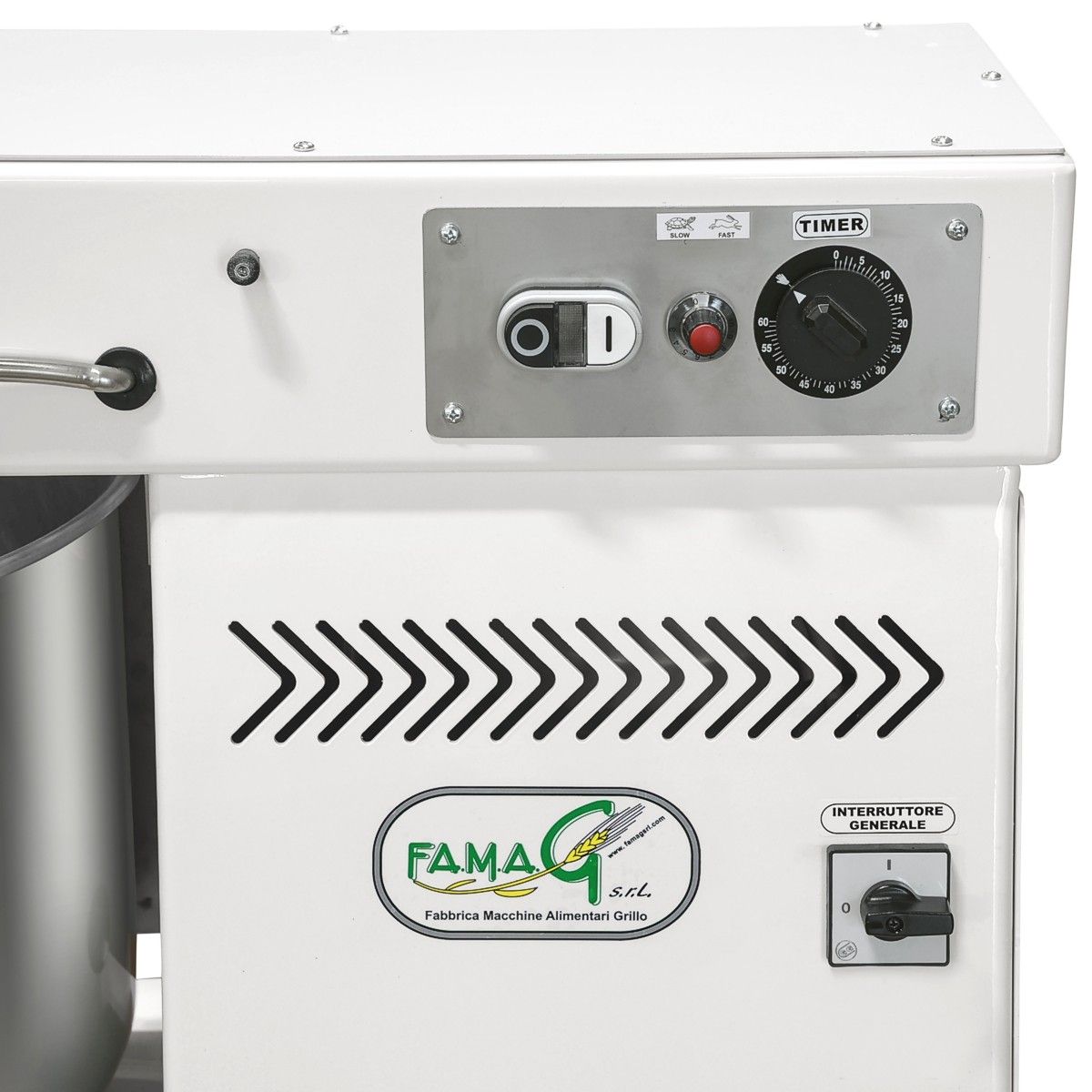

Speed Control Infinitely variable
Kneading Head Lifts Up No
Removable Bowl No
Warranty 3 year commercial or home
The Famag IM-50 kneads up to 110.2 lbs. dough, making it an ideal mixer for bakeries making bread and pizza!

Did we forget something? If you need more information about this product, please tell us what else you'd like to know with a quick email or live chat!

Specs

Select product option(s) from the drop-down menu at top of page to see item-specific specifications here.

Manufacturer Part Number IM-50
Brand Famag
Width 21.3"
Depth Facing control panel, w/bowl: 35.8"
Height 31.5"
Product Weight (lbs.) 308 lb.
Bowl Material Stainless steel
Wheels Yes
Speeds Variable
RPM Slowest: Hook 80, Bowl 8 / Top speed: Hook 240, Bowl 24
Horsepower 3 HP
Volts AC 230
Watts 2200
Hz 60
Phase 1
Cord Length 70"
Cord-End Plug 20 Amp (NEMA 6-20P)
Origin Imported
Commercial Warranty Yes
Warranty Length 3 years
Freight Shipped Yes
