Univ. Bowl with Spur Gear Only

click for
details
This item ships free! Your order could ship free!

Why Buy from PHG?

  • Quality, curated product selection
  • Prompt, personal customer service
  • 100% satisfaction guarantee
Accepted credit cards
Canadian orders by phone! Canadian orders by phone
SKU: CK459, Part Number: 116319 + 019929, Shop more Bosch Mixers items

Description

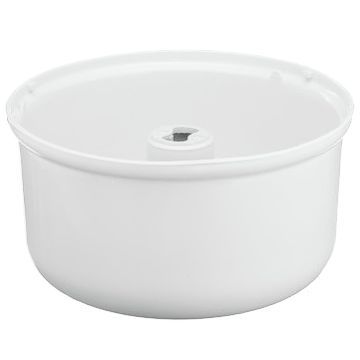

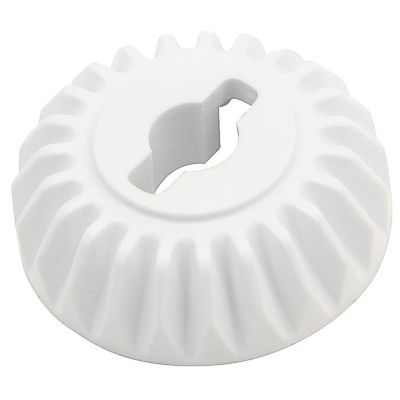

Bowl Shell with Spur Gear only (Item 11-UNBA1): We recommend buying these parts together rather than trying to separate your old spur gear from your old bowl to re-use either one. Assembly is required.

Also... most old spur gears have slots that facilitate removal of the drive shaft. But IF your old spur gear is different from the one shown above, having NO slots for the drive shaft cross pin to slide through for removal, then you have three options regarding the drive shaft assembly. Option #1 is that you can order a whole new drive shaft assembly. Option #2 is that you can remove the small cross-pin at the very top of the shaft with the proper size of punch (not real easy to do unless you have a well-equipped shop) and replace it with a new cross pin. Option #3 is to demolish the old spur gear with a large hammer (and maybe chisel), taking eye-protection precautions and being careful not to damage the drive shaft in the process. By demolishing the spur gear in this way, you can then remove the drive shaft for re-use. No matter which approach you take, be sure tools are used on your machine only by persons who are qualified to use them safely.

Some very early Bosch mixers had bowls on which the pins holding the splash ring onto the bowl were located outside the rim of the bowl. On this newer replacement bowl the attachment points are inside the rim of the bowl. So if you're replacing one of those very old bowls with this newer bowl, you will also need to order a newer-style splash ring and bowl cover.

Fit Guide for This Bosch Item

Bosch Universal Classic mixer Bosch Universal Plus Mixer Bosch Compact mixer Bosch Styline Mixer

Bosch Universal Classic Mixer Bosch Universal Plus Mixer Bosch Compact Mixer Bosch Styline Mixer

To be sure you get the right item, please check the parts page before ordering.

Did we forget something? If you need more information about this product, please tell us what else you'd like to know with a quick email or live chat!

Specs

Manufacturer Part Number 116319 + 019929
Brand Bosch Mixers
Diameter 10.5"
Height 6"
Product Weight 3 lb.
Color White
Material ABS
BPA Free Yes
Capacity 6.5 qt.

Shipping

We stock this product in our Nebraska warehouse. Most of our shipments are by FedEx Ground or Home Delivery and you should receive your order in four business days or less from ship-out. Click here for more information about shipping.
