Meadows Stone Burr Mill, 8 inch

SKU: RZ556 Shop more Meadows Mills items
Rating:
100%
$1,940.00 - $3,140.00
In Stock Vendor shipped by freight, usually ships in 6-8 weeks.
click for
details
This item ships free! Your order could ship free!

Why Buy from PHG?

  • Quality, curated product selection
  • Prompt, personal customer service
  • 100% satisfaction guarantee
Accepted credit cards
Canadian orders by phone! Canadian orders by phone

Description

Meadows Stone Burr Mill, 8 inch

Meadows 8" stone burr mills are available in three configurations, all available on this page:

  • Assembly A is mounted on a compact wood base. Assembly A features bottom discharge. Grain drops into a wood drawer with 6 qt. capacity.
  • Assembly C is mounted on a steel table
  • Assembly MH is sold without mounting base, motor or pulleys.
The Meadows 8" stone burr mill will grind any free-flowing grain into fine whole grain flour, or adjust to crack grain for cereal or Southern style grits, as well as producing any texture between. Meadows mills are simple to operate and built for extremely long life. The stones of the 8" mill turn at 875 RPM for a cool grind that preserves full nutrition and best taste in the flour. These are commercial mills and have been in use for decades in the U.S. and worldwide. This style of mill is also known as a grist mill.

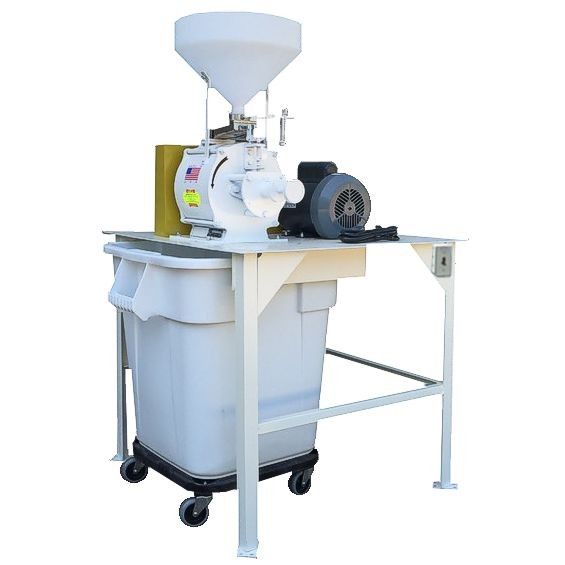

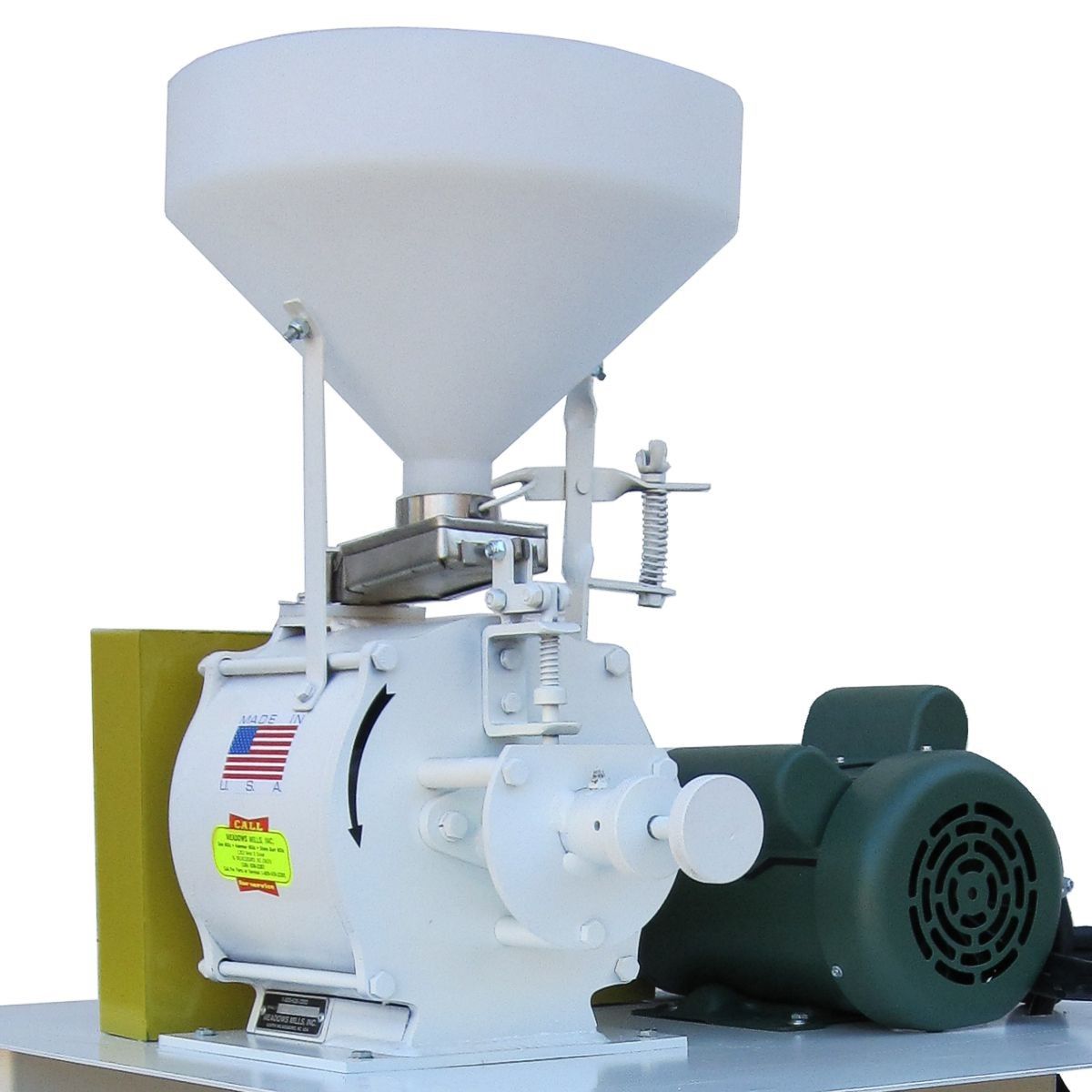

Assembly C is the most popular configuration of Meadows 8" mill and features a 6" x 5" discharge outlet opening that is surrounded by a wraparound steel frame sized to fit a 28 gallon Brute container. This feature allows the operator to slide the Brute container on a dolly in and out and helps protect flour from airborne contamination after the milling process.

Assembly MH mill has bottom discharge. This configuration includes only the mill and hopper. No motor or pulleys or stand are included. The Assembly MH allows you to provide your own power source. Motor must be driven at 875 RPM. Input shaft is 3/4" diameter.

Grinding Speed

All 8" Meadows mills have a grinding speed of 50 lbs/hour wheat, 60 lbs/hour corn (faster for coarser grinds). The 7 quart hopper can be fed from your self-supported overhead bin if you wish. Meadows mills are made in USA with native North Carolina granite stones. Most users get lifetime use from the original stones.

  • “I'm very happy with the Meadows mill. It's trouble-free and easy to run and maintain. It's been a great replacement for the machine we used before, which was always breaking down. There's nothing I'd change about the Meadows.”

    – Tom W., LA

Power Options

Assemblies A and C are available with two motor options: The 1HP model has a 75% duty cycle and comes prewired with On/Off switch, power cord and Nema 5-20p plug end ready to plug into your 120V outlet. A 75% duty cycle means that out of each hour, the mill will grind for 45 minutes, then requires a 15 minute cool-down. The 2HP -220V model has a 100% duty cycle so it can operate continuously. The 2HP model is sold with an On/Off switch, power cord and Nema 6-20p plug and a Nema 6-20r receptacle. The receptacle, if needed, will require a qualified electrician.

Pricing

Pricing is FOB. Please call or e-mail with your Zip Code for a shipping quote. Crating for shipment is $100 in addition to shipping cost.

For overseas use we can configure your Meadows 8" stone burr mill with a motor to meet any electrical requirement. (Cost may vary, please call or e-mail for a quote.) Stone Burr Mills shipped outside the U.S. are shipped unwired and require switch and wiring provided by local qualified electrician.



Motors over 25HP are available for 3-phase power only.

Meadows Stone Burr Grain Mills

Mill Model Capacity in Lbs/Hour
Fine–Coarse Grind
Wheat Corn
8 inch, Assembly C (1 HP/2HP) 100 – 200 50 – 100
8 inch, Assembly A (1 HP/2HP) 100 – 200 50 – 100
8 inch, Assembly MH (1 HP/2HP) 100 – 200 50 – 100
12 inch Standard (5HP/3-phase) 220 – 440 110 – 220
12 inch Standard (5HP/1-phase) 220 – 440 110 – 220
20 inch Standard (10HP/3-phase) 600 – 800 300 – 600
30 inch Standard (25HP/3-phase) 1100 – 2000 550 – 1000
30 inch Standard (30HP/3-phase) 1150 – 2100 575 – 1050
30 inch Standard (40HP/3-phase) 1250 – 2250 625 – 1125


For more details please see the specs tab, above.

Did we forget something? If you need more information about this product, please tell us what else you'd like to know with a quick email or live chat!

Specs

Select product option(s) from the drop-down menu at top of page to see item-specific specifications here.

Brand Meadows Mills
Finish Painted
Housing Material Steel
Burr Material Stone
Origin USA
Commercial Warranty Yes
Warranty Length 1 year motor/90 day mill

Shipping

Select product option(s) from the drop-down menu at top of page to see item-specific specifications here.

Vendor shipped. Typical lead time is a minimum of 8 weeks. Call for availability and for a truck delivery shipping quote based on your zip code, business location with a loading dock and forklift or a business/residential location that requires a lift-gate service. All deliveries are curbside service.
