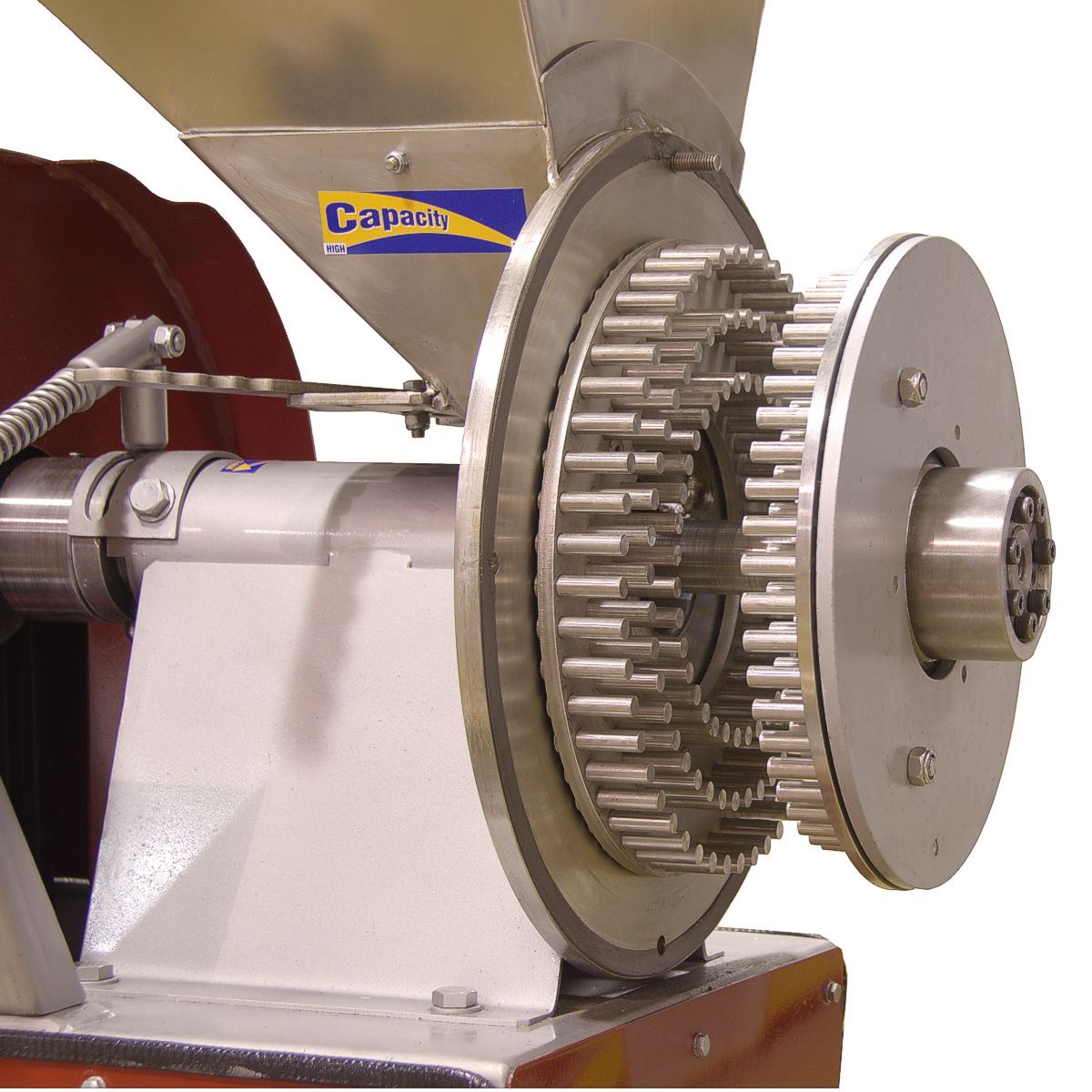

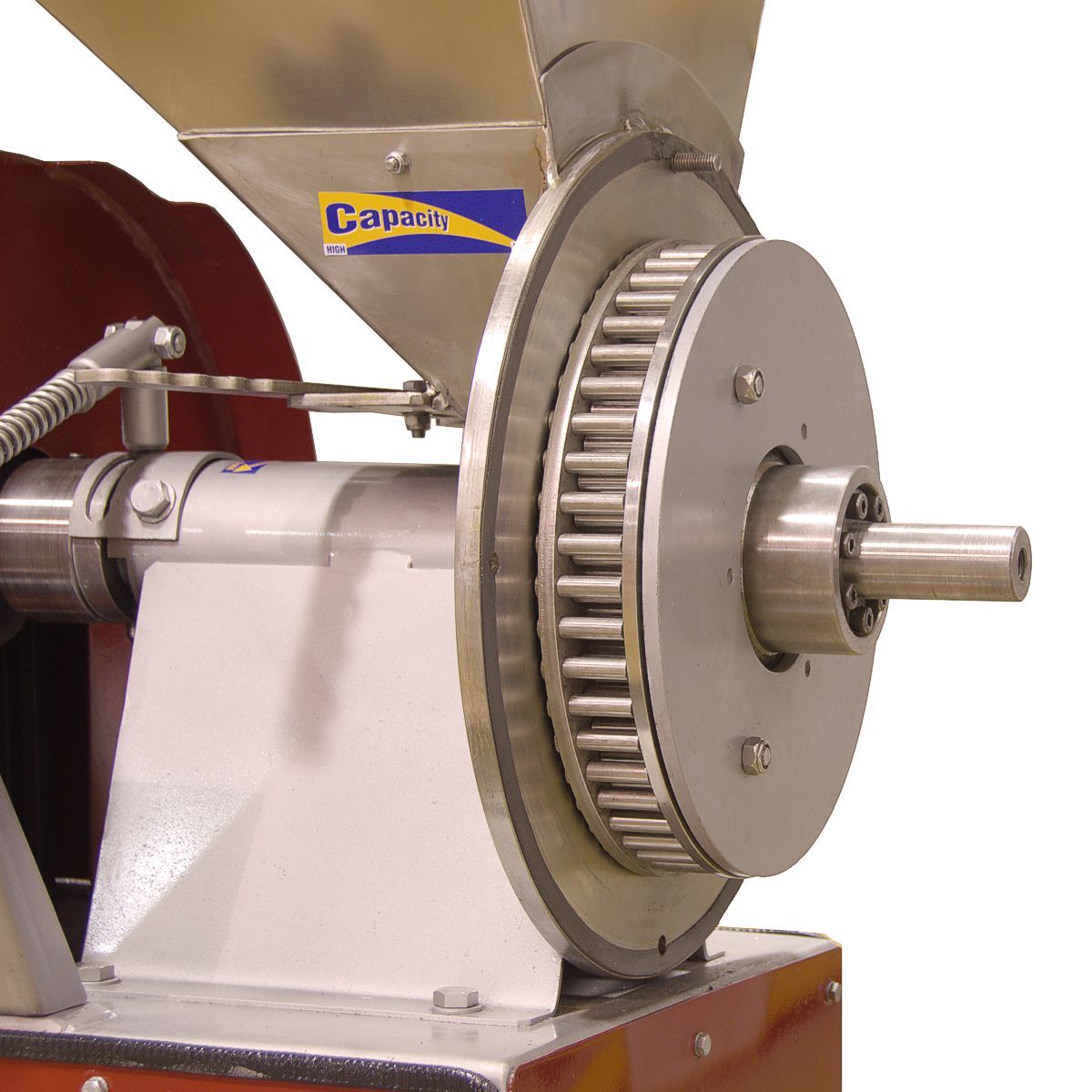

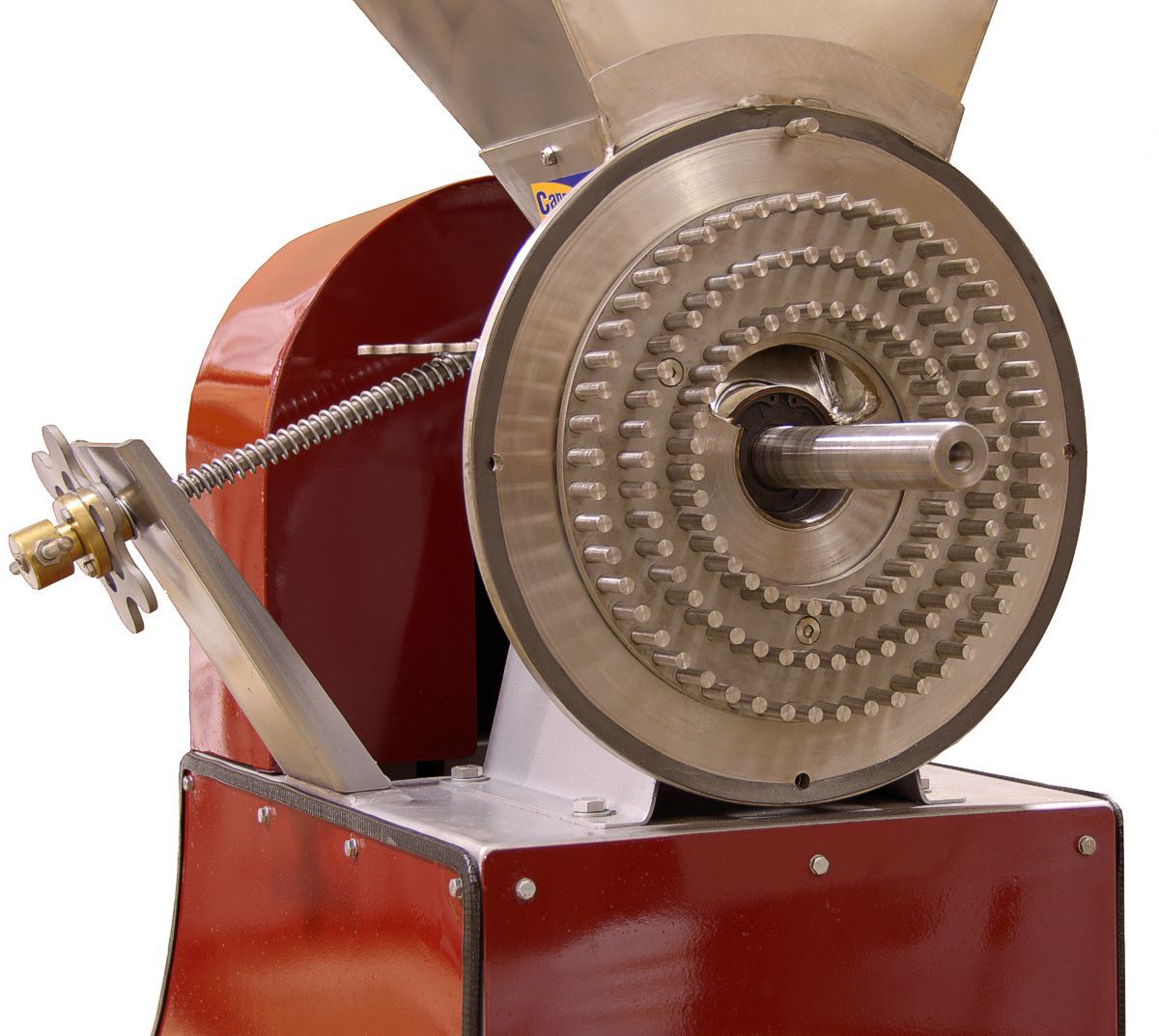

The ABC Hansen pin milling attachment consists two plates, one stationary and one rotating. Both the plates and the pins are made of grade 304 stainless steel. The fixed plate has three rows of pins: 50 pins in the outer row, 43 pins in the middle row and 37 pins in the inner row. The rotating plate also has three rows of pins: 50 pins in the outer row, 33 pins in the middle row and 21 pins in the inner row. Each pin is 0.4" in diameter with an exposed length of 1.25”. The pins are removable and replaceable.
The pin milling attachment operates on the ABC Hansen Universal Mill at either 2,800 or 4,000 rpms. The design and pin placement tolerance allows for small, granulated products like sugar, salt, or dry spices to be milled to a finer powder consistency. No screens are used. Product is fed into the center of the milling heads from the hopper of the Universal Mill. Centrifugal force hurls particles outward where they're impacted by the pins as well as encountering autogenous particle-on-particle impacts, resulting in rapid and efficient particle size reduction in a wide range of brittle or friable materials.
“Your exceptional courtesy, attention to detail, and sincere helpfulness are rare indeed.”– Paula Marie Finstad, FL
Milling rates will vary. Operating at 2,800 rpms, milling rates will be up to 1,500 pounds per hour with coarser milling results. Operating at 4,000 rpms, milling rates will be up to 1,100 pounds per hour with finer milling results.
Test grinding: Pleasant Hill Grain has extensive milling experience and can make recommendations for a wide range of grinding needs. We can also test-mill samples of your materials. Due to the wide range of configuration options, orders for the ABC Disc Mill are taken by phone. Please call 866-467-6123 during business hours (see link on this page for hours) to consult with a member of our commercial milling team. We would appreciate your business, and look forward to serving you.
