Foot Switch 220V

SKU: EA475

3 Reviews

Features

Oversized guard opening (5.4" H & 5.9" W inside)
Heavy-duty base with 5 mounting hole options
3/4"-14 N.P.T. threaded conduit entry in back
Powder-painted Safety Orange
3M® bumper feet

Why buy from PHG?

Quality, curated product selection

100% satisfaction guarantee

Prompt, personal customer service

Canadian orders by phone

Questions? 1-866-467-6123

This item ships FREE

More details

$129.99 - $149.99

In stock Usually ships in 1-3 business days.

Power

1 Phase

3 Phase

Description

Ingredients

Specs

Use & Care

Shipping

Accessories

Reviews (3)

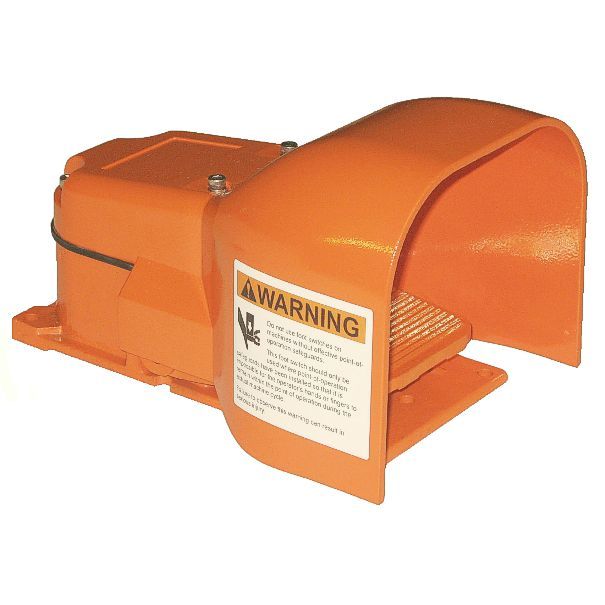

Foot Switch 220V

From $129.99

Foot Switch 220V

Heavy Duty 220v Foot Switch: This foot switch can be used to turn on/off our 220 volt single phase meat grinders, allowing operator free use of hands. Especially useful when stuffing sausage. Ruggedly built for long life with cast iron housing, nonskid base pad and molded nylon actuating cam. This foot switch is NOT PREWIRED, and installation requires electrical skills. Switch is momentary type, meaning that, when properly wired, power is supplied to meat grinder while pedal is held down and power is cut off when pedal is released. Rated 20 amps maximum. Dimensions: 9.2"L x 6.2W" x 5.5H". Wt. 5 lbs. Proven durable over years of use. This foot switch has integral cover.

Side cover flaps help protect pedal lever and shaft from oil, solvents, and water
High-capacity 20-amp Honeywell Microswitch® or Omron® switches
Suitable for both indoor and outdoor use when properly connected (enclosure rating 2, 4, & 13)

Good service is just unheard of anymore—you’ve been a breath of fresh air.

Rick Bischoff, CO

Great product line, your site is easy to navigate and use. Don't change a thing, I'll be back!

Alice Perea, MO

My order arrived almost instantly, which was a great surprise. Thanks so much!

Carolyn Fabricant, MA

Fast shipping and exactly as represented, buy with confidence!

John R., NY

If your shipping was any faster the box would have caught on fire.

Don H., PA

Perfect... and lightning fast shipment!

Charles R., IL

You can never go wrong by buying from Pleasant Hill Grain. Great company.

Carol T., GA

I have been doing business with Pleasant Hill for years and have never had a complaint.

Priscilla P., SD

There is nothing not to like about Pleasant Hill. Your website is easy to use, service is prompt, what more could you want?

Marla J., WA

I’ve never seen such quick delivery for a product ordered online! Wow!

Mikel P., ND

You have no worries when you order products from this company! Exactly how it should be everywhere!

Eddie H., WI

Found Pleasant Hill Grain by chance and you're my go-to place for supplies now. In this crazy world, PHG is steady. Best products, always.

Maryellen T., NJ

You are my favorite retailer and set the mark for all others.

Allen F., MT

We soooo enjoyed stopping by yesterday and seeing the store. We had excellent, polite service. Keep rockin' it in Hampton. Make Nebraska proud.

Alan and Mary Deterding

Did we forget something?

If you need more information about this product, please tell us what else you'd like to know with a quick email or live chat.

Specs

Select product option(s) from the drop-down menu at top of page to see item-specific specifications here.

Brand

SSC Controls

Color

Orange

Length

9.2"

Width

6.2"

Height

5.5"

Weight (lbs.)

Material

Steel

Volts AC

220

Amps

Phase

1, 3

Origin

USA

Certifications

CSA, UL

Warranty Length

1 year

Country of Manufacture

United States

Shipping

Select product option(s) from the drop-down menu at top of page to see item-specific specifications here.

We stock this product in our Nebraska warehouse. Most of our shipments are by FedEx Ground or Home Delivery and you should receive your order in five business days or less from ship-out. Click here for more information about shipping.

Customer reviews

PHG provides product-giveaway sweepstakes entries to all submitters of reviews, a program which also accepts entries without purchase. Take advantage of this program for repeated opportunities to win great PHG products! Nature of review does not influence odds of winning. Full contest rules are available here. All reviews are by verified buyers.

Please purchase this product to submit a review.

Overall Rating:

3 reviews

Login

Your email address

Your password

Sort by

3 reviews

Grinder for Foot-Switch does the job

By Jonathan P. in WI on 8/31/2018 Verified Buyer

I purchased the 220V foot-switch for my Hobart meat grinder for retail store use. Easy to take apart outside casing, hooked up and installed in minutes. No issues!

AAA excellent

By Paul S. in IL on 8/04/2018 Verified Buyer

AAA excellent quality and fast shipping

Hobart Mixer/Grinder Foot Switch

By Javier C. C. in OR on 4/05/2016 Verified Buyer

A heavy duty piece of equipment for commercial use. Hobart no longer supports this foot switch for their older model mixer/grinder machine. Installed with out any problems.
