Automatic Roller Mill

click for
details

This item ships free! Your order could ship free!

Why Buy from PHG?

Quality, curated product selection
Prompt, personal customer service
100% satisfaction guarantee

Canadian orders by phone

Questions? 1-866-467-6123

SKU: DG594

$6,800.00 - $9,995.00
In Stock Vendor shipped by freight, usually ships in 1 week.

Model:

Quantity:
- Add to Wishlist

"Above all, we’re very pleased with your courteous and honest service to us. I’m such a critic that when I praise something, it merits high praise indeed. I wouldn't bother to write this if I was not so favorably impressed."
— Ed Casey, CA

Features

Features

Precise roll corrugation for uniform particle size
Compact design
Economical low HP requirements
Heavy-duty rolls
Auger options for discharge
Fast-roll belt drive
Adjust roll gap with a single lever

Description
Specs
Shipping
Reviews

Description

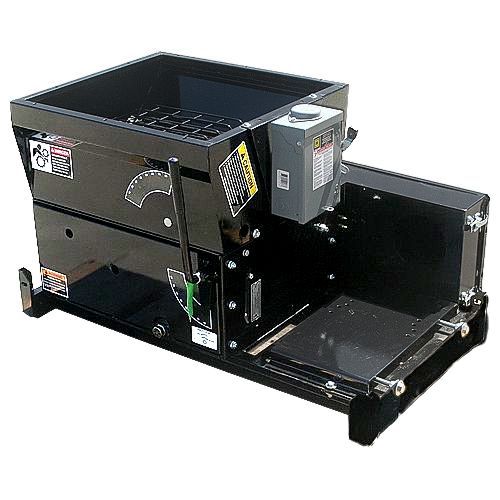

Automatic Roller Mill

Automatic's electric roller mills use parallel, corrugated steel rolls to produce precise particle size—every time. Automatic's one-fast-roll principle gives more capacity at up to a third less horsepower than with hammer mills. It also provides a self-cleaning action that prevents clogging or packing. Compared to the high heat often created by hammer mills, the Automatic commercial roller mill creates negligible heat in your product. Automatic commercial roller mills are built better to last longer.

Economical and versatile, this low profile commercial roller mill is the ideal all-purpose roller mill. It's low enough to mount under discharge outlets of storage structures.

“If your shipping was any faster the box would have caught on fire.”

– Don H., PA

Automatic Mills are ideal for:

Barley
Wheat
Oats
Corn (maize)
Many other materials

Prices do not include motor or motor starter. Prices include shipping to U.S. 48-state locations.

For more details please see the specs tab, above.

Roller Mill Specs
*Not including motor or starter
LPM 200	3-5	6" x 8"	42" x 24" x 31.5" (LxWxH)	370 pounds*	1,100-5,700 microns
LPE 500	5-7.5	9" x 10"	48" x 28" x 32.5" (LxWxH)	530 pounds*	1,100-5,700 microns

*Not including motor or starter

Roller Mill Specs

Model

Motor HP

Roll Size

Dimensions

Weight

Output Fineness

LPM 200

3-5

6" x 8"

42" x 24" x 31.5" (LxWxH)

370 pounds*

1,100-5,700 microns

LPE 500

5-7.5

9" x 10"

48" x 28" x 32.5" (LxWxH)

530 pounds*

1,100-5,700 microns

Milling Rate for Oats, Barley & Wheat
Capacities are approximate and will vary depending on moisture content of grain.
*Not applicable
Grooves Per Inch	10 GPI	8 GPI	6.5 GPI	4 GPI
LPM 200, 5HP	80 bsh/hr, 2300 µ	90 bsh/hr, 7360 µ	100 bsh/hr, 4600 µ	N/A*
LPE 500, 7.5HP	160 bsh/hr, 2300 µ	180 bsh/hr, 7360 µ	200 bsh/hr, 4600 µ	N/A*

Capacities are approximate and will vary depending on moisture content of grain.

*Not applicable

Milling Rate for Oats, Barley & Wheat

Measured in bushels per hour & micron consistency

Grooves Per Inch

10 GPI

8 GPI

6.5 GPI

4 GPI

LPM 200, 5HP

80 bsh/hr,
2300 µ

90 bsh/hr,
7360 µ

100 bsh/hr,
4600 µ

N/A*

LPE 500, 7.5HP

160 bsh/hr,
2300 µ

180 bsh/hr,
7360 µ

200 bsh/hr,
4600 µ

N/A*

Milling Rate for Dry Corn
Capacities are approximate and will vary depending on moisture content of grain.
Grooves Per Inch	10 GPI	8 GPI	6.5 GPI	4 GPI
LPM 200, 5HP	140 bsh/hr, 1100 µ	160 bsh/hr, 1400 µ	180 bsh/hr, 1800 µ	250 bsh/hr, 2300 µ
LPE 500, 7.5HP	250 bsh/hr, 1100 µ	290 bsh/hr, 1400 µ	330 bsh/hr, 1800 µ	450 bsh/hr, 2300 µ

Capacities are approximate and will vary depending on moisture content of grain.

Milling Rate for Dry Corn

Measured in bushels per hour & micron consistency

Grooves Per Inch

10 GPI

8 GPI

6.5 GPI

4 GPI

LPM 200, 5HP

140 bsh/hr,
1100 µ

160 bsh/hr,
1400 µ

180 bsh/hr,
1800 µ

250 bsh/hr,
2300 µ

LPE 500, 7.5HP

250 bsh/hr, 1100 µ

290 bsh/hr, 1400 µ

330 bsh/hr, 1800 µ

450 bsh/hr, 2300 µ

Pleasant Hill Grain is a leader in small scale milling solutions for a wide range of particle-reduction needs. Please call us to discuss your specific requirements.

Did we forget something? If you need more information about this product, please tell us what else you'd like to know with a quick email or live chat!
