Parts overview page for Kuhn Rikon Duromatic pressure cookers
(Very long page, please scroll down.)
To order parts:
Please click-through to individual item pages, using the "Click for product" links listed below.
Click link below to go to parts section for these Kuhn Rikon attachments:
Mechanical Parts
Kuhn Rikon UL/SI Valve 1565: Click for product.
UL/SI Valve #1565: Fits all models. This part measures about 3/4" in diameter at its widest point. Fits all models. The blue parts are silicone rubber. To replace, just push old valve out of the lid by pushing from the top side of the lid, and press the new valve into the hole from the underside of the lid so that the spring is visible on the bottom side of lid. This valve typically needs to be replaced only when steam starts to escape through it during normal cooking, causing pressure loss.
Kuhn Rikon O-Ring 3221: Discontinued by Kuhn Rikon.
Kuhn Rikon O-Ring 1554: Click for product.
O-Ring #1554: Fits valves for all models, including Turn Top cookers and TIMAX models. (TIMAX model cookers are not sold in the U.S.) This is the O-Ring that fits either the 1485 valve, or the 3850 valve. (Note that if you buy the complete valves, the O-ring is included.) This item is NOT the lid gasket... for lid gaskets see below.
Kuhn Rikon Valve Caps Pair, 1488: Click for product.
Valve Caps #1488: This is the little plastic cap that fits on top of the pressure valve, and this one is for current models. This part measures about 9/16" in diameter. Threaded hole on the underside simply screws onto the top of the valve stem. Sold only as a pair. Note the shape: These have a straight-sided cylindrical shape, and the shape is how you should identify whether this is the cap needed for your cooker.
Kuhn Rikon Valve Caps 3853: Click for product.
This is the little plastic cap that fits on top of the pressure valve, and this one is for older models. This part measures about 7/8" in diameter. Threaded hole on the underside simply screws onto the top of the valve stem. Sold only as a pair. Note the shape: These have tapered sides, and the shape is how you should identify whether this is the cap needed for your cooker.
Kuhn Rikon Valve 1485: Click for product.
Complete Pressure Valve Model 1485 Fits These Recent Models | ||||||||
3033 | 3043 | 3044 | 3050 | 3064 | 3068 | 3147 | 3266 | 3326 |
3327 | 3341 | 3342 | 3343 | 3344 | 3346 | 3347 | 3350 | 3412 |
30321 | 30331 | 30330 | 30333 | 30407 | 30408 | 30470 | 30471 |
Kuhn Rikon Valve 3850: Click for product.
Note the cone-shaped cap that distinguishes this valve from the one displayed above.
Complete Pressure Valve Model 3850 Fits These Pre-1999 Models | |||||||
3000 | 3003 | 3005 | 3006 | 3008 | 3046 | 3047 | 3051 |
3065 | 3069 | 3140 | 3141 | 3142 | 3143 | 3144 | 3145 |
3146 | 3266 | 3350 | 3351 | 3352 | 3353 | 3400 | 3412 |
3745 | 3746 | 3768 | 3769 | 3880 | 3881 | 3882 |
Kuhn Rikon Pressure Indicator w/Spring, 3851: Click for product.
This is the pressure indicator for all models except DM Top and TIMAX models.
Kuhn Rikon Valve Spring 3122, Pair: Click for product.
Valve Spring #3122: Fits valves for all models of cookers except the "Turn Top" cooker models and the TIMAX models. (TIMAX model cookers are not sold in the U.S.) Sold as quantity of two. This is the spring that fits either the 1485 valve, or the 3850 valve. (Note that if you buy the complete valves, the spring is included.)
Valve Spring 1553: Click for product.
Sold as quantity of one.
Valve Spring Model 1553 Fits Valve for These "Turn Top" Cooker Models | |||
3140 | 3141 | 3142 | 3274 |
3275 | 3914 | 3916 | 3918 |
Kuhn Rikon Valve Stem w/Spring for Turn-Top & TIMAX Models, 1701: Click for product.
Kuhn Rikon Model 1701 Valve Stem Fits These Models Made Since 2000 | |||
3140 | 3141 | 3142 | 3274 |
3275 | 3914 | 3916 | 3918 |
Kuhn Rikon Valve Cap 1751: Click for product.
Valve Cap #1751: This is the cap for the "Turn Top" models.
Kuhn Rikon Valve Cap 1752: Click for product.
Duromatic Top Valve Housing #1752: This is the top valve housing for the "Turn Top" models.
Kuhn Rikon Valve Housing 1621: Click for product.
Valve Housing #1621: This is the valve housing that fits on top of the lid, on current models. It also functions as the steam deflector. It clips into place over the valve cap. Note the shape: This item has a conical shape. (If your housing is "bell" shaped, see item 3852 below, instead.) Diameter is 3-3/4".
Kuhn Rikon Blue Plastic Valve Housing for Anniversary Model, 1491: Click for product.
Kuhn Rikon model 1491 plastic valve housing fits the Anniversary Cooker, model 3147.
Kuhn Rikon Valve Housing 3852: Click for product.
Valve Housing #3852: This is the valve housing that fits on top of the lid, on "Hotel model" cookers, and also on some earlier models. It also functions as the steam deflector. Simply unscrew the valve cap to install this valve housing. Note the shape: This item has a "bell" shape. Diameter is 2-3/8".
Fits models: 3000, 3003, 3005, 3006, 3008, 3046, 3047, 3051, 3065, 3069, 3142, 3144, 3145, 3146, 3266, 3350, 3352, 3353, 3400, 3745, 3746, 3768, 3769, 3880, 3881 and 3882.
Lid w/Long Handle 22cm, 1901: Click for product.

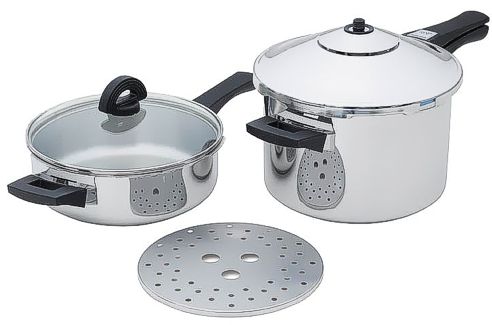

Complete Lid #1901: This lid fits the Duo Set pots made since November 2006. It includes lid gasket, valve and valve housing.
Lid w/Short Handles 22cm, 1903: Click for product.
Complete Lid #1903: This lid fits the following 22cm cooker models: 3039, 3042, 3043, 3044 made after November 2005. It includes lid gasket, valve and valve housing.
Lid w/Short Handles 22cm, 1666: Click for product.
This lid fits the following 22cm cooker models: 3150 (model 3150 is the Trio Set), 3043, 3044, 3064, 3326, 3343. Lid is complete including lid gasket, valve and valve housing. This lid fits cookers made prior to November 2005.
Lid Gaskets
Kuhn Rikon recommends replacing lid gaskets annually.
Kuhn Rikon Gasket 20 cm: Click for product.
Kuhn Rikon Gasket 22 cm: Click for product.
Kuhn Rikon Gasket 24 cm: Click for product.
Kuhn Rikon Gasket 28 cm: Click for product.
You can order gaskets by model number for current models. (For older models: The gasket sizes refer to the diameter across the inside edge of the gasket itself, not the diameter of the cooker. To convert from inches to centimeters, multiply inches x 2.54.)
Gaskets should be replaced periodically, as they will harden over time and stop working (which will cause seal loss, and your cooker won't work.) It's easiest to order a spare with your cooker, and it's also good to have a backup in case yours gets nicked or damaged by a stove burner, etc.
20 cm Gasket (Item #1657): Fits #3050, 3147 & 3914.
22 cm Gasket (Item #1501): Fits #1588, 3043, 3044, 3047, 3064, 3068, 3342, 3344, 3916 & 3918.
24 cm Gasket (Item #1502): Fits #3346, 3347, 30407 & 30408.
28 cm Gasket (Item #1503): Fits #3266, 3350, 3412, 30331 & 30333.
Pan & Lid Handles
Kuhn Rikon Screw-On Lid Handle, 1427: Click for product.
Kuhn Rikon Model 1427 Screw-On Lid Handle Fits These Pre-2005 Models | |||||||
1588 | 300 | 3003 | 3005 | 3006 | 3008 | 3029 | 3030 |
3041 | 3046 | 3047 | 3050 | 3051 | 3052 | 3065 | 3068 |
3069 | 3140 | 3141 | 3142 | 3143 | 3144 | 3145 | 3146 |
3147 | 3327 | 3341 | 3342 | 3344 | 3346 | 3400 | 3768 |
3769 | 3723 | 3880 | 3881 | 3882 |
Kuhn Rikon Screw-On Pan Helper Handle, 1486: Click for product.
Kuhn Rikon Model 1486 Screw-On Pan Helper Handle Fits These Models Made Before Nov. 2005 | ||||||
1588 | 3003 | 3005 | 3008 | 3029 | 3046 | 3051 |
3069 | 3140 | 3142 | 3143 | 3144 | 3145 | 3327 |
3341 | 3342 | 3344 | 3723 | 3880 | 3881 | 3882 |
Kuhn Rikon Screw-On Pan Handle, 1487: Click for product.
Kuhn Rikon Model 1487 Screw-On Pan Handle Fits These Models Made Before Nov. 2005 |
|||||||
3000 | 3005 | 3006 | 3008 | 3029 | 3039 | 3040 | 3041 |
3046 | 3047 | 3050 | 3051 | 3052 | 3065 | 3069 | 3140 |
3141 | 3142 | 3143 | 3144 | 3145 | 3147 | 3150 | 3321 |
3327 | 3341 | 3342 | 3344 | 3880 | 3881 | 3882 |
Kuhn Rikon Screw-On Pan Helper Handle, 1489: Click for product.
Kuhn Rikon model 1489 Screw-On Pan Helper Handle fits these models: 3005, 3029, 3050, 3065, 3039.
Kuhn Rikon Screw-On Pan Helper Handle, 1497: (Discontinued by the manufacturer).
Kuhn Rikon model 1497 Screw-On Pan Helper Handle fits these models: 3914, 3916, 3918.
Kuhn Rikon Screw-On Pan Handle for Frypans, 1637: Click for product.
Kuhn Rikon model 1637 Screw-On Pan Handle for Frypans fits these models made before Nov. 2005: 1588, 3068, 3327, 3346.
Kuhn Rikon Pan Handle for Turn-Top Models, 1705: Click for product.
Kuhn Rikon Model 1705 Pan Handle for Turn-Top Models fits: 3140, 3141, 3142, 3914, 3916, 3918.
Kuhn Rikon Lid Handle for Top Models, 1706: Click for product.
Kuhn Rikon Model 1706 Lid Handle for Automatic-Release Turn-Top Models fits: 3914, 3916, 3918.
Kuhn Rikon Screw-On Pan Handle, 1755: Click for product.
Kuhn Rikon Model 1755 Screw-On Pan Handle Fits These Models Made Since Nov. 2005 | |||||
3003 | 3039 | 3045 | 3050 | 3068 | 3076 |
3147 | 3342 | 3344 | 3346 | 3922 |
Kuhn Rikon Screw-On Lid Handle, 1756: Click for product.
Kuhn Rikon Model 1756 Screw-On Lid Handle fits all models made since Nov. 2005 except for Anniversary Cookers made between Nov. 2005-Jan. 2006. Fits models: 3050, 3068, 3147, 3342, 3344, 3346, DUO.
Kuhn Rikon Screw-On Pan Helper Handle, 1757: Click for product.
Kuhn Rikon Model 1757 Screw-On Pan Helper Handle Fits These Models Made Since Nov. 2005 | |||||
3003 | 3043 | 3044 | 3048 | 3049 | 3050 |
3064 | 3068 | 3342 | 3346 | 3347 | DUO |
Kuhn Rikon Screw-On Lid Side-Grip Handle, 1758: Click for product.
Kuhn Rikon Model 1758 Screw-On Lid Side-Grip Handle fits these models made since Nov. 2005: 3043, 3044, 3048, 3049, 3343, 3347.
Kuhn Rikon Side-Grip Handle, 1495: (Discontinued by Kuhn Rikon)
Kuhn Rikon Model 1495 Side-Grip Handle fits these models made prior to Nov. 2005: 3043, 3044, 3048, 3049, 3343, 3347.
Kuhn Rikon Screw-On Lid Side-Grip Handles, 1824: Click for product.
Kuhn Rikon Model 1824 Screw-On Lid Side-Grip Handles fit these Family-style models made since Jan. 2007: 30330, 30331, 30333.
Kuhn Rikon Screw-On Pan Side-Grip Handle, 1825: Click for product.
Kuhn Rikon Model 1825 Screw-On Pan Side-Grip Handle Fits These Models Made Since Jan. 2007 | ||||
30330 | 30331 | 30333 | 30470 | 30471 |
3266 | 3350 | 3351 | 3412 |
Kuhn Rikon Pin w/Spring for Lid Side-Grip Handles, 1417: Click for product.
Kuhn Rikon Model 1417 Pin w/Spring Fits These Models | |||||||
3148 | 3149 | 3274 | 3275 | 3351 | 3352 | 3353 | 3745 |
3746 | 3768 | 3769 | 30321 | 30407 | 30408 | 30470 | 30471 |
Kuhn Rikon Pin w/Spring for Hotel Side-Grips Handles, 1506: Click for product.
Kuhn Rikon Model 1506 Pin w/Spring Fits These Models | ||
3266 | 3350 | 3412 |
Kuhn Rikon Pin w/Spring for Long Handles & Hotel Side-Grip Handles, 1534: Click for product.
Kuhn Rikon Model 1534 Pin w/Spring Fits These Models | ||||||||
3000 | 3003 | 3005 | 3006 | 3008 | 3029 | 3039 | 3043 | 3044 |
3046 | 3047 | 3050 | 3051 | 3064 | 3065 | 3068 | 3069 | 3119 |
3140 | 3141 | 3142 | 3143 | 3144 | 3145 | 3146 | 3147 | 3326 |
3327 | 3341 | 3342 | 3343 | 3344 | 3346 | 3347 | 3400 | 3880 |
3881 | 3882 | 3914 | 3916 | 3918 | 30330 | 30331 | 30333 |
Miscellaneous parts
Kuhn Rikon Flame Protector 28cm: Click for product.
Kuhn Rikon Flame Protector 24cm: Click for product.
Our flame tamer will protect your smaller pressure cooker and your gasket on gas stoves. Especially recommended for the shallow Pressure Frypans, but equally effective for all other pressure cookers, stainless and copper cookware. The disk captures heat that would otherwise go up the sides of your pot, and directs it into the base of the pan, where it is quickly and efficiently absorbed. 11-inch diameter for added stability and energy efficiency for small pots. Coated for easy cleaning.
Flame Tamer 28cm (11") (Kuhn Rikon Item #2080)
Flame Tamer 24cm (9.5") (Kuhn Rikon Item #2081)
