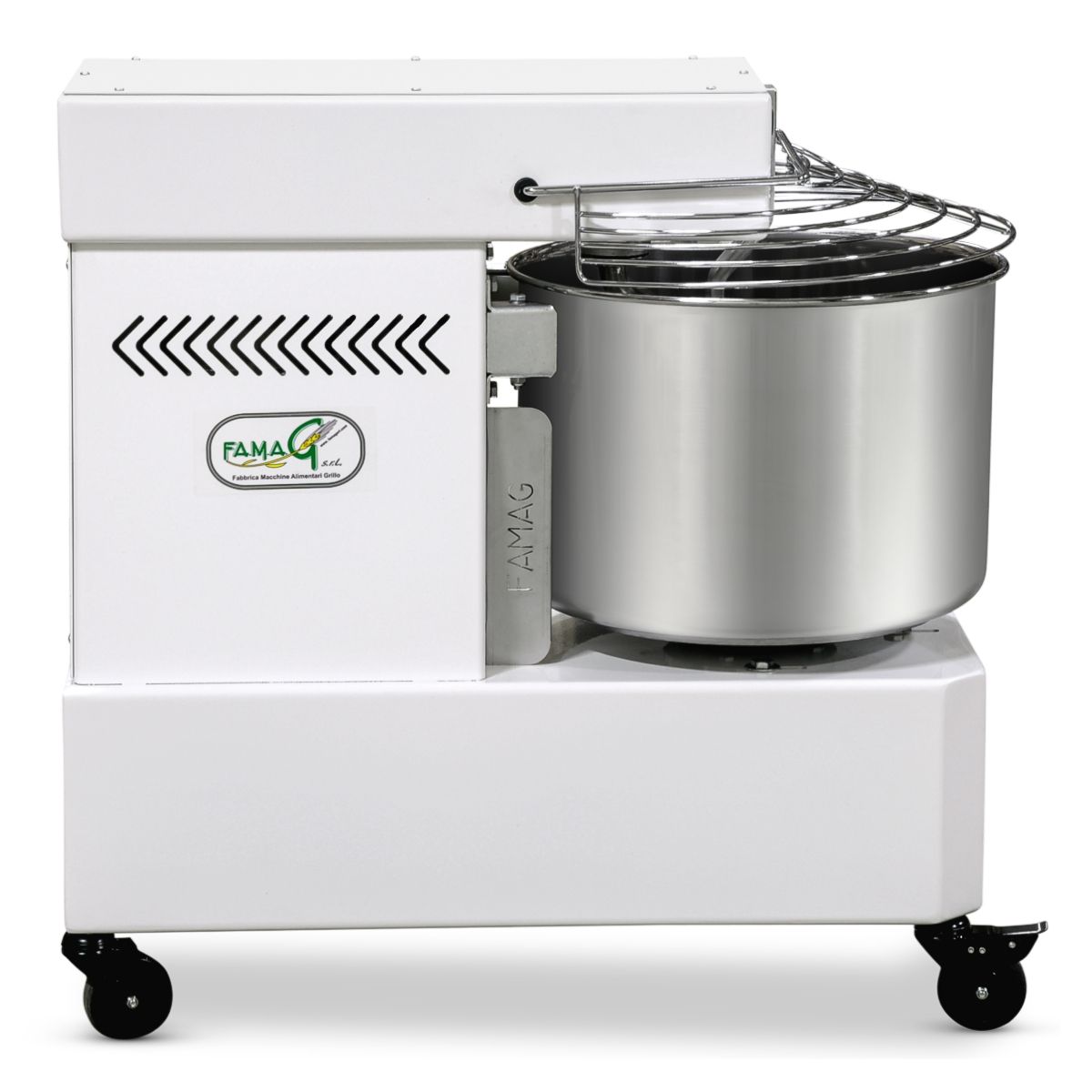

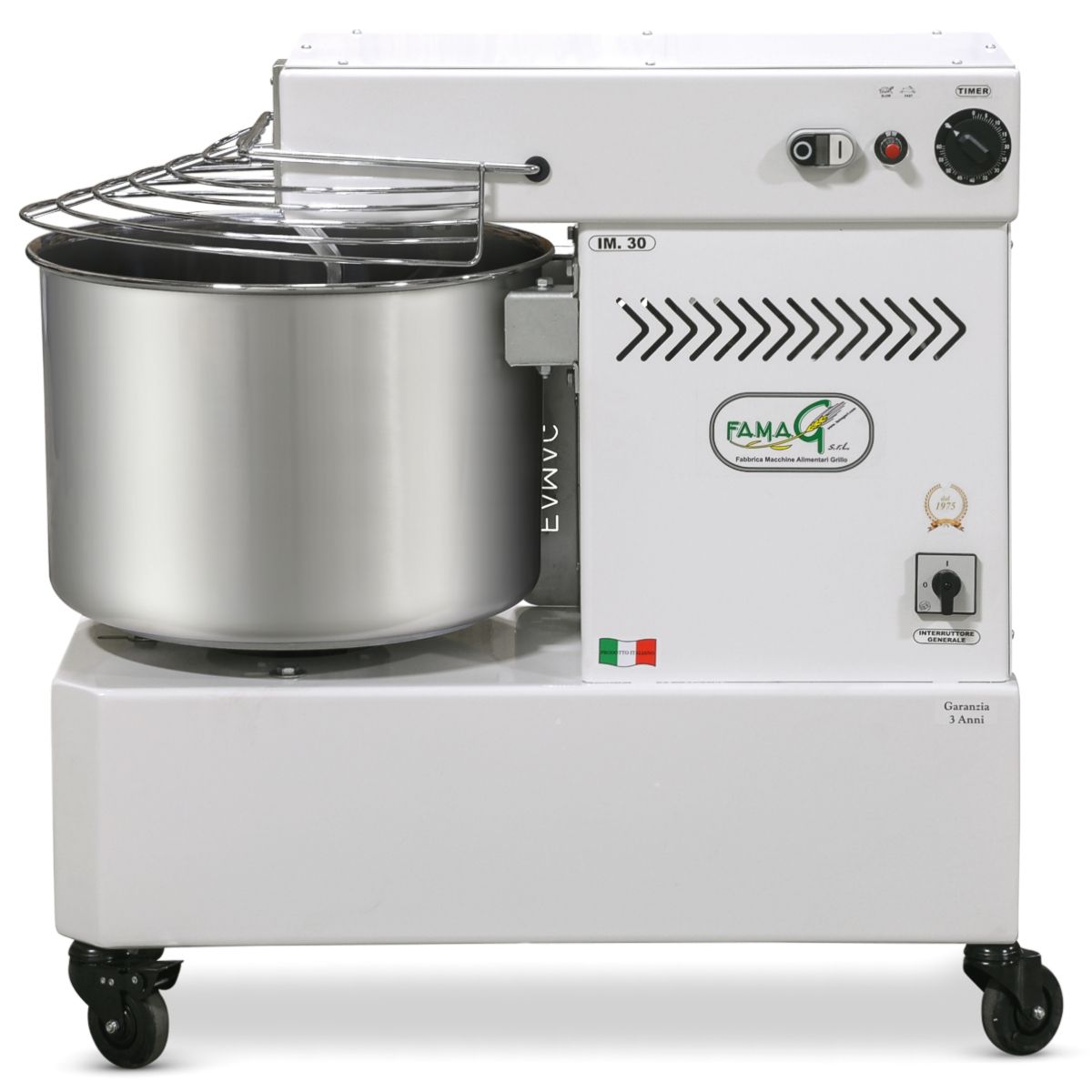

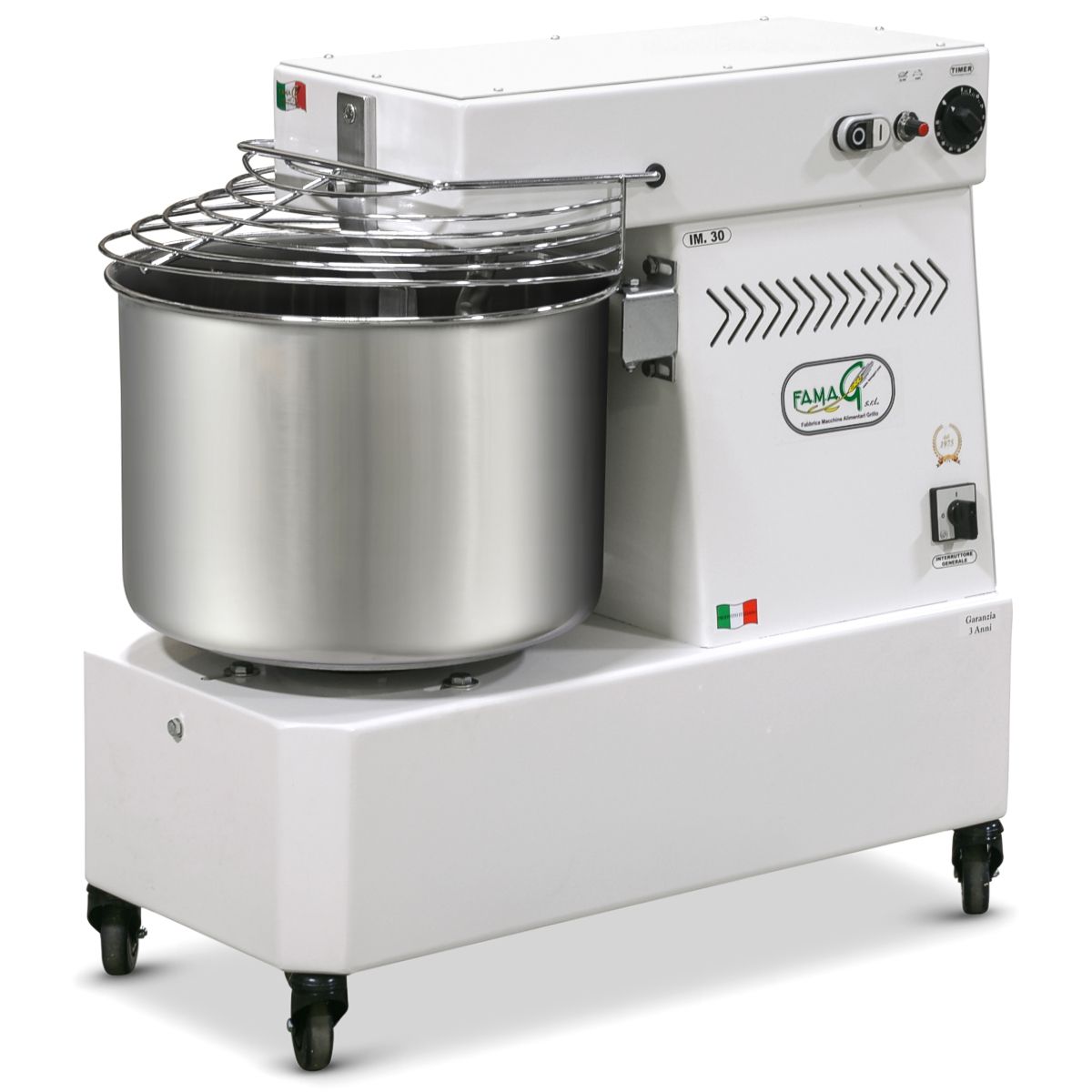

Famag IM-30 Spiral Dough Mixer

SKU: DX374 , Part Number: IM-30 , Shop more Famag items
$3,999.00
In Stock Ships by freight in 4-5 business days.
click for
details
This item ships free! Your order could ship free!

Why Buy from PHG?

  • Quality, curated product selection
  • Prompt, personal customer service
  • 100% satisfaction guarantee
Accepted credit cards
Canadian orders by phone! Canadian orders by phone
  • Spiral mixing action
  • Gentle, low-oxidation kneading
  • Doesn't heat dough
  • Integrated dough breaker bar
  • Power rotating bowl
  • 37 qt. capacity
  • Wide 7.7 to 66 lb. batch range
  • High torque industrial motor
  • Chain overhead drive
  • Dual-belt final drive
  • Stainless food-contact parts

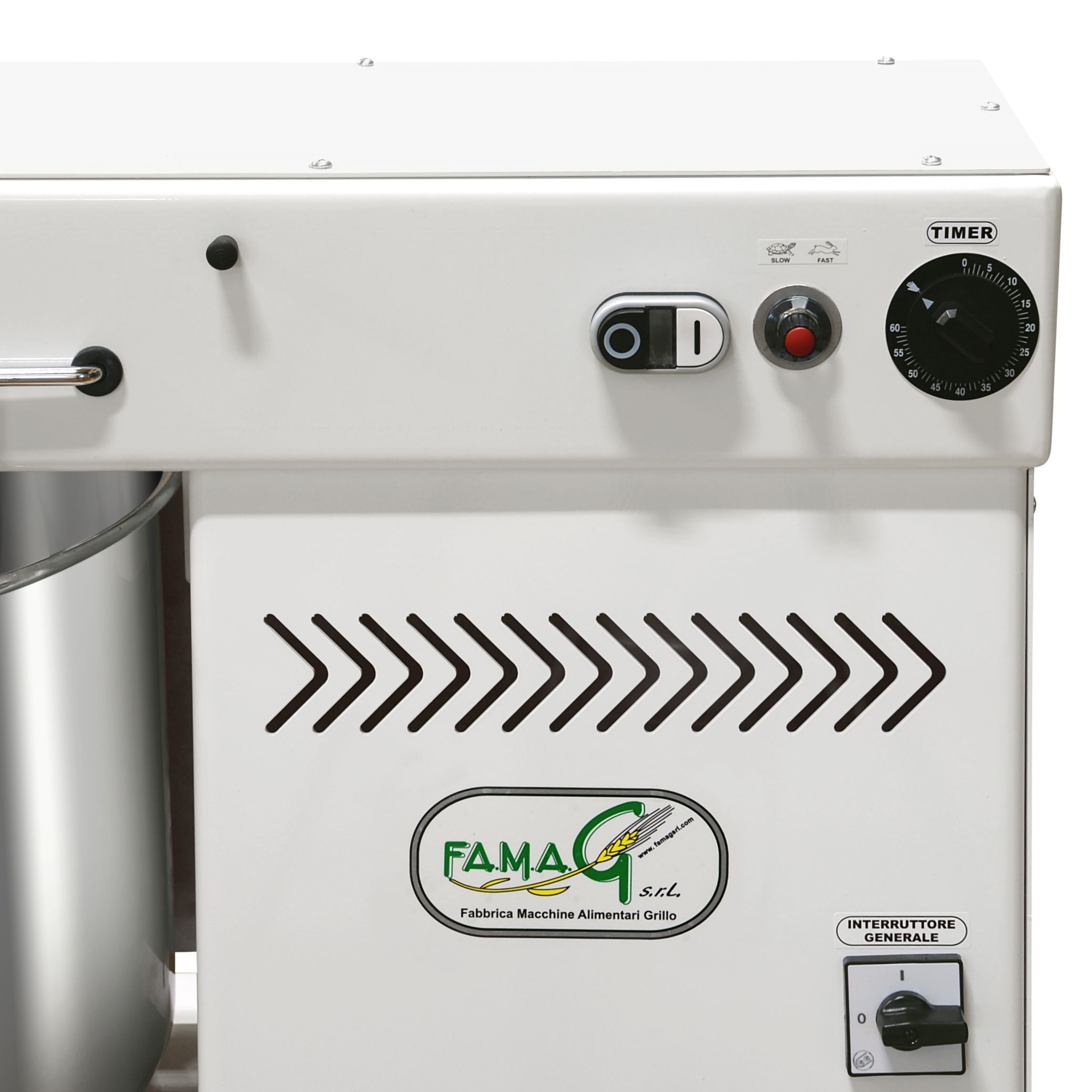

  • Infinite variable speed
  • 1 hour timer
  • Durable powder coat finishes
  • Quiet operation
  • Made in Italy

Description

Famag IM-30 Spiral Dough Mixer

Prices of many products are under strong inflationary pressures currently, and Famag mixers are no exception. Famag has had to increase wholesale costs, and the cost of shipping each 40’ shipping container from Europe has increased from less than $5800 at the start of this year to over $17,000 currently, plus new storage costs incurred due to port congestion. In addition, Famag recently warned us that the supply of mixers will be reduced between now and the end of the year due to Covid-related supply chain disruption, even aside from any new closures this fall/winter. The bottom line is that Famag mixers are lower priced and more available now than they are likely to be in the future.

For the last eighteen Covid-crazed months, some returned products have piled up—including a number of Famag mixers. They’ve been carefully checked out, come with full warranties, and they’re priced hundreds of dollars off! If you’re interested, please ask one of our customer service reps for all of the details, including photos!

Italian-made Famag spiral mixers are world renowned for strength, quality, and outstanding baking results. Now they’re available in the U.S. for the first time, with industrial-duty motors designed specifically for U.S. voltage. As Famag's exclusive importer, Pleasant Hill Grain is proud to offer these high performance mixers!

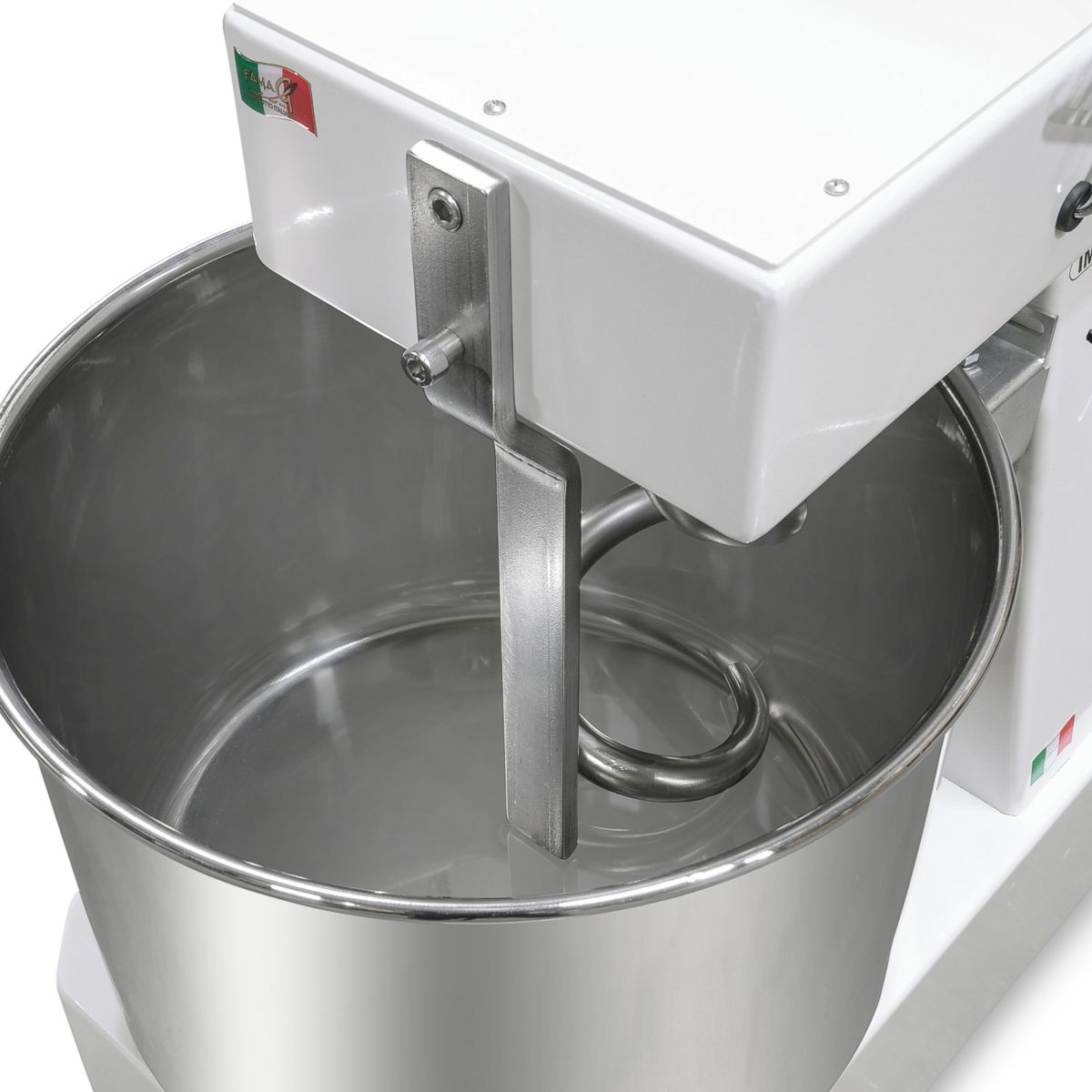

Engineered expressly for ideal dough-mixing and kneading results, Famag spiral mixers feature a spiral agitator that remains stationary while the bowl rotates, bringing the dough to the stainless steel dough hook with each revolution. This action is exceptionally thorough and uniform, while avoiding both overworking and overheating of the dough. The spiral dough hook on the IM-30 operates at 110-270 RPM. Click here for the approximate RPM at each speed.

Thanks to the spiral hook’s action, mixtures that overtax other designs—such as pizza or bagel dough—are handled easily, quickly and efficiently in the Famag spiral dough mixer. Doughs of all kinds, from heavy to high-hydration artisan doughs, come out smooth, silky and perfectly developed.

  • “I've been buying from Pleasant Hill Grain for several years. Extremely efficient process. Never disappointed.”

    – Don D., FL

Famag mixers feature heavy duty chain overhead drive, with a high torque dual-belt final drive. FAG sealed industrial ball bearings are used for exceptionally long life. Construction is robust throughout, as attested to by the mixer’s substantial 220 lb. weight. Epoxy powder coating over a steel cabinet protects the handsome appearance of your Famag mixer.

Famag's IM-30 mixes and kneads up to 66 lbs. (30 kg) of dough at 60% hydration (or more at a higher hydration), but also handles batches as small as 7.7 lbs. (3.5 kg) equally as well. In terms of flour capacity, this is 41.9 lbs. down to 4.8 lbs (19 kg down to 2.2 kg). Capacity of the stainless steel bowl is 37 quarts.

Notes
  1. Heavier doughs can be mixed when the hydration level is higher than the 60% hydration formulas listed above.
  2. The flour used for these capacity tests was 00 durum wheat flour.

Famag Mixer Capacities at 60% Hydration

Flour Water Total Weight
IM-5 6.8 lbs. / 3.1 kg 2 Q / 1.9 L 11 lbs. / 5 kg
IM-8 11 lbs. / 5 kg 3.2 Q / 3 L 17.6 lbs. / 8 kg
IM-10 13.8 lbs. / 6.3 kg 4 Q / 3.8 L 22 lbs. / 10 kg
IM-15 20.7 lbs. / 9.4 kg 5.9 Q / 5.6 L 33 lbs. / 15 kg
IM-20 27.3 lbs. / 12.4 kg 7.8 Q / 7.4 L 44 lbs. / 20 kg
IM-30 41.9 lbs. / 19 kg 12 Q / 11.4 L 66.1 lbs. / 30 kg
IM-40 55.1 lbs. / 25 kg 15.8 Q / 15 L 88.2 lbs. / 40 kg
IM-50 69.4 lbs. / 31.5 kg 20 Q / 18.9 L 110.2 lbs. / 50 kg

Whether you’re a commercial user or a dedicated home enthusiast who appreciates the worth of old-world quality, Famag offers exceptional value as well as performance. While being competitively priced, Famag mixers are built by a company committed to higher standards—a commitment backed by a one year warranty covering both home and commercial use.

As a gourmet chef at home, or at work, the Famag spiral dough mixer will quickly take its place as your trusted culinary partner. Order yours today and see just how much you’ve been missing!

The Famag IM-30 spiral dough mixers are available in Arctic White, Dark Silver, and Sparkle Silver. Dark Silver has a pearl finish that has a subtle pearlescent luster. Sparkle Silver has a brilliant sparkle to it that catches light more than the pearlescent colors will. Arctic White has a glossy finish.

Famag IM-30 Spiral Mixer Colors

Arctic White Famag mixer Sparkle Silver Famag IM-10S Steel
Arctic White Sparkle Silver Dark Silver
For more details see the specs tab, above.

Famag IM-30 Spiral Mixer

Bowl Capacity 37 Q (35 L)
Bowl Dimensions (Inside dia. x H) 15.7" x 11.4"
Dough Capacity 7.7 to 66 lbs. (3.3 to 30 kg)
Flour Capacity 4.8 to 41.9 lbs. (2.2 to 19 kg)
Water Capacity 1.2 to 12Q (1.1 to 11.4L)
Industrial Motor 230V, 2200W, 1PH
Dimensions: (W x D x H) 34" x 19.2" x 30.7"
Weight 220 lbs.
Lowest Speed Hook 110 RPM, Bowl 12.2 RPM
Highest Speed Hook 270 RPM, Bowl 30 RPM
Speed Control Infinitely variable
Timers 1
Max. Timer Setting 60 minutes
Kneading Head Lifts Up No
Removable Bowl No
Warranty 1 year home or commercial

Compare Spiral Dough Mixers

Click to see our spiral dough mixer comparison table .

The Famag IM-30 kneads up to 66 lbs. dough, making it an ideal mixer for small bakeries making bread and pizza!

Did we forget something? If you need more information about this product, please tell us what else you'd like to know with a quick email or live chat!

Specs

Select product option(s) from the drop-down menu at top of page to see item-specific specifications here.

Manufacturer Part Number IM-30
Brand Famag
Width 19.2"
Depth Facing control panel, w/bowl: 34"
Height 30.7"
Product Weight (lbs.) 220 lb.
Bowl Material Stainless steel
Capacity (volume) 37 qt.
Wheels Yes
Speeds Variable
RPM Slowest: Hook 90, Bowl 10 / Top speed: Hook 240, Bowl 24
Horsepower 3 HP
Volts AC 230
Watts 2200
Hz 60
Phase 1
Cord Length 70"
Cord-End Plug 20 Amp (NEMA 6-20P)
Origin Imported
Commercial Warranty Yes
Warranty Length 1 year home or commercial
Freight Shipped Yes

Use & Care

Famag professional dough mixers require periodic inspection and adjustments of drive belt and chain tension. Details are provided in the manual.
