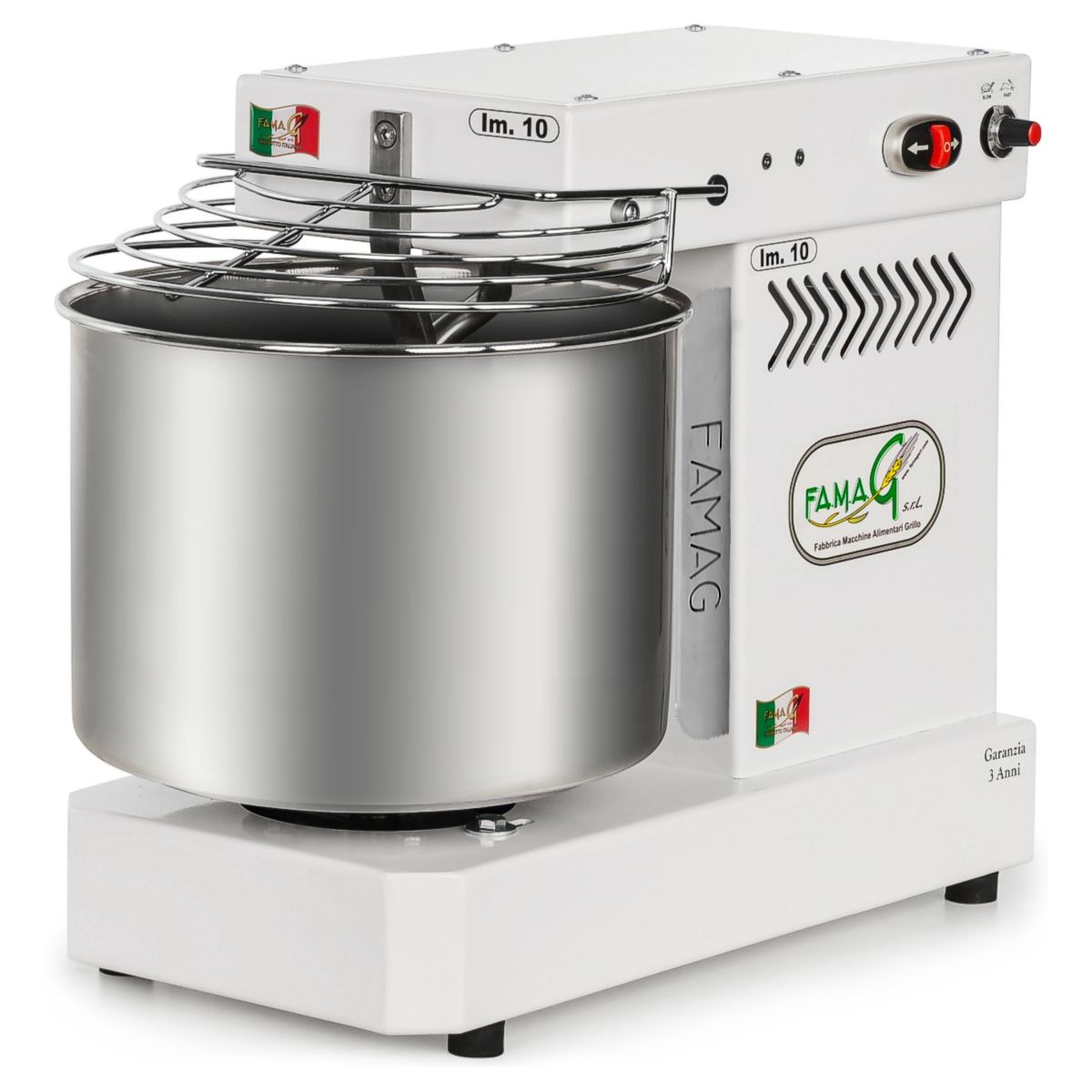

Clearance: Famag IM-10 Mixer w/Fixed Head, Arctic White

Clearance: Famag IM-10 Mixer w/Fixed Head, Arctic White

Note: The product images on this page are of a new item, with the exception of any images marked “Clearance item”.

Italian-made Famag spiral dough mixers are world renowned for strength, quality, and outstanding baking results. Now they’re available in the U.S. for the first time, with industrial-duty motors designed specifically for U.S. voltage. As Famag's exclusive importer, Pleasant Hill Grain is proud to offer these high performance bread mixers!

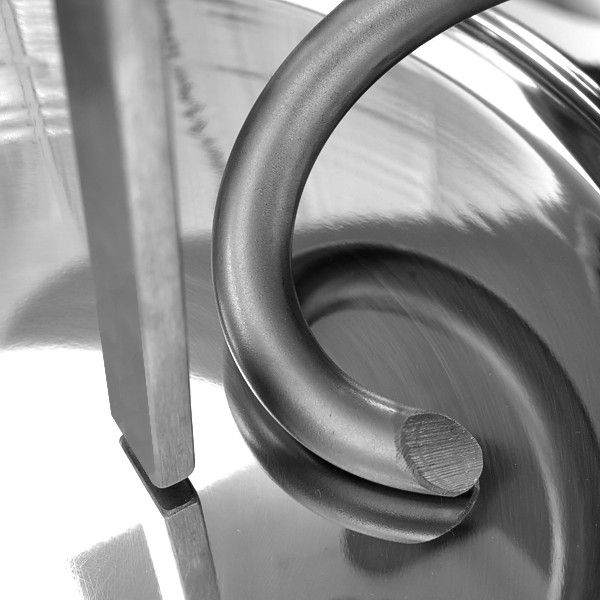

Engineered expressly for ideal dough-mixing and kneading results, Famag spiral mixers feature a spiral agitator that remains stationary while the bowl rotates, bringing the dough to the stainless steel dough hook with each revolution. An integrated offset breaker bar ensures ideal metering of the dough into the spiral hook. This action is exceptionally thorough and uniform, while avoiding both overworking and overheating of the dough. The spiral dough hook on the IM-10 operates at 80-240 RPM. Click here for the approximate RPM at each speed.

Famag IM-10 Model Comparison
Model	Tilting Head	Removable Bowl	Spiral Hook Speed Range	Ratio of Bowl to Dough Hook RPM	How to order
IM-10			80-240 RPM	1:10	Above on this page.
IM-10S			80-240 RPM	1:10	Above on this page.
IM-10 HH			80-300 RPM	1:12-13	Call or email to place special order.
IM-10S HH			80-300 RPM	1:12-13	Online here.

Tilting or Fixed Head

The Famag IM-10 mixer is available with either a tilting head that features a high lift drive and lift assist, or with a fixed head. The model with the fixed head is the IM-10, and the model with the tilting head and removeable bowl is the IM-10S. The bowl is removable on the mixer with a tilting head, and is not removable on the mixer with a fixed head.

If you're mixing high hydration doughs we recommend you purchase the tilting head/removable bowl mixer so it's easier to remove the dough from the bowl, and to clean the bowl. It's easy to remove low hydration dough from the fixed head mixer than it is to remove high hdyration dough, and cleaning the bowl after mixing low hydration dough is easily done with the bowl attached to the mixer.

The tilting head mixer is available in all the color options. The fixed head mixer is currently available in Arctic White, Ruby, and Dark Silver (we may add more colors in the future).

HIGH HYDRATION OR HEAVY DOUGH

Thanks to the spiral hook’s action, mixtures that overtax other designs—such as pizza or bagel dough—are handled easily, quickly and efficiently in the Famag spiral dough mixer. Doughs of all kinds, from heavy to high-hydration artisan doughs, come out smooth, silky and perfectly developed. We now offer the new HH (high hydration) IM-10S mixer with a special sprocket that allows the mixer to run up to 300 RPM; this version is designed specifically for mixing dough that's above 75% hydration.

Famag dough mixers feature heavy duty chain overhead drive, with a high torque dual-belt final drive. FAG sealed industrial ball bearings are used for exceptionally long life. Construction is robust throughout, as attested to by the mixer’s substantial 81.5 lb. weight. Epoxy powder coating over a steel cabinet protects the handsome appearance of your Famag bread mixer.

SUPER CAPACITY RANGE

Famag's IM-10 mixes and kneads up to 22 lbs. (10 kg) of dough at 60% hydration (or more at a higher hydration), but also handles batches as small as 3.3 lbs. (1.5 kg) equally as well. In terms of flour capacity, this is 13.8 lbs. (6.3 kg) down to 2.2 lbs (1 kg). Capacity of the stainless steel bowl is 14 quarts. Unlike inferior designs, the kneading arm of the Famag lifts high for bowl access and removal, and provides lift-assist.

FAMAG = UNPARALLELED VALUE

Whether you’re a commercial user in a bakery or a dedicated home enthusiast who appreciates the worth of old-world quality, Famag offers exceptional value as well as performance. While being competitively priced, Famag dough mixers are built by a company committed to higher standards—a commitment backed by a three year warranty covering both home and commercial use.

As a gourmet chef at home, or at work, the Famag spiral dough mixer will quickly take its place as your trusted culinary partner. Order yours today and see just how much you’ve been missing!

Colors

Famag spiral dough mixers are available in a wide selection of colors. Dark Silver, Marina and Emerald are pearl finishes that have a subtle pearlescent luster. Sparkle Silver has a brilliant sparkle to it that catches light more than the pearlescent colors will. Arctic White, Maraschino, and Ruby have a glossy finish. Galaxy sparkles in gold, red, blue, and green over a black background. Because of the unique characteristics of the Galaxy color, 3” x 6” Galaxy color sample cards are available by U.S. mail at a cost of $7 (which includes shipping). This cost is refundable as a credit toward the purchase of any color or model of Famag mixer purchased within 30 days (and you can keep the card).

Famag IM-10 Spiral Mixer Colors
Arctic White	Dark Silver	Galaxy
Sparkle Silver	Ruby	Maraschino
Marina	Emerald

1. Dimensions are measured from facing the control panel.
For more details see the specs tab, above.
Famag IM-10 Variable Speed Mixer
Bowl Capacity	14 Q (13.2 L)
Bowl Dimensions (Inside dia. x H)	11" x 9.25"
Bowl Weight	5.9 lbs.
Dough Capacity	3.3 to 22 lbs. (1.5 to 10 kg)
Flour Capacity	2.2 to 13.8 lbs. (1 to 6.3 kg)
Water Capacity	0.5 to 4Q (0.5 to 3.8L)
Industrial Motor	110V, 400W, 1PH
Dimensions: Head Down (W x D x H)1	21" x 11.75" x 17"
Dimensions: Head Up (W x D x H)1	23" x 11.75" x 28.5"
Base Dimensions (W x D)1	18.75" x 9.5"
Weight	81.5 lbs.
Lowest Speed	Hook 80 RPM, Bowl 8 RPM
Highest Speed	Hook 240 RPM, Bowl 24 RPM
Speed Control	Infinitely variable
Kneading Arm Lifts Up	Optional
Removable Bowl	Optional
Warranty	3 year home, 1 year commercial

The Famag IM-10 kneads up to 22 lbs. of dough, making it an ideal size for a large home use machine, or small bakery mixer. Looking for larger Famag mixers? Check out the IM-40 dough mixer that kneads 84 lbs. (38 kg) dough and IM-50 that kneads up to 110 lbs. (50 kg) dough!

Descriptions of Ratings for Clearance Store Items
Rating	Description (Expanded descriptions in next table)	Minimum Discount	Mechanically Perfect	Standard Return Policy	Full Warranty
R1	Returned. Non-working surfaces have new or nearly new appearance. Working surfaces may have slight wear marks. Very close scrutiny is required to tell that the item isn’t brand new. Packaging may not be perfect.	10%	Yes	Yes	Yes
R2	Returned, nearly-new appearance. Slight to moderate flaws on non-working surfaces, such as a mixer cabinet or lid.	Varies by item	Yes	Yes	Yes
FR	Factory refurbished. Mostly returned items which have been brought fully up to new-equipment performance specs at the factory.	Varies by item	Yes	Yes	No
D	Demonstration items have been operated briefly at Pleasant Hill Grain.	Varies by item	Yes	Yes	Yes
SDB	From new stock; has moderate damage such as a scratch, dent, or paint blemish.	Varies by item	Yes	Yes	Yes
NOS	New old-stock. A brand new item that isn't the newest model.	Varies by item.	Yes	Yes	Varies by item
Additional notes: The ratings are for cosmetic condition only. All Clearance Store merchandise is guaranteed to function perfectly. Items are offered under normal terms of sale: Please review policies before ordering. Some clearance items ship in plain (but carefully boxed) packaging, rather than the manufacturer’s original carton. Important: All clearance items may have been exposed to various allergenic foods. Bottom Line: If you’re a highly detail-oriented person, we recommend sticking to “R1.” But after a week’s use, the only real difference between one of these items and a brand new one will be the money you saved.
