Clearance: ABC Hansen Disc Mill
- Unmatched versatility
- Grinds wet or dry materials
- Steel plate burrs
- Optional stone burrs
- Optional hammer mill attachment
- Optional pin mill attachment
- Fast change between milling heads
- Heavy duty construction
- Compact footprint
Includes carbon steel grinding plates standard
Out of stock ETA is unknown. We aren't accepting preorders at this time. (more info)
Please call to order
View our business hours
Clearance: ABC Hansen Disc Mill
This is an R1 clearance item. Please check the table below to see how we rate our clearance items.
Note: The product images on this page are of a new item, with the exception of any images marked “Clearance item”.

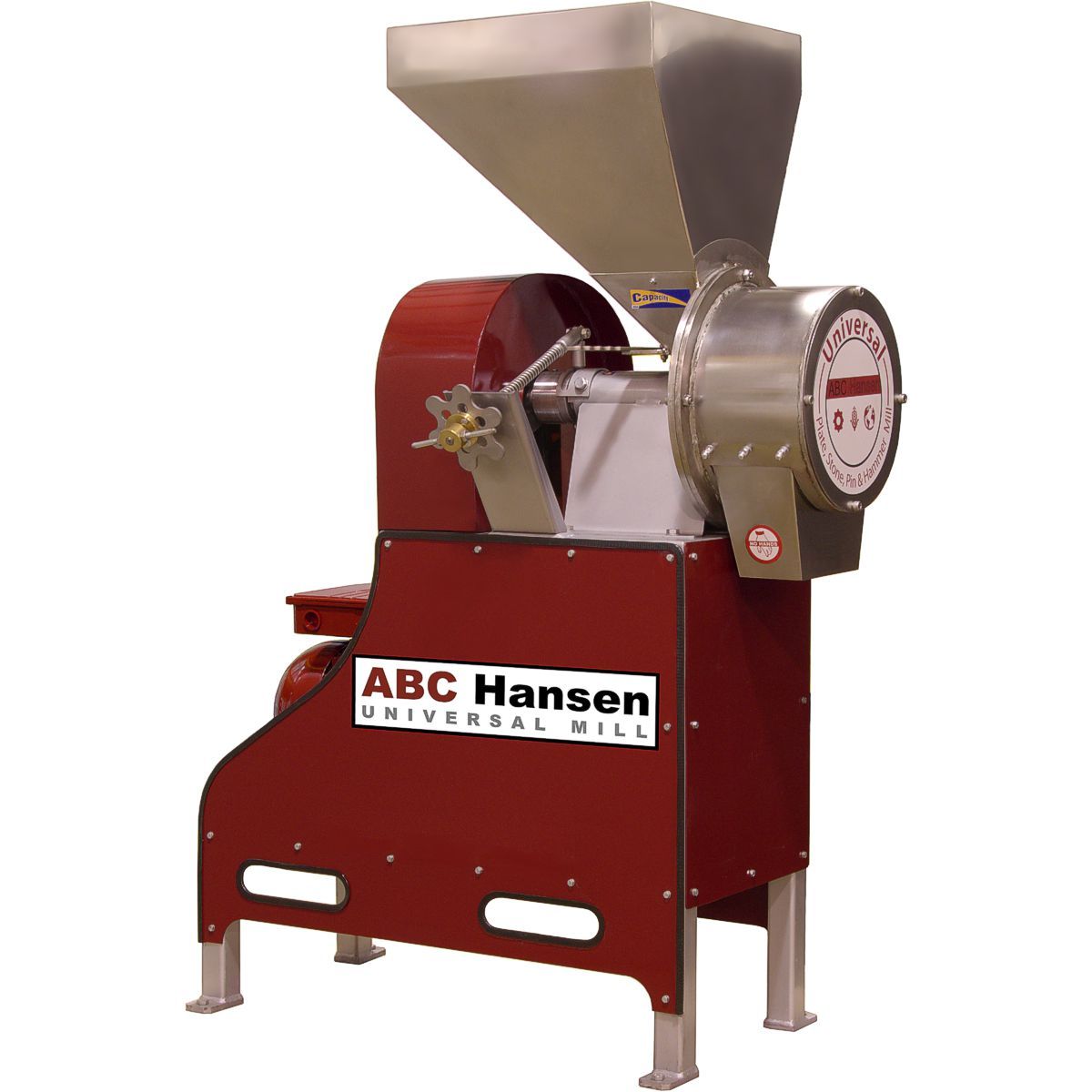

The ABC Hansen Disc Mill can grind virtually any material, from oily products such as peanuts for peanut butter to spices, coffee, grain such as sorghum, maize/corn, wheat, rye, cassava, herbs, sugar, salt, beans... and on and on. Users are grinding cacoa nibs into a chocolate paste and pulverizing a variety of materials from minerals to spices. Maintenance and operating costs are extremely low; one set of plates, which are reversible, will last up to a year in many applications.
In its base configuration, the mill comes equipped as a disc mill (aka disk mill) with 10.5" OD high carbon steel grinding plates. The plates turn at 2,800 rpm's. Optionally, the plate burrs can be exchanged for stone burrs for extremely fine grinding of dry, non-oily materials like dry grains. The mill will also accept a hammer mill grinding head to pulverize extremely hard-grinding materials as diverse as coconut shell and glass, and a pin mill head. Head change is fast, and access for cleanout is excellent. Images and details of the optional milling heads can be seen in the lower section of this page.

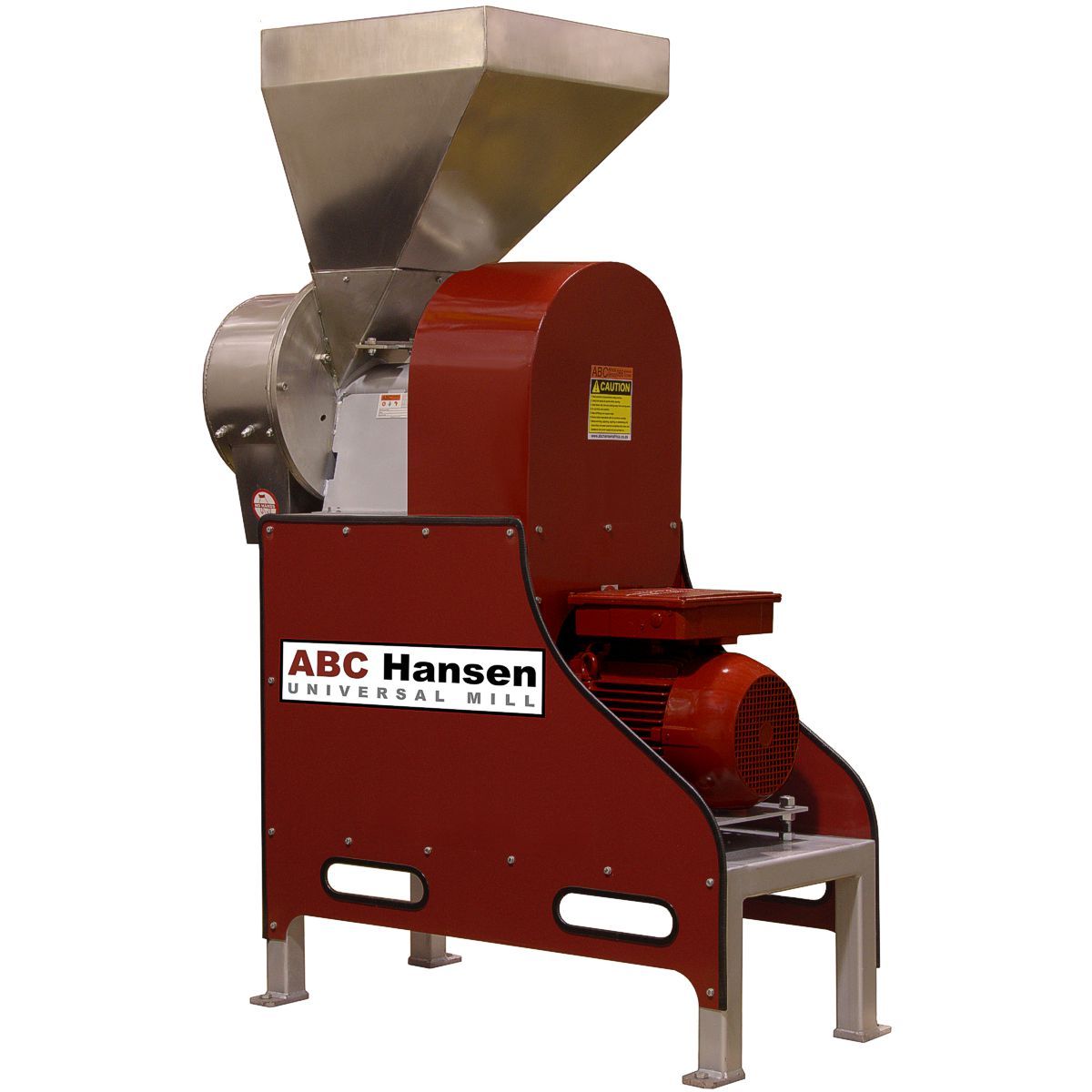

The ABC Hansen disc mill is priced without motor or electric motor starter. We can quote a price with motor and magnetic starter and ship the mill ready to wire-in and operate. Power requirements range from 3HP to operate the steel grinding plates, up to 15HP to operate other grinding heads, or for more power-intensive types of materials or higher throughput rates. The mill can be operated by electric motor or by engine.
The output of the Universal Mill varies with the motor size selected, the type of milling head in use (steel/stone/hammer), and the material being processed. As an example, with a 10 HP motor and using the standard steel grinding plates, corn (maize) is ground to corn meal the brisk rate of 35 lb./minute.
Fully adjustable: An easy-adjusting wheel provides infinite adjustment from fine to extremely coarse
or anywhere between.
ABC Hansen Disc Mill Options |
||||
|
|
|
|
|
| Steel burr plates, standard | Stone burr option | Hammer mill head option | Hammer mill screen option | Pin mill option |
Extreme Grinding Versatility with a Single Mill |
|
|
|
With its array of burr options and quick changeover, no other grinder on the market approaches the combination of versatility and economy that the ABC Hansen Disc Mill offers. The mill can be used to grind, pulverize, break down, crack and granulate a wide range of materials.
Warranty: One year manufacturer's warranty includes parts and labor.
Pricing is FOB. For a shipping quote, please call or e-mail with your city, state and zip code.
Test grinding: Pleasant Hill Grain has extensive milling experience and can make recommendations for a wide range of grinding needs. We can also test mill samples of your materials. Due to the wide range of configuration options, orders for the ABC Disc Mill are taken by phone. Please call 866-467-6123 during business hours (see link above for hours) to consult with a member of our commercial milling team. We would appreciate your business, and look forward to serving you.
Looking for a smaller commercial nut grinder for peanuts, cashews, pistachios and more? See the Olde Tyme commercial nut grinder.
Descriptions of Ratings for Clearance Store Items |
|
Rating |
Description
|
Minimum Discount |
Mechanically Perfect |
Standard Return Policy |
Full
|
|
R1 |
Returned. Non-working surfaces have new or nearly new appearance. Working surfaces may have slight wear marks. Very close scrutiny is required to tell that the item isn’t brand new. Packaging may not be perfect. |
10% |
Yes |
Yes |
Yes |
|
R2 |
Returned, nearly-new appearance. Slight to moderate flaws on non-working surfaces, such as a mixer cabinet or lid. |
Varies by Item |
Yes |
Yes |
Yes |
|
FR |
Factory refurbished. Mostly returned items which have been brought fully up to new-equipment performance specs at the factory. |
Varies by Item |
Yes |
Yes |
No |
|
D |
Demonstration items have been operated briefly at Pleasant Hill Grain. |
Varies by Item |
Yes |
Yes |
Yes |
|
SDB |
From new stock; has moderate damage such as a scratch, dent, or paint blemish. |
Varies by Item |
Yes |
Yes |
Yes |
|
NOS |
New old-stock. A brand new item that isn't the newest model. |
Varies by Item |
Yes |
Yes |
Varies by Item |
|
Additional notes:
Bottom Line: If you’re a highly detail-oriented person, we recommend sticking to “R1.” But after a week’s use, the only real difference between one of these items and a brand new one will be the money you saved. |
|||||
Clearance ID:
Specs
Shipping
Accessories for this product:
This seed hopper may be used in place of the standard hopper for the ABC Hansen Universal Mill. The seed hopper is designed to contain very small seeds (even as small as teff) and has a 1.75" circular opening at the bottom with a swing cover to accurately control the feed rate of small seeds.
In stock Usually ships in 1-3 business days.
The ABC Hansen pin milling attachment consists two plates, one stationary and one rotating. Both the plates and the pins are made of grade 304 stainless steel. The fixed plate has three rows of pins: 50 pins in the outer row, 43 pins in the middle row and 37 pins in the inner row. The rotating plate also has three rows of pins: 50 pins in the outer row, 33 pins in the middle row and 21 pins in the inner row. Each pin is 0.4" in diameter with an exposed length of 1.25”. The pins are removable and replaceable.
The pin milling attachment operates on the ABC Hansen Universal Mill at either 2,800 or 4,000 rpms. The design and pin placement tolerance allows for small, granulated products like sugar, salt, or dry spices to be milled to a finer powder consistency. No screens are used. Product is fed into the center of the milling heads from the hopper of the Universal Mill. Centrifugal force hurls particles outward where they're impacted by the pins as well as encountering autogenous particle-on-particle impacts, resulting in rapid and efficient particle size reduction in a wide range of brittle or friable materials.
Milling rates will vary. Operating at 2,800 rpms, milling rates will be up to 1,500 pounds per hour with coarser milling results. Operating at 4,000 rpms, milling rates will be up to 1,100 pounds per hour with finer milling results.
Test grinding: Pleasant Hill Grain has extensive milling experience and can make recommendations for a wide range of grinding needs. We can also test-mill samples of your materials. Due to the wide range of configuration options, orders for the ABC Disc Mill are taken by phone. Please call 866-467-6123 during business hours (see link on this page for hours) to consult with a member of our commercial milling team. We would appreciate your business, and look forward to serving you.
In stock Usually ships in 1-3 business days.
This set consists of one inner burr and one outer burr for the ABC Hansen Universal mill. The stone burrs are Danish made composite stones with a magnetite base. They're suitable for milling dry grains and similar materials. Turning at 500 rpm's, the stones provide a cool grind output. Using these burrs, the ABC Hansen mill will produce any texture from very coarse to very fine. The stones measure 11.8125" OD, 2" thick and the center hole is 5.375" ID. Each stone weighs approximately 12 pounds.
In stock Usually ships in 1-3 business days.
The ABC Universal Hammer Mill Attachment contains (6) 12.75” long by 3” wide by ¼” thick “blades” bolted together in an “X” pattern. There are three "X" blades attached to the center bore and each end has two bolt on cutting tips. The entire attachment is 6.5” in depth and the blades are spaced 0.875” apart, center-to-center. The 24 total bolt on cutting tips are made of Bennox steel. The Hammer Mill Attachment turns at 2,800 rpm's. Product is fed into the hammer mill attachment from a stainless steel angled chute mounted on a separate front feed cover on the ABC Hansen milling chamber. This separate milling chamber cover and front feed angled chute is included when you purchase the ABC Universal Hammer Mill Attachment. Choose between one of eight screen sizes (30 mesh to 1/2") screens to determine the output consistency.
In stock Usually ships in 1-3 business days.
Screens for ABC Hansen hammer mill come in stainless steel mesh sizes 30, 20, 18, or 16, or in mild steel sizes 1/8, 1/4, 3/8 or 1/2 inches. Screens are concave shaped. Each screen is 7.5” wide, depth is 5" and 12” long across the chord line, edge to edge on the screen.
